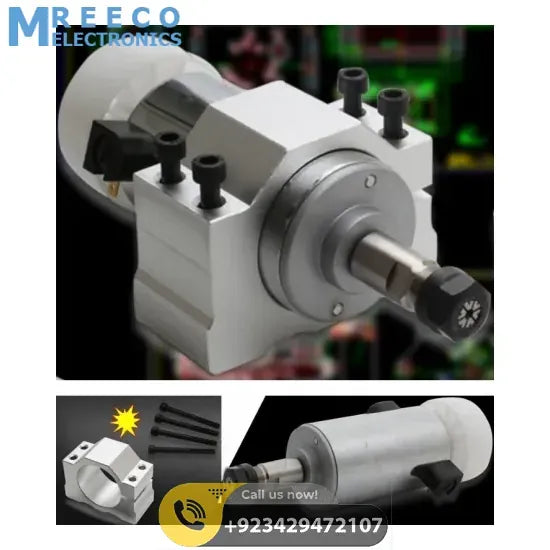

300W Spindle Motor With Mounting Bracket

This is 300W Air cooled spindle motor with bracket mount and screws for CNC Machines. This is a brand new Spindle motor with four mounting screws fitting. Its 48v operated and you may down the voltage using a dc dimmer to control the speed of this motor.

Applications:

• CNC Engraving machines
• Working voltage: 12-48VDC
• Power: 300W
• Current: Maximum current is 6A
• Speed: 3000-12000r / min (12V-3000 turn, 24V-6000 turn, 36V-9000 turn, 48V-12000 rpm)
• Torque: 400mN.m
• Absolute temperature rise: 15 degrees Celsius
• Insulation resistance: greater than 2 megohms
• Insulation Dielectric Strength: 400V
• Diameter: 52mm
• Chuck part length: Arbor part 35mm, (including nut and sandwich 52mm)
• Using a wrench: 13/17 wrench
• Total motor length: 175mm (including clamping parts and motor)
• Spindle weight: 0.8KG
• Spindle radial runout of about 0.01mm.
• Can be used for engraving metal or non-metallic materials.

Package contains

• 1: 300W spindle motor
• 2: Motor mount and screws
