30A CT 30Amp Current Transformer

This 30A CT or 30Amp Current Transformer can test, control, display and record the running operation of an electrical equipment. And it is also used to protect the equipment against possible damage from increase in amperes or amperage.It works in AC circuit with rated voltage value below 660V and AC frequency of 50-60Hz. The product can also be applied to form a complete set of mine transformer.*Product images shown may differ from actual product sold. However, product specifications are correct.

1. Primary current 30A
2. Secondary current 5A

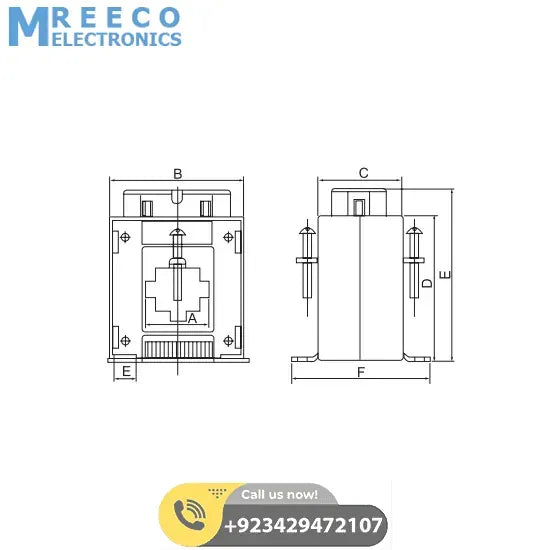

3. Dimensions: 80mm x 61mm x 37mm (H x W x D)
4. Rated Frequency 50/60Hz
5. Maximum operating voltage 660V AC
6. Rated Test Voltage Isolation 3KV AC (1min)
7. Rated shot-time thermal current (Ith) 60In
8. Rated dynamic current (Idyn) 2.5Ith
9. Rated voltage (Um) 0.72KV AC
10. Continuous overload (Id) 1.2In
11. Operating temperature -10°C ~ 80°C
12. Rated security coefficient FSB < 5

General specifications

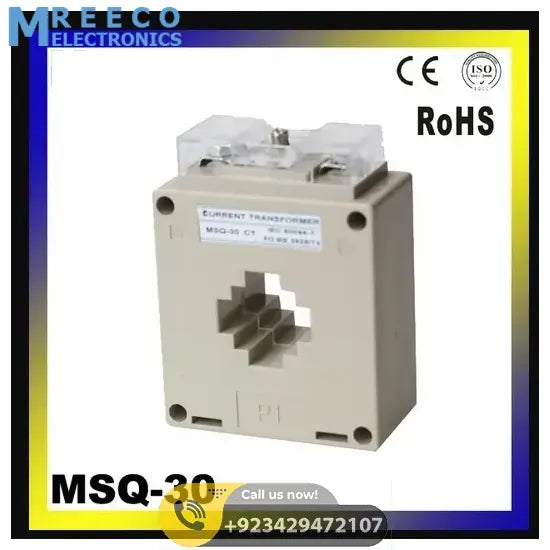

1 x 30A Current Tranformer Module MSQ-30
