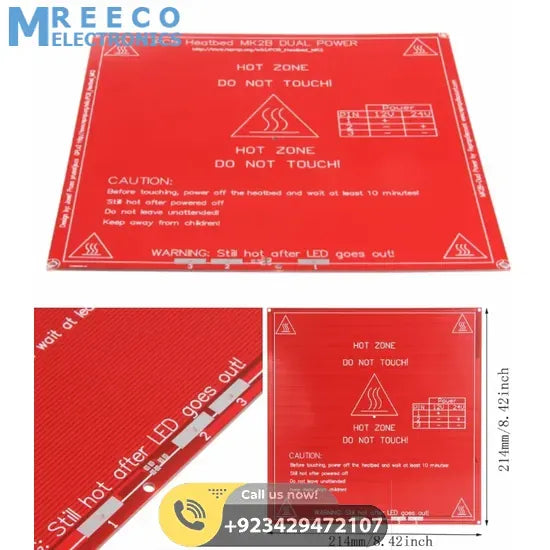

3D printer PCB Heated Bed MK2B 12v and 24v in pakistan

3D Printer heatbed is for RepRap MK2B. Dual Power Supply is a Heated Bed designed for Reprap Prusa and Mendel 3D Printers. It can be used with other 3D Printers too. MK2B is the latest version of the heat bed and features LEDs and 12 / 24V Dual power supply options. This heatbed is etched directly on 35µm copper clad and features uniform even heating and high heat output.

Features of 3d Printer Heated bed:

1. Color: Red
2. Etching: 35um copper
3. Dimensions 214 x 214mm
4. Laminate FR4 1.6+-0.15mm
5. 2 layer, 35μm copper
6. Red Solder Mask – both sides
7. White Silkscreen – both sides
8. Power Input: 12V or 24v
9. Copper plated holes
10. Resistance between 1.0 and 1.2 ohm
