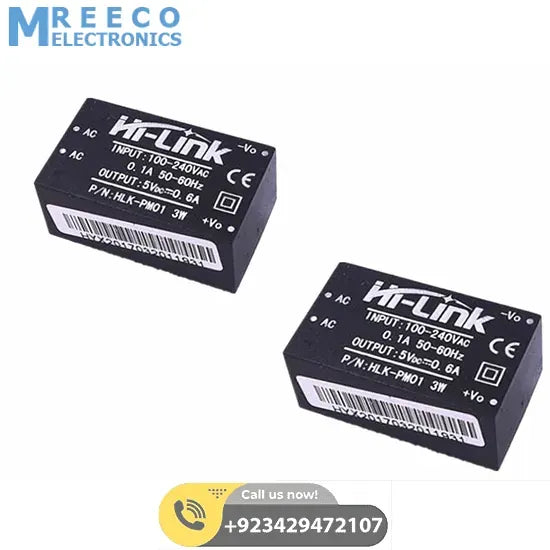

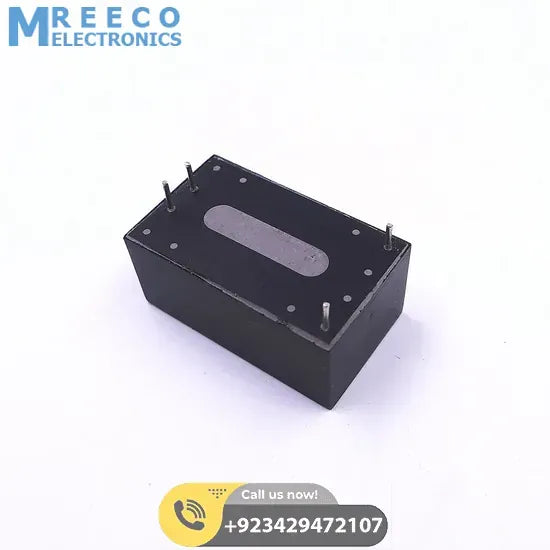

3W HLK-PM01 AC DC 220V To 5V Step Down Power Supply Module Isolated Power Supply Module

Hi-Link latest power supply module, suitable for smart home switch control device, small volume, low current, input voltage range, is the best choice of a smart home. Low ripple and low noise. Output overload short circuit protection function. High efficiency and power density. Low power consumption. 100% load test.

Features:

1. Rated input voltage: 100-240 V AC
2. Input voltage range: 90~264 V AC
3. Maximum input current: ≤ 0.2 A
4. Input inrush current: ≤ 10 A
5. Maximum input voltage: ≤ 270 V AC
6. Input slow start: ≤ 50 mS
7. Input low voltage efficiency: Vin = 110V AC, the output full load ≥ 69 %
8. Input high voltage efficiency: Vin = 220VAc, the output full load ≥ 70 %
9. Long term reliability: MTBF ≥ 100,000 H
10. No-load rated output voltage: 5 ± 0.1 V DC
11. Full load rated output voltage: 5 ± 0.2 V DC
12. Short time maximum output current: ≥ 1000 MA
13. Long time maximum output current: ≥ 600 MA
14. Voltage regulation: ± 0.2%
15. Load Regulation: ± 0.5%
16. Output ripple and noise: (MVp-p) ≤ 50 MV. -- Rated input voltage, output full load. With 20MHz bandwidth oscilloscope, the load side is tested with 10uF and 0.1uF capacitors.

Specifications:

1. Switch machine overshoot: (Rated input voltage, output plus 10% load) ≤ 5% VO
2. Output over-current protection -- Output the maximum load of 150-200% A
3. Output short circuit protection.
4. High efficiency, high power density
5. The product is designed to meet the requirements of EMC and Safety Test

Notes:

1. Temperature rise rule:
2. At room temperature, the power supply capacitor, the main transformer and other internal surface temperature rise cannot exceed 90 ℃;
3. Shell surface temperature rise cannot exceed 60 ℃;

Package Includes:

• 1x HLK-PM01 AC DC 220V to 5V Step-Down Power Supply Module Isolated Power Supply Module
