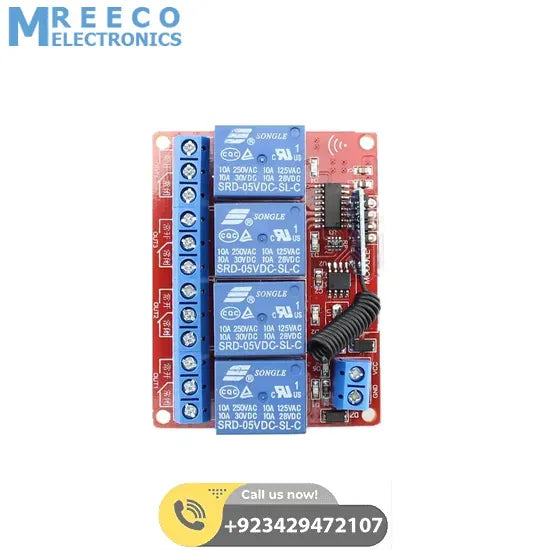

4 Channels RF Remote Control Module DC 12V

This 4 Channels RF wireless Remote Relay Control Module DC 12V (ER-CRF00504C) relay module whose output is passive output, can be controlled by its 5-button RF wireless controller, when the module is powered on. The module must be equipped with a suitable remote control, it also can drive most of household electrical appliances.

4 Channels RF Remote Control Module DC 12v Features:

1. Able to control various appliances and other equipments with large current
2. Equipped with high-current relay
3. Standard interface that can be controlled directly by microcontroller
4. LED indication for Relay output status

Specification:

1. Working voltage: DC 12V
2. Working current: about 220mA
3. Quiescent current: about 6mA
4. MAX Load Voltage:10A 250VAC or 10A 30VDC
5. Module size: 65 x 50 x 20mm
6. Module type: 433m RF wireless receiving
7. Remote control distance: 15-30 meters
8. Work status: Self-locking
9. The work instructions LED: D1-D4(relay), D5(power)

Package list:

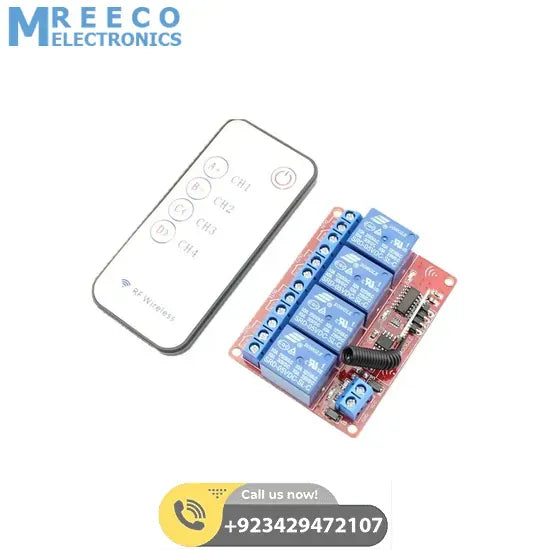

1. 4 Channels RF Remote Control Module DC 12V 1x
2. 5 key RF wireless 1x
