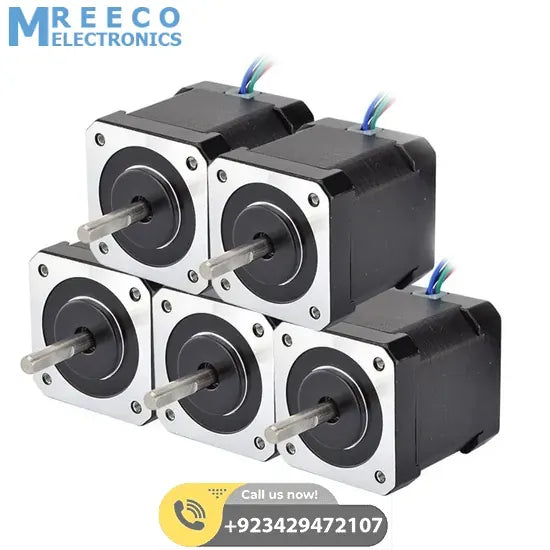

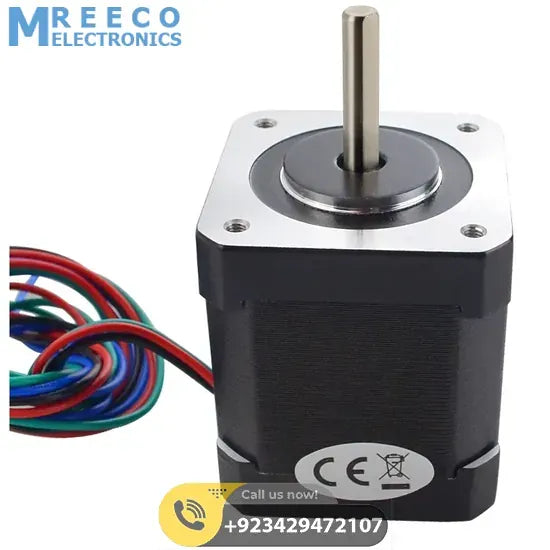

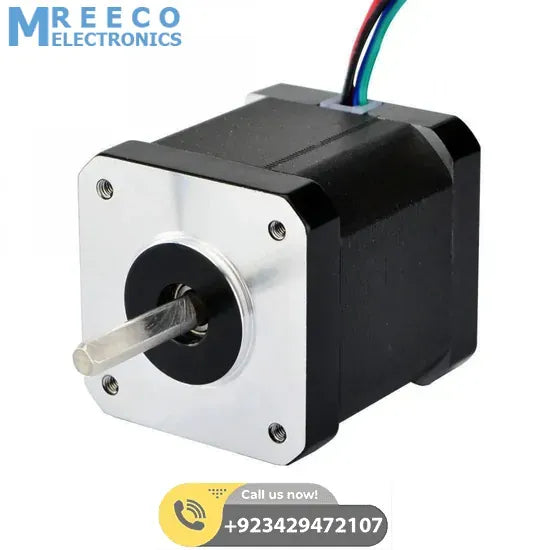

NEMA17 Stepper Motor For 3d Printer And CNC (NEW) 42BYGHW804

This 42BYGHW804 IM42HS60 NEMA17 Stepper Motor For 3D Printer is High-torque stepper motor in size NEMA 17 (42 mm) with 1.8° step angle (full step) with D-Shaft for easy and reliable connection with coupler. 42BYGHW804 Nema17 steppers are a great way to get things moving, especially when positioning and repeatability is a concern. This is a Bipolar motor.

Get42BYGHW804 IM42HS60 NEMA17 Stepper Motor For 3D Printe And CNC in low price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta, Faisalabad, Khuzdar, Abbottabad, Taxila, Rahim Yar Khan, Mardan, Jamshoro, sialkot, Nawabshah, Nowshera, Swabi, Kohat and all over Pakistan. Best Quality 42BYGHW804 IM42HS60 NEMA17 Stepper Motor For 3D Printe And CNC

SPECIFICATIONS:

1. Step Angle: 1.8
2. Holding Torque: 4.8kg.cm
3. Rated Voltage: 3.6Volt
4. Rated Current: 1.2A/Phase
5. Form Factor: NEMA 17
6. Shaft Type D-Shaft
7. Wire Connector JST PH male connector.
8. 2-Phase (4-Wires)
9. Holding Torque: 48N.cm (4800g-cm)
10. Resistance: 3.2Ω/phase
11. Inductance: 5mH/phase
12. Form factor: NEMA 17

Dimensions:

1. 42 x 42 x 47mm
2. Weight: 380g
3. Shaft Diameter: 5mm
4. Shaft Length: 18mm
5. 4 x M3 Holes for mounting base

Connection

A+

A-

B+

B-

Black

Green

Red

Blue

Package Include:

1x Nema17 Stepper Motor
