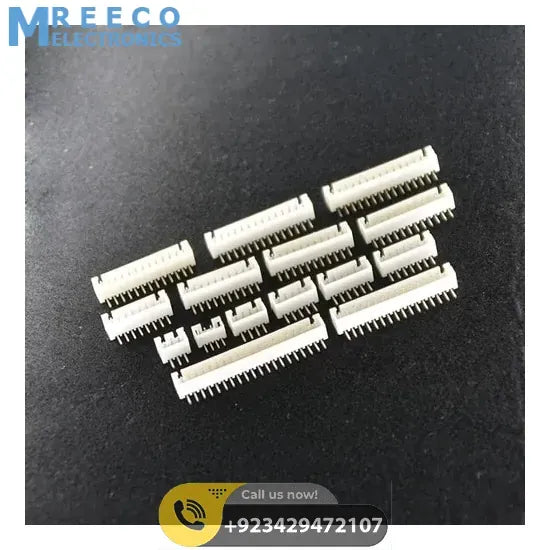

5 Pin 2.5mm JST Xh Style PCB Mount Male Connector

These shrouded, 5-pin JST XH-style male connectors have straight leads and match the female connector on the 5-pin female XH-style cable, and they also work with other many other 0.1″-pitch female connectors, such as our female premium jumper wires. They are sold in packs of four units.

The B2B-XH-A(LF)(SN) is a part of XH series with a mounting height of 9.8 mm and it is applicable to PC Board thickness of 1.6 mm. It has an Operating Temperature range of -25° C to +85° C.

Product Features:

1. Original folded beam contact
2. Box-shaped shrouded header
3. Header with a boss
4. Interchangeability
5. Conforming to the HA terminal
6. Current Rating: 3A AC, DC(AWG #22)
7. Voltage Rating: 250V AC, DC
8. Contact Resistance: Initial value/10mΩ max.
9. Insulation Resistance: 1000 MΩ min
10. Withstanding voltage: 1000V AC/minute
11. Applicable wire: AWG #30 to #22
