5A Dual Motor Drive Module Reverse PWM Speed Regulation Double h Bridge Zk 5ad

This 5A Dual Motor Driver h bridge is DC Motor Speed Controller which is also Pulse Width Modulator. Abbreviation PWM.DC motor governor is a device for adjusting the speed of a DC motor. It has been widely used in DC motor speed regulation, industrial conveyor belt speed regulation, lighting and lighting mediation, computer power supply cooling, DC fan, and so on.

Features Of 5A Dual Motor Drive Module Reverse PWM Speed Regulation Double H Bridge ZK 5AD:

1. High power;
2. .Small size;
3. Low power consumption;
4. Simple operation;
5. Dual Driver;
6. Support independent control for 2 motors;
7. .Support 433MHz remote control(Not included).

Parameters:

1. Product Name: 5A Dual Motor Drive Module
2. Product Number: ZK-5AD
3. Working Voltage: DC 3.0V-14V
4. Input Signal Voltage:DC 2.2V-6.0V
5. Drive Current: 5A
6. Standby Current:10uA
7. Working Temperature range: -20℃~85℃
8. Working Humidity range: 0%-95%RH
9. Size:38*27*18mm
10. .Mounting hole diameter:2mm

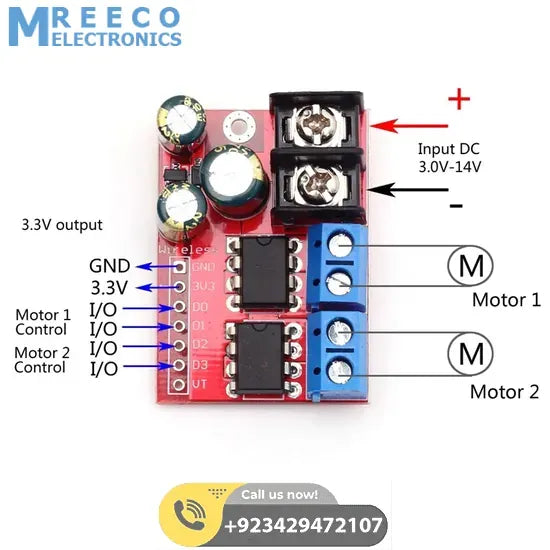

Conventional control method:

1. Module can control 2 DC motors separately.
2. D0 and D1 control Motor 1;
3. D2 and D3 control Motor 2;
4. High level signal is DC 2.2V-6.0V;
5. Low level signal is DC 0.0V-0.7V;
6. D0~D3 can receive control signal from MCU and other signal source;
7. Control logic by Drive Logic Table shown as following in the description picture.

Package Include:

• 1x 5A Dual Motor Drive Module Reverse PWM Speed Regulation Double H Bridge ZK 5AD
