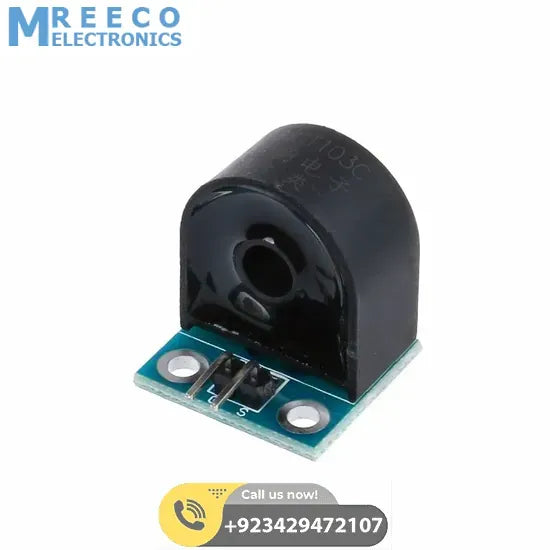

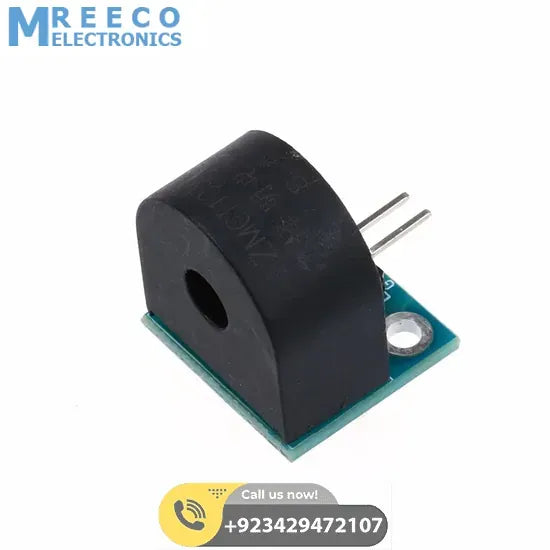

5A Range AC Current Sensor Module

5A range of single-phase ac current sensor module can measure AC currents less than 5A, the corresponding analog output 5A/5mA. It has Onboard sampling resistor and precision microcurrent transformer do accurate sampling for the signal and appropriate compensation, and other functions. The module can measure within 5A current communication, corresponding to output analog quantity can be adjusted.

5A Range AC Current Sensor Module Specifications and features:

1. Dimensions: 28 x 12 x 15 mm(LxWxH).
2. Weight: 4 gm.
3. Onboard
4. Rated input current: 5A
5. Rated output current: 5mA
6. Change: 1000: 1
7. The linear range: 0 ~ 10A (100 ohms)
8. Linearity: 0.2%
9. Precision Rating: 0.2
10. Uses isolation voltage: 3000V Measurement
11. Sealing material: epoxy resin
12. Operating temperature: – 40 Celsius to + 70 Celsius
13. Onboard
14. sampling resistor and micro-precision current transformer
15. Modules 5A can be measured within an alternating current, the analog output corresponding to 5A/5mA

Package Includes:

• 1 x 5A range of single-phase ac current sensor module.
