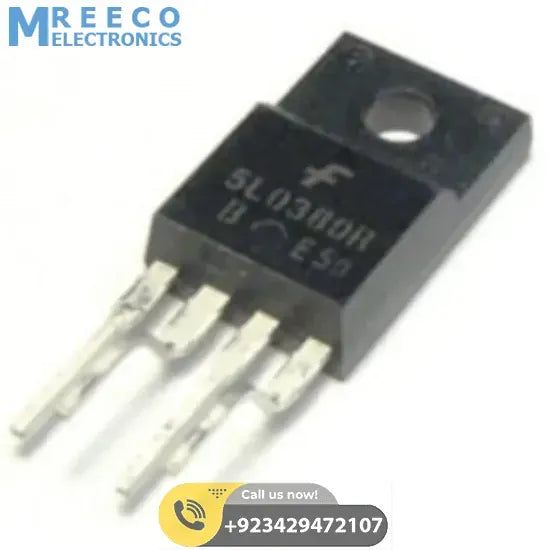

5L0380R IC

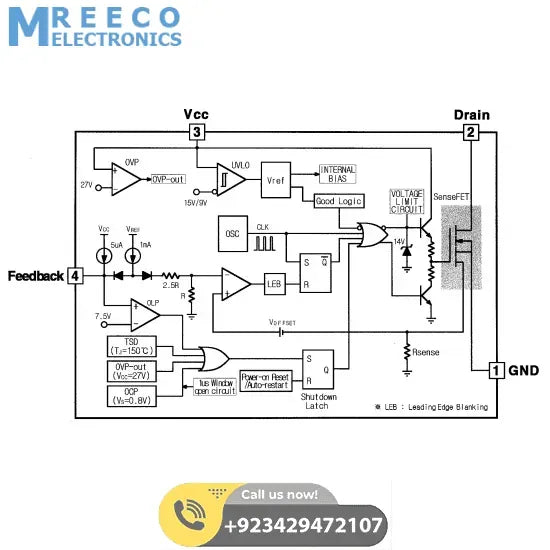

5L0380R IC is part of the renowned FPS product family. The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components. The Fairchild Power Switch(FPS) consists of a high voltage power SenseFET and a current mode PWM IC. Included PWM controller integrates the fixed frequency oscillator, the under voltage lock-out, the leading edge blanking, the optimized gate turn-on/turn-off driver, the thermal shutdown protection, the over voltage protection, and the temperature compensated precision current sources for the loop compensation and the fault protection circuitry.

Compared to a discrete MOSFET and a PWM controller or an RCCsolution, a Fairchild Power Switch(FPS) can reduce the total component count, design size and weight and at the same time increase efficiency, productivity, and system reliability. It has a basic platform well suited for the cost effective design in either a flyback converter or a forward converter.

Features:

1. Precision fixed operating frequency (50kHz)
2. Low start-up current (Typ. 100mA)
3. Pulse by pulse current limiting
4. Over current protection
5. Over voltage protection (Min. 25V)
6. Internal thermal shutdown function
7. Under voltage lockout
8. Internal high voltage sense FET
9. Auto-restart mode

Absolute Maximum Ratings Notes:

1. Tj=25°C to 150°C
2. Repetitive rating: Pulse width limited by maximum junction temperature
3. L=51mH, starting Tj=25°C
4. L=13uH, starting Tj=25°C

DataSheet:

5L0380R Datasheet

Applications:

1. SMPS for VCR, SVR, STB, DVD & DVCD
2. SMPS for Printer, Facsimile & Scanner
3. Adaptor for Camcorder

Package Includes:

• 1x 5L0380R IC
