5mW 650nm Red Cross Line Laser Module Adjustable Focus Laser Diode

5mw Laser Module is Similar to OFL6 but uses a 90-degree line generator disc to generate a Crossline pattern. The laser launch principle and the specificity of the production process determine the laser with ordinary light does not have the characteristics of the three good (monochromatic good, good coherence, good direction) a high (high brightness). Red Cross laser Diode works well with a voltage of 3-6V. Laser Cross Line Generator is suitable for alignment applications such as CNC workpiece positioning. Red cross line laser emitter module can be disassembled and the diffraction optics removed to give a spot focusing module. The use of laser orientation of the good brightness, high grams widely used in various occasions, change the series of laser tube convenient and intuitive

Note: higher voltages do not increase output but may decrease the lifetime

Features Ans Specifications Of Focusable 5mW Red Cross Line Generator Emitter Module:

• Wavelength: 650nm (red)
• Power: 5mW
• Voltage: 3.0 - 5.0V
• Current: 15-20mA (built-in current limiting driver)

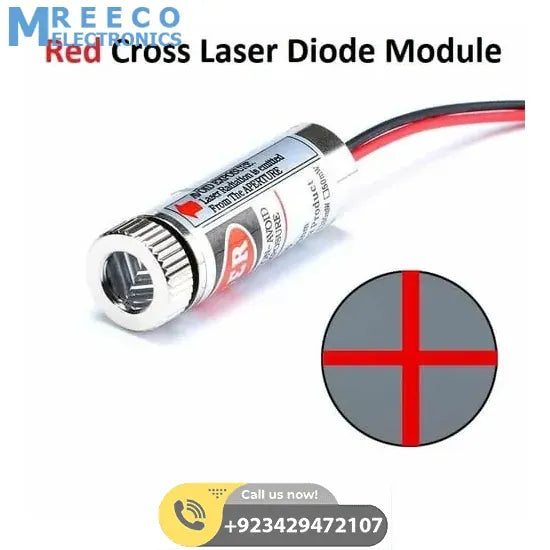

• Pattern: cross Line with a fan angle of 90 degrees
• Focus: Adjustable by a knurled ring
• Dimensions: 12mm diameter x 34mm length with 100mm leads
• Lifetime: >4000hrs

Applications:

1. .It could be used for sight positioning
2. It could be used for laser testing tools
3. It could be used for concentricity positioning
4. It could be used to make signal equipment

Package Include:

• 1 x Adjustable Focus Red Cross Line Laser Module
