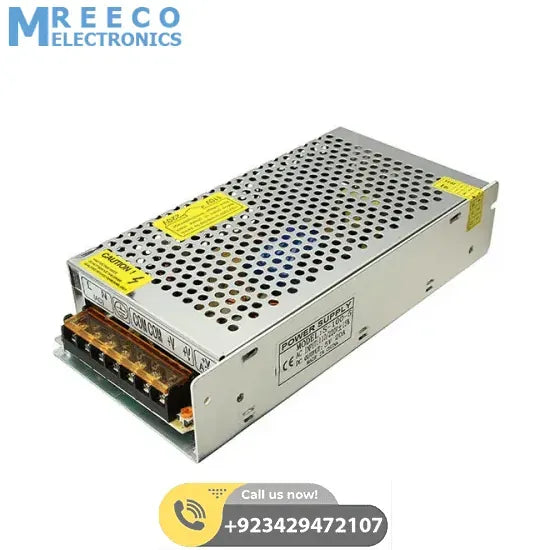

5V 20A 100W AC To DC Power Supply

5V 20Amp Power Supply In Pakistan is AC to DC Power Supply which is suitable for PLC, MICROCONTROLLER, CNC etc. This 24v 20A power supply is very relible for industrial and domestic use.

Product Features:

1. DC Voltage: 5V
2. Rated Current: 20A
3. Current Range: 0-20.5A
4. Rated Power: 100W
5. Ripple & Noise (maximun): 150mV
6. Voltage Tolerance: +/- 2.0%
7. Line Regulation: +/- 0.5%
8. Load Regulation: +/- 0.5%
9. Setup, Rise, Hold Up Time: 200ms, 100ms, 50ms, at full load
10. Voltage Range: 180-264V AC by
11. Frequency Range: 47-63HZ
12. Efficiency: 85%
13. Inrush Current: 13A/115V 25A/230V
14. Leakage Current: <1mA/240VAC
15. Working Temp. : -20℃~60℃
16. Working Humidity : 20%-90% RH

Please Note:

1. This product is suitable for indoor use, non-detachable power shell.
2. External power supply round hole mesh heat vents, in the range of 20 inch within the outlet Do not place other flammable items.
3. Within 2 inch the product range not place other items, to ensure that the powersupply has good thermal environment, to ensure safety.
4. Please accurately calculate the load power, do not overload. When thepower is working, do not touch the case.
5. Do not short-circuit output if no output, please use off one minute re-energized.
6. Before electricity use, carefully verify the power link is correct, rigorous power lines reversed.
7. Professional installation of qualified electrician is highly recommended.
