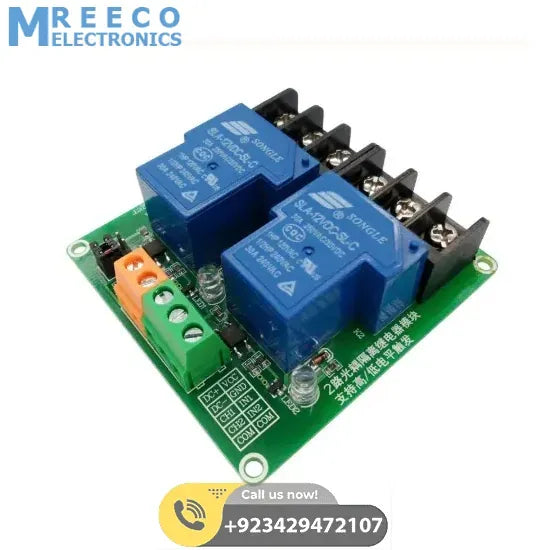

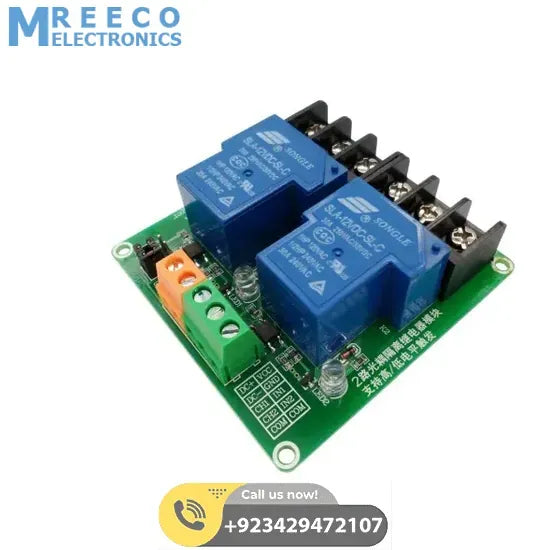

5V 30A 2-channel Relay Module

The relay module is a separate hardware device used for remote device switching. With it, you can remotely control devices over a network or the Internet. This 5V 30A 2-channel relay modules with optocoupler isolation compatible with trigger High and Low trigger for smart home, PLC automation control.

Features:

1. Using FR-4PCB double-sided board
2. With high power relay, controls the load up to 30 A
3. With each optocoupler insulation, anti-interference capability
4. 9500 black terminals, more convenient for high current wiring
5. Each circuit has a relay in the LED indication
6. The modules comply with international safety standards with insulation slots in the control and load areas

Applications:

1. PLC automation equipment control
2. Industrial Systems control
3. Internet of things control
4. smart home control
5. Development Experience of electronic hobbyists and all kinds of circuit modification

Specifications:

1. Supply voltage: 5V
2. Standby Current: 5mA
3. Maximum operating current: 190mA / 80mA / 50mA
4. Shooting mode: low trigger, high trigger
5. Charging voltage: DC 30V or AC 250V
6. Charging current: 30A
7. Relay life: more than 100,000 times

Voltage Rate:

1. 5V low trigger module: 0-2VDC relay on (on), 3-5 VDC relay off (off)
2. 12V low trigger module: 0-5 VDC relay on (on), 6-12 VDC relay off (off)
3. 24V low trip module: 0-12VDC relay on, 13-24VDC relay off.
4. 05V high trip module, 3.3-5VDC relay (on), 0-2.5vdc relay off (off)
5. 12V trigger module: 6-12 VDC relay (on), 0-5 VDC relay off (off)
6. 24V high trip module: 12-24 Vdc relay (on), 0-8.5vdc relay off (off)

Buy 5V 30A 2-channel relay module with optocoupler Isolation at Pakistan's Best Online Shopping Store at cheap price.Here you get a wide range of 2-channel relay modules for Arduino and many other Controller. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.

Package Includes:

1 x 5V 30A 2-channel relay module
