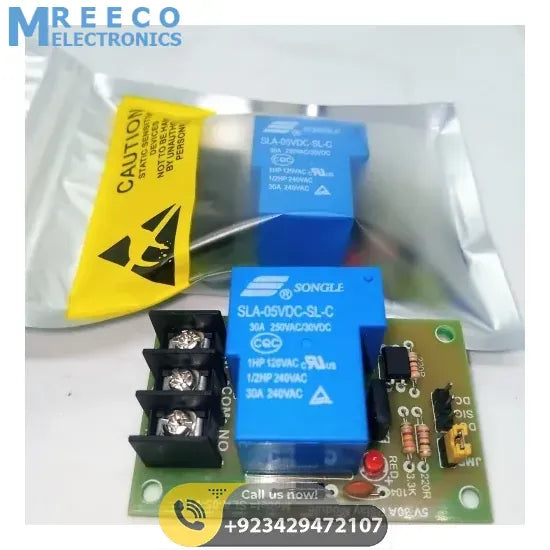

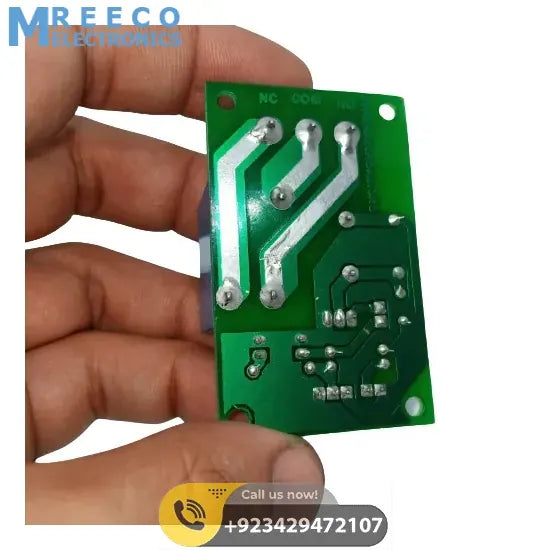

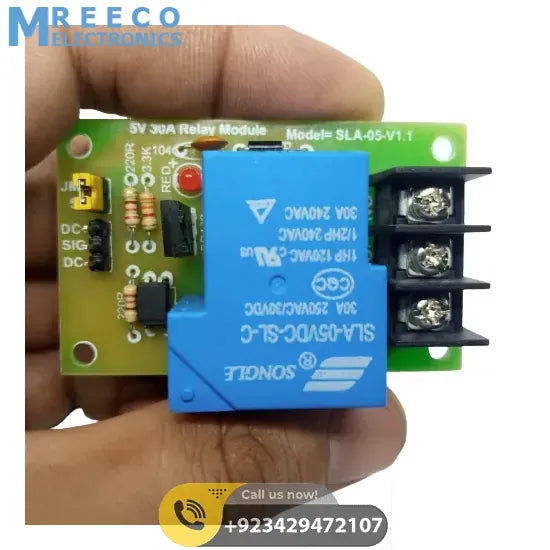

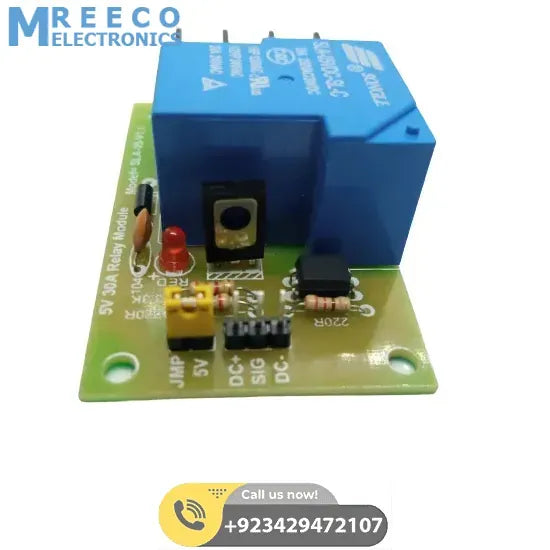

5V 30A Relay Module SLA-05VDC-SL-C

The S5V 30A Relay Module SLA-05VDC-SL-C Module is a convenient board that can be used to control high voltage, high current loads such as motor, solenoid valves, lamps, and AC load. this single-channel 5V 30A Relay Module board with LED indicators can be controlled by microcontrollers such as Arduino, AVR, PIC, ARM any other microcontroller operating at 5V. The user can choose the relay control level, can be a high level off, also can be low level and off. The Single-channel 5V 30A Relay Module contains a limited flow resistance, can directly use the power supply is a negative control, you can also use the MCU I/O control.

Features Of 5V 30A Relay Module SLA-05VDC-SL-C In Pakistan:

1. 3.3v Signal Compatible.
2. 30A relay module, normally open interface maximum load: AC 250V/30A, DV 30V/30A;
3. Optical coupling isolation, driving ability is strong, stable performance;
4. Trigger current is 5mA;
5. Low-Level Trigger Input
6. Relay status indicator light (red);
7. Module Size:60mm*38mm*24mm;
8. Operating Voltage:5V
9. The static current: 5mA
10. Working current: 190mA
11. Trigger current: 2-4mA

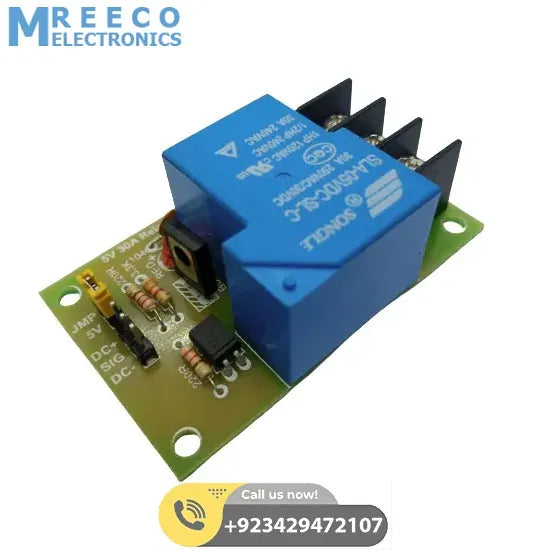

Module Interface Specifications:

1. DC +: DC power supply positive pole
2. DC-: DC power supply negative pole
3. Sig: signal triggering pin
4. JP: Internally connected to DC+
5. 5V: Excitation voltage

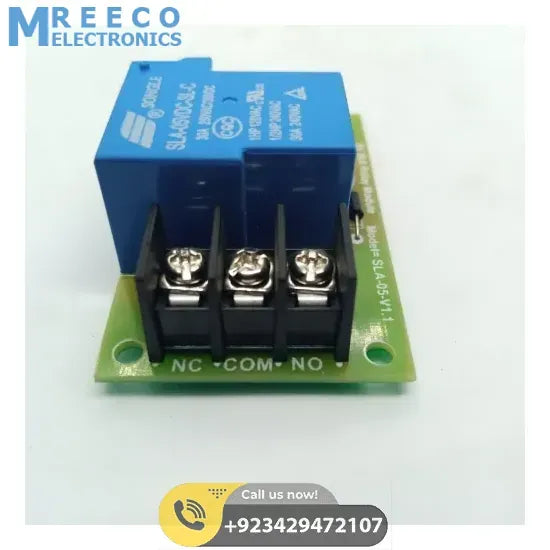

6. Normally closed pin (NC): relay normally closed pin
7. Common pin (COM): relay common pin
8. Normally opened pin (NO): relay normally opened pin

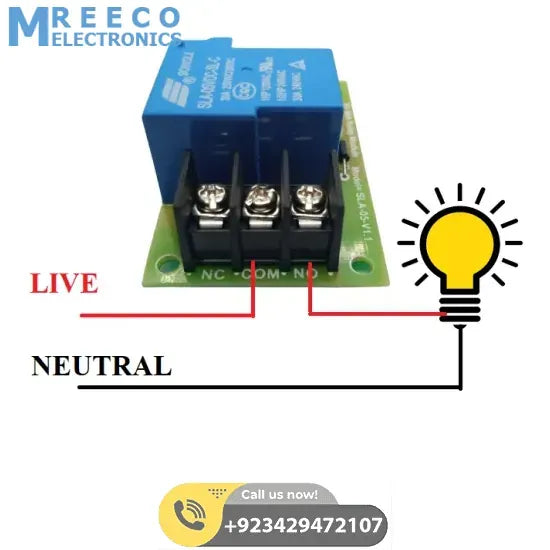

How To Use This Relay Module:

1. Supply negative of 5v to DC-.
2. Supply positive of 5v to DC+
3. Give a low-level(ground) signal to turn on relay or Hight to turn off relay.
4. JP and 5V pin's are already short by jumper.

Buy 5V 30A 1-Channel Relay Module SLA-05VDC-SL-C at Pakistan's Best Online Shopping Store at a cheap price. Here you get a wide range of 1-channel relay board for Arduino and many other controllers. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad, and all over Pakistan.

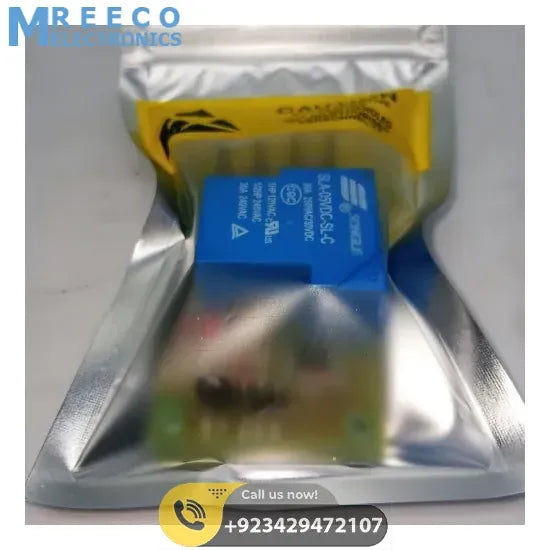

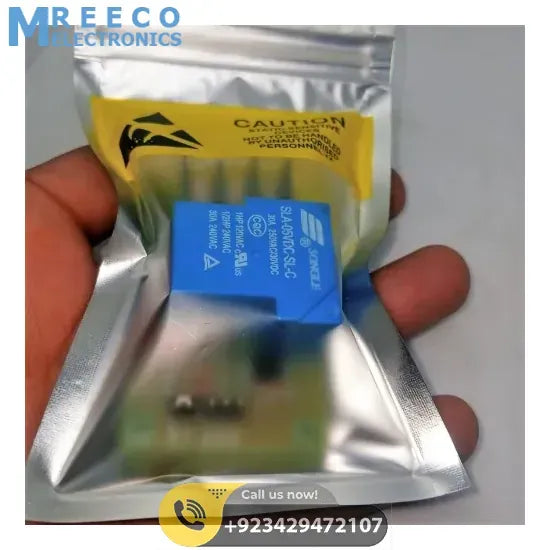

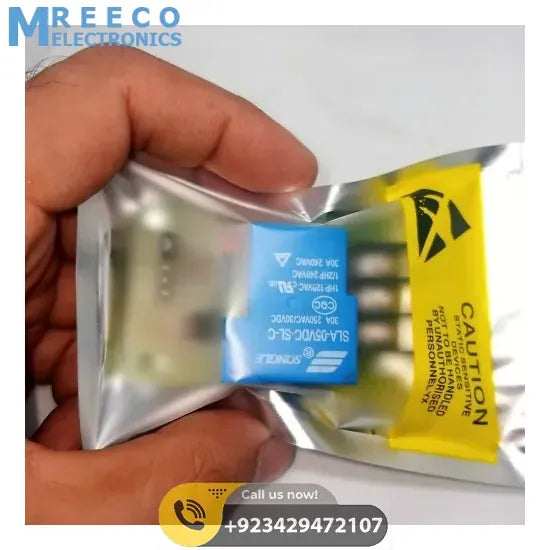

Package Includes:

• 1 x 5V 30A 1-Channel Relay Module SLA-5VDC-SL-C
