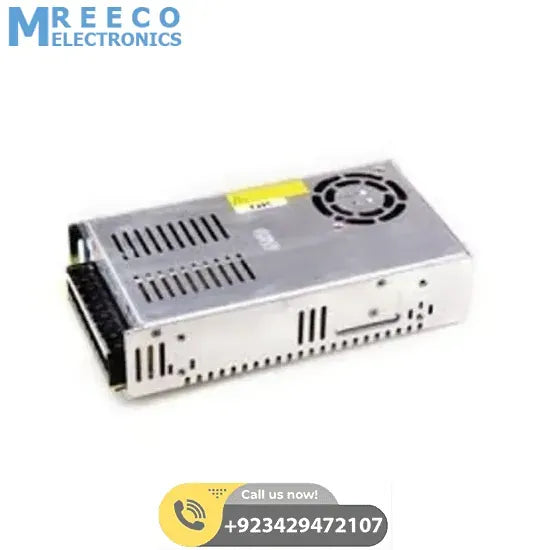

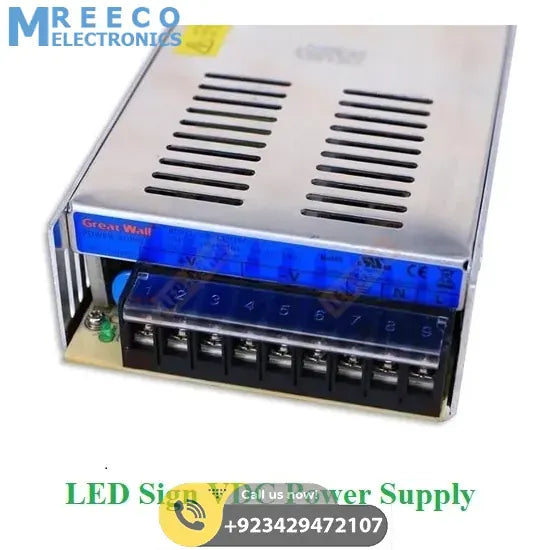

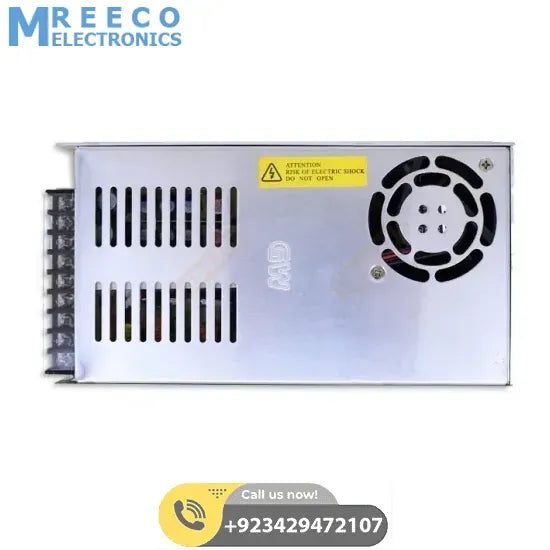

5V 60A 300W LED DC Power Supply ( Used Condition )

Features Of Great Wall 5 Volts 300 Watts LED Panel Power Supply:

• High efficiency and power density.
• Compact size with a metal body.
• Short circuit protection.
• Over-voltage protection.
• Over-current protection.
• Overpower protection.

Specifications Of 60A LED Panel Wall Power Supply GW-LED300-5:

1. Power: 300W
2. Size: 215×125×50mm
3. AC input voltage range: 88-132VAC- 176-264VAC selected by switch
4. Input frequency: 47-63Hz
5. AC inrush current: Cold start，60A per 230VAC
6. DC adjustment range: ±10% rated output voltage
7. Line regulation(full load): ≤0.5%
8. Output overload protection: 110%-150% hiccup mode，auto-recovery
9. Rise, hold up time: 50mS，20mS at full load（typical）
10. Withstand voltage: I/P-O/P, I/P-FG:1.5KVAC, O/P-FG: 0.5KVAC, 1min
11. Working temperature: -10~+40℃@100%，+60℃@60% load
12. Storage temperature: -20℃~+85℃，20%~95%RH(non condensing)
13. Safety standards: Design refer to GB4943，UL60950-1, EN60950-1
14. EMC standards: Design refer to GB9254，EN55022 class A
15. Cooling method: Free air cooling convection

Package Includes:

• 1 x Great Wall LED Sign VDC Power Supply GW-LED300-5
