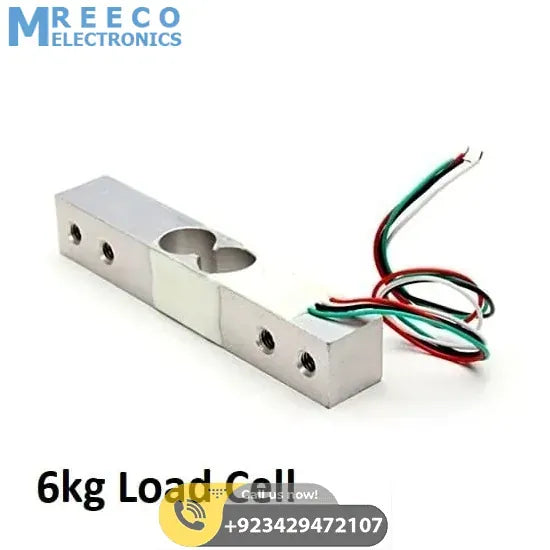

6kg Range Weighing Sensor Load Cell Sensor For Electronic

A load cell is a force sensing module – a carefully designed metal structure, with small elements called strain gauges, mounted in precise locations on the structure. This Single Point Load Sensor is used in small jewelry scales and kitchen scales. It’s mounted by bolting down the end of the load cell where the wires are attached and applying force on the other end in the direction of the arrow. Where the force is applied is not critical, as this load cell measures a shearing effect on the beam, not the bending of the beam. If you mount a small platform on the Weight cell, as would be done on a small scale, this load cell provides accurate readings regardless of the position of the load on the platform. The electrical signal output by the load cell is very small and requires specialized amplification.

It has Four lead wires which can be connected to HX711 A/D Pressure Sensor. It is easy to use with driving voltage 5-10V and produce the output voltage as per the force changes over it.

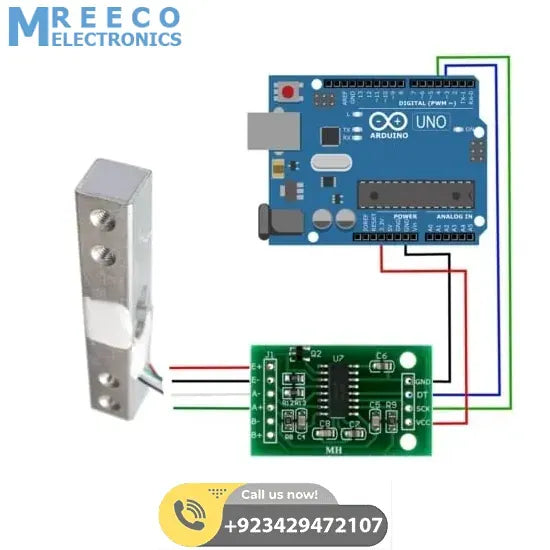

Guide To Connect load sensor with HX711

Features And Specifications of Load Cell 6kg Weight Detection Sensor Straight Bar:

• Rated Load Capacity: 6Kg.
• Rated Output: 1.0mV/V±0.15mV/V.
• Zero Output: ±0.1mV/V.
• Recommended Amplifier: HX711 Module.
• Operating voltage: 5 ~ 10 VDC (MAX 15Vdc).
• Input Impedance: 1115±10%Ω.
• Output Impedance: 1000±10%Ω.
• Material: Aluminum Alloy.
• Operating Temperature Range: -20~60°C

Package Include:

• 1x 6kg Range Weighing Sensor Load Cell Sensor For Electronic
