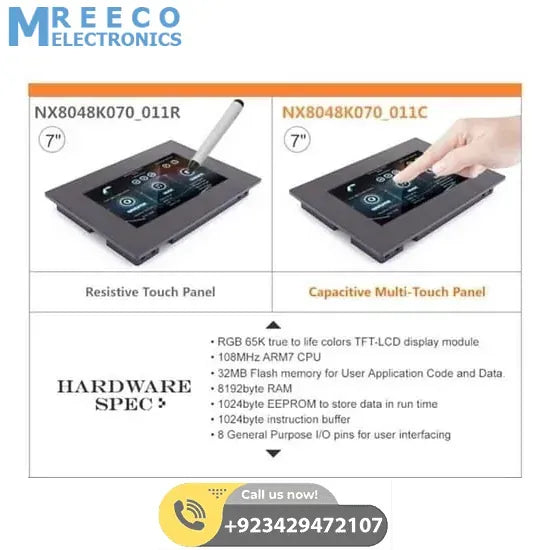

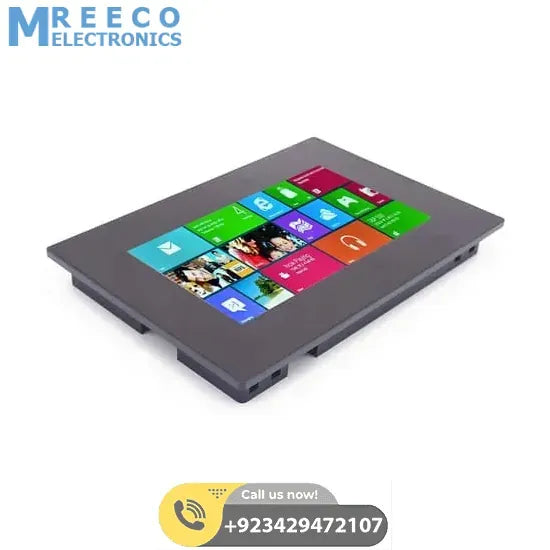

7 Inch Nextion TFT HMI LCD Touchscreen NX8048T070-011R

7 inch Nextion TFT HMI LCD Touchscreen NX8048T070-011R is an enhanced resistive touch display with an enclosure. 7 inch Nextion TFT HMI LCD Touchscreen NX8048T070-011R is an upgraded LCD panel with more powerful features. This is a powerful 7.0" HMI TFT resistive touch display with the enclosure. It comes with 32MB Flash data storage space, 1024 byte EEPROM, 8192 byte RAM, and with GPIO supported. Compare to the basic Nextion displays, the enhanced ones have added some new functions, such as: supporting built-in RTC, supporting save data to Flash, supporting GPIO, larger flash and larger CPU clock. Nextion includes a hardware part (a series of TFT boards) and a software part (the Nextion editor). The Nextion TFT board uses only one serial port to communicate. It lets users avoid the hassle of wiring. We noticed that most engineers spend much time in application development but get unsatisfactory results. As a solution to this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich the interface design. Furthermore, the drag-and-drop function ensures that users spend less time in programming, which will reduce 99% of their development workloads. With the help of this WYSIWYG editor, designing a GUI is a piece of cake. It’s easy to adapt Nextion family HMI to existing projects- users just need to provide it with a UART.

We have also display screens of different sizes like 2.4", 3.2", 5" etc.

Features of 7 inch Nextion TFT HMI LCD Touchscreen NX8048T070-011R:

• Supports built-in RTC
• Supports GPIO

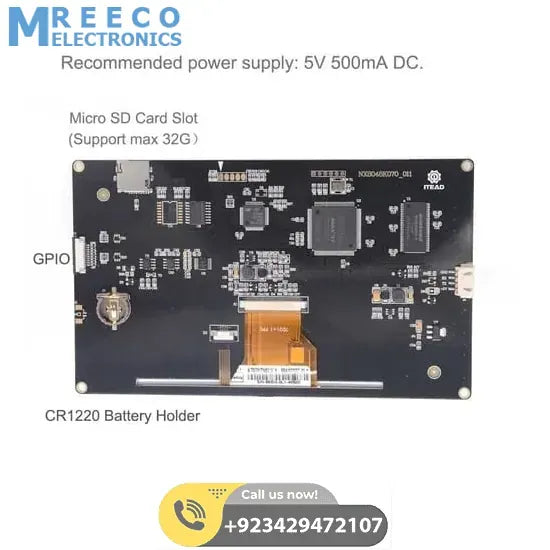

• SD Card interface: support max 32G Micro TF/SD card (FAT32 file format)
• Flash data storage space: 32MB
• EEPROM: 1024 bytes
• RAM: 8192 bytes
• Instruction buffer: 1024 bytes
• Color: 65K (65536) colors
• Resolution: 800×480 pixel
• Adjustable Brightness: 0~230 nit- the interval of adjustment is 1%

Specifications of 7 inch Nextion TFT HMI LCD Touchscreen NX8048T070-011R:

1. Visual Area: 154.08mm(L)×85.92mm(W)
2. Layout size: 181(L)×108(W)×9.3(H)
3. Touch-type: Resistive
4. Backlight: LED
5. Backlight lifetime (Average): >30,000 Hours
6. Net Weight: 268 g
7. Recommended power supply: 5V 2A
8. Certificates: CE/EMC, RoHS (certificates)

Package includes:

• 1× 7.0″ Nextion Enhanced HMI Display

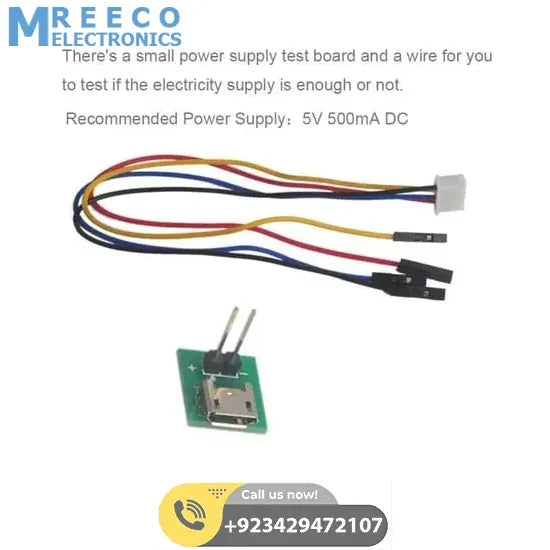

• 1× power supply test board
• 1× 4-pin grove cable
