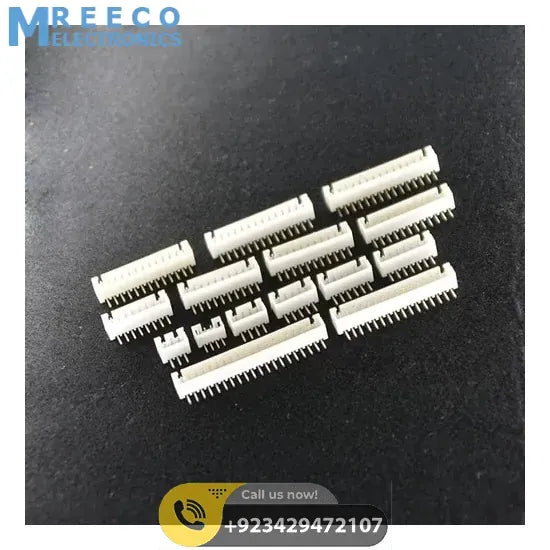

7 Pin 2.5mm JST Xh Style PCB Mount Male Connector in Pakistan

These shrouded, 7-pin JST XH-style male connectors have straight leads and match the female connector on the 7-pin female XH-style cable, and they also work with other many other 0.1″-pitch female connectors, such as our female premium jumper wires. They are sold in packs of four units.

The B2B-XH-A(LF)(SN) is a part of XH series with a mounting height of 9.8 mm and it is applicable to PC Board thickness of 1.6 mm. It has an Operating Temperature range of -25° C to +85° C.

Product Features:

• Original folded beam contact
• Box-shaped shrouded header
• Header with a boss
• Interchangeability
• Conforming to the HA terminal
• Current Rating: 3A AC, DC(AWG #22)
• Voltage Rating: 250V AC, DC
• Contact Resistance: Initial value/10mΩ max.
• Insulation Resistance: 1000 MΩ min
• Withstanding voltage: 1000V AC/minute
• Applicable wire: AWG #30 to #22
