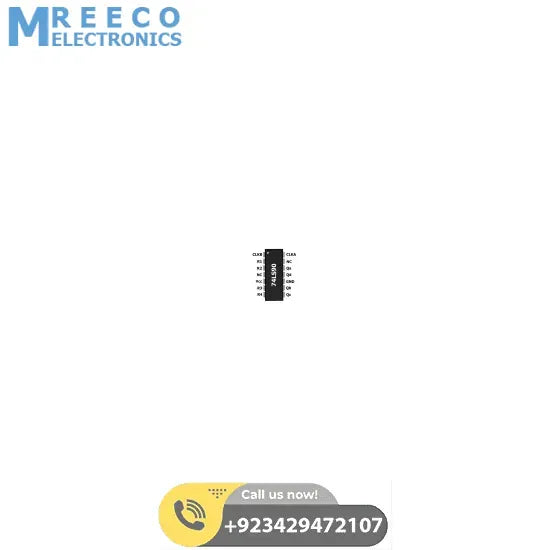

74LS90 IC Decade Counter

The SN54/74LS90, SN54/74LS92 and SN54/74LS93 are high-speed 4-bit ripple type counters partitioned into two sections. Each counter has a divide-by-two section and either a divide-by-five (LS90), divide-by-six (LS92) or divide-by-eight (LS93) section which are triggered by a HIGH-to-LOW transition on the clock inputs. Each section can be used separately or tied together (Q to CP) to form BCD, bi-quinary, modulo-12, or modulo-16 counters. All of the counters have a 2-input gated Master Reset (Clear), and the LS90 also has a 2-input gated Master Set (Preset 9).

Features:

1. Low Power Consumption ...Typically 45 mW
2. High Count Rates ...Typically 42 MHz
3. Choice of Counting Modes . . . BCD, Bi-Quinary, Divide-by-Twelve,Binary
4. Input Clamp Diodes Limit High Speed Termination Effects

Applications:

• Decade counter
• Divide-by-5 counter
• 4-bit binary counter

DataSheet:

74LS90 Decade Counter Datasheet

Package Includes:

• 1x 74LS90 IC
