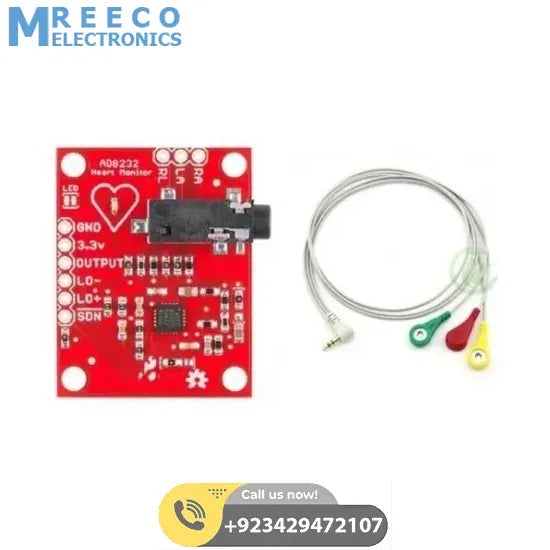

AD8232 Keyes Single Lead Heart Rate Monitor

The AD8232 Single Lead Heart Rate Monitor is a cost-effective board used to measure the electrical activity of the heart. This electrical activity can be charted as an ECG or Electrocardiogram and output as an analog reading. ECGs can be extremely noisy, the AD8232 Single Lead Heart Rate Monitor acts as an op amp to help obtain a clear signal from the PR and QT Intervals easily.

The AD8232 is an integrated signal conditioning block for ECG and other bio-potential measurement applications. It is designed to extract, amplify, and filter small bio-potential signals in the presence of noisy conditions, such as those created by motion or remote electrode placement.

Note:

This product is only made for Prototypes, This product is NOT a medical device and is not intended to be used as such or as an accessory to such nor diagnose or treat any conditions.

Features:

Operating Voltage – 3.3V Analog Output Leads-Off Detection Shutdown Pin LED Indicator 3.5mm Jack for Biomedical Pad Connection

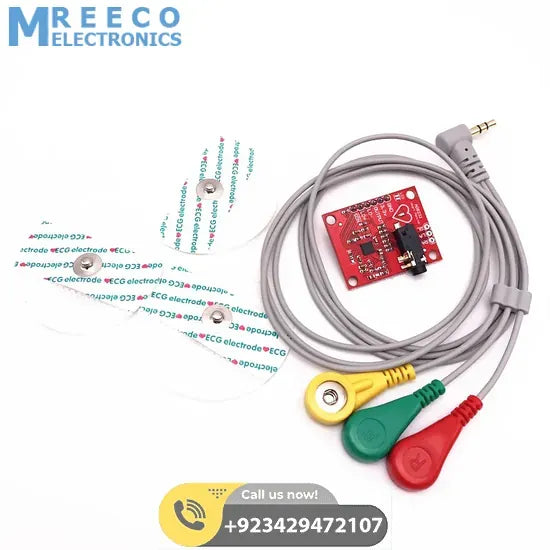

Shipping List:

1. AD8232 Breakout × 1
2. ECG cable × 1
3. Electrode × 3

Documents:

• Schematic
• Eagle Files
• Hookup Guide
• Datasheet (AD8232)
• GitHub (Design Files & Example Code)
• Product Video
