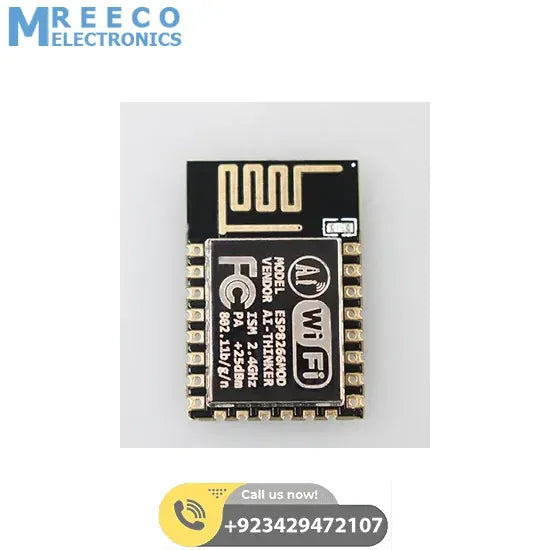

Ai Thinker ESP8266EX ESP-12F Wifi Module - Front View
Ai-Thinker

Ai Thinker ESP8266EX ESP-12F Wifi Module

SKU: 637730969187384254Category: Development Boards
Rs 0

Currently sold out

ESP8266EX ESP-12F Wifi Module has a powerful enough on-board processing and storage capability. ESP8266EX ESP-12F Wifi Module, that allows it to be integrated with the sensors and other application-specific devices th...

Ask about this product on WhatsApp
  • Fast deliveryFree shipping on prepaid orders above Rs. 10,000
  • Secure payment100% secure payments by Meezan Bank
  • SupportMonday to Saturday, 11:00 AM to 8:00 PM
  • ReturnsSee our return and refund policy

Description

ESP8266EX ESP-12F Wifi Module has a powerful enough on-board processing and storage capability. ESP8266EX ESP-12F Wifi Module, that allows it to be integrated with the sensors and other application-specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, which is designed to occupy minimal PCB area. The ESP8266EX supports APSD for VoIP applications and Bluetooth co-existence interfaces, it contains a self-calibrated RF allowing it to work under all operating conditions and requires no external RF parts.

We are also selling other modules like ESP-8285, ESP32 SIM800l GSM module, etc.

Features of ESP8266EX ESP-12F Wifi Module:

  • The smallest 802.11b/g/n Wi-Fi SOC module
  • Low power 32-bit CPU, can also serve as the application processor
  • Up to 160MHz clock speed
  • Built-in 10 bit high precision ADC
  • Supports UART/GPIO/IIC/PWM/ADC
  • SMD-22 package for easy welding
  • Integrated Wi-Fi MAC/BB/RF/PA/LNA
  • Support multiple sleep patterns. Deep sleep current as low as 20uA
  • UART baud rate up to 4Mbps
  • Embedded LWIP protocol stack
  • Supports STA/AP/STA + AP operation mode
  • Support Smart Config/AirKiss technology
  • Supports remote firmware upgrade (FOTA)
  • General AT commands can be used quickly
  • Support for the two development, integration of windows, Linux development environment

Specifications of ESP8266EX ESP-12F Wifi Module:

Module Model ESP-12F Package SMD22 Size 24*16*3(±0.2)mm Certification FCCǃCEǃICǃREACHǃRoHS SPI Flash Default 32Mbit Interface UART/GPIO/ADC/PWM IO Port 9 UART Baud rate Support 300 ~ 4608000 bps ˈDefault 115200 bps Frequency Range 2412 ~ 2484MHz Antenna PCB Antenna

Transmit Power

802.11b: 16±2 dBm (@11Mbps) 802.11g: 14±2 dBm (@54Mbps) 802.11n: 13±2 dBm (@HT20, MCS7)

Receiving Sensitivity

CCK, 1 Mbps : -90dBm CCK, 11 Mbps: -85dBm 6 Mbps (1/2 BPSK): -88dBm 54 Mbps (3/4 64-QAM): -70dBm HT20, MCS7 (65 Mbps, 72.2 Mbps): -67dBm

Power (Typical Values)

Continuous Transmission=>Average˖~71mAˈPeak˖ 500mA Modem Sleep: ~20mA Light Sleep: ~2mA Deep Sleep: ~0.02mA Security WEP/WPA-PSK/WPA2-PSK Power Supply Voltage 3.0V ~ 3.6VˈTypical 3.3VˈCurrent >500mA Operating Temperature -20°C ~ 85°C Storage Environment -40 °C~ 85 °C < 90%RH

Package Includes:

1 x ESP8266EX ESP-12F Wifi Module

Best Online Shopping website for ESP8266EX ESP-12F Wifi Module In Pakistan Here you get the ESP8266EX ESP-12F Wifi Module In Pakistan at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Multan, Quetta, Faisalabad, and all over Pakistan.
