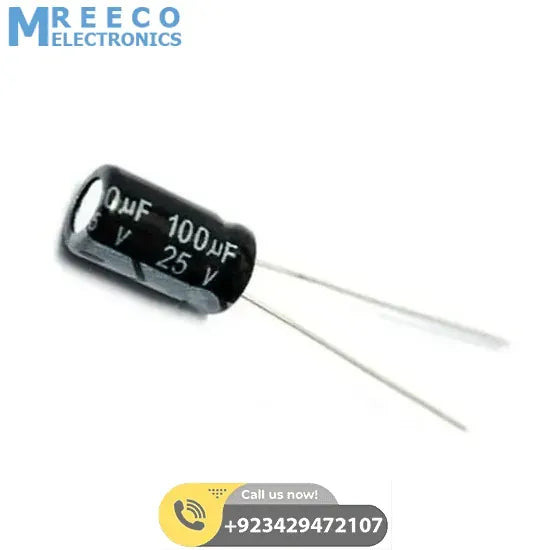

100uF 25V Electrolytic Polar Capacitor

Aluminium 100uF 25V Electrolytic Polar Capacitor is general-purpose and filter capacitor. Aluminium 100uF 25V Electrolytic Polar Capacitor, whose anode electrode (+) is made of a pure aluminium foil with an etched surface. The aluminium forms a very thin insulating layer of aluminium oxide by anodization that acts as the dielectric of the capacitor. A non-solid electrolyte covers the rough surface of the oxide layer, serving in principle as the second electrode (cathode) (-) of the capacitor. A second aluminium foil called “cathode foil” contacts the electrolyte and serves as the electrical connection to the negative terminal of the capacitor.

Features of Aluminium 100uF 25V Electrolytic Polar Capacitor:

• 105°C General purpose radial electrolytic capacitors.
• Ideal for use in power supply smoothing.
• High-Quality and Longlife Electrolytic Capacitors.
• Low Leakage Current.
• Wide Operating Temperature Range.
• Great transient/surge suppressor capacitors.
• Attach one between the power and ground of your project to ensure smooth power delivery.

Specifications of Aluminium 100uF 25V Electrolytic Polar Capacitor:

1. RoHS Compliant
2. Accuracy: ±20%
3. Wide Operating Temperature Range: -55...105°C
4. Dimensions: Body Height – 11mm, Body Diameter – 5mm
5. Pin Spacing: 2mm
6. Terminal: Radial

Package Includes:

1 x Aluminium 100uF 25V Electrolytic Polar Capacitor
