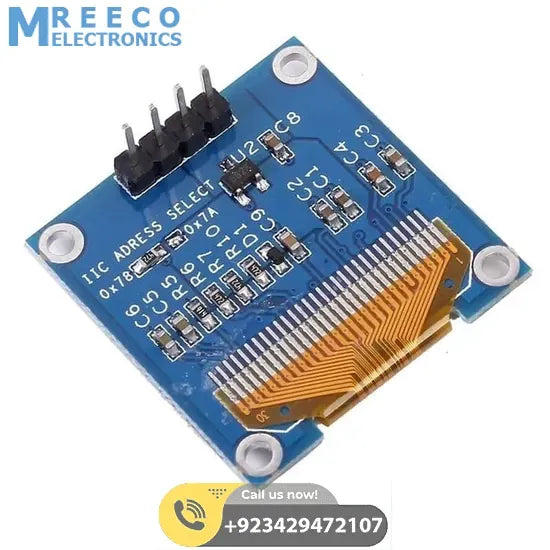

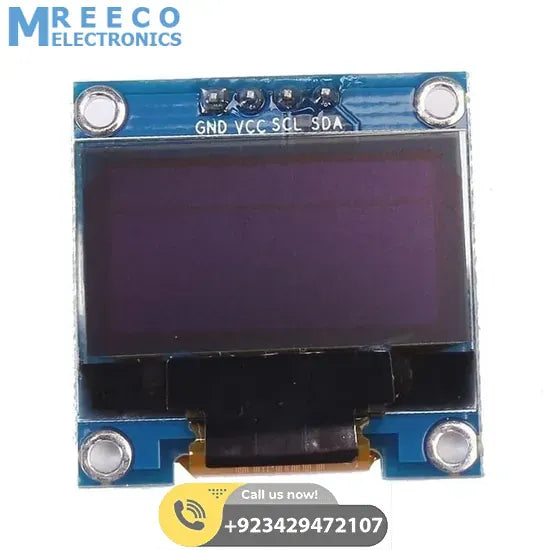

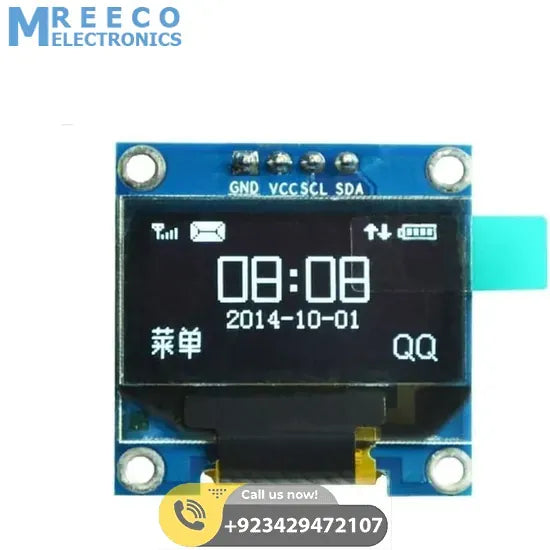

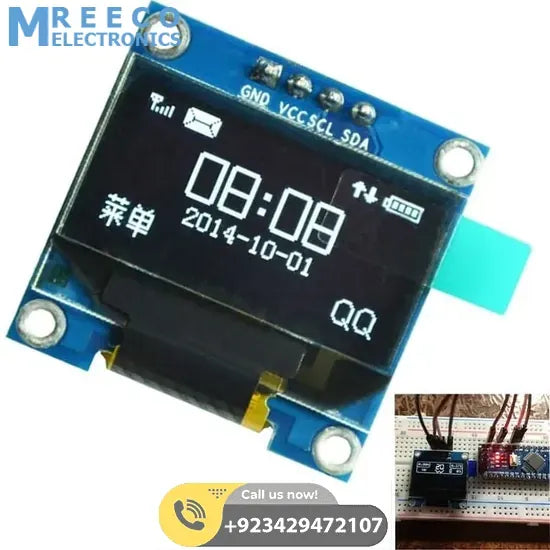

Arduino 0.96 Inch OLED Display Module 128x64 I2c SSD 1306 LCD Screen White Background

This 0.96 inch OLED display is based on  popular SSD 1306 display controller. This OLED display module works on both I2C (TWI). The display is small in size and very crisp. This LCD screen board has a resolution of 128 x 64 pixels. It is ideal for projects, where you want, do display graphics, bitmaps and fonts of various sizes. Since this LED 128X64 I2C Arduino is based on popular display controller libraries are available for Raspberry Pi, Arduino, AVR, PIC and ARM microcontrollers.

NOTE: This board/chip uses I2C 7-bit address 0x3C.

Features Of 0.96 inch IIC Serial Yellow Blue OLED Display Module 128X64 I2C SSD1306 12864 LCD Screen Board:

• Needn’t backlight, the display unit can self-luminous
• The display is self-illuminating
• Power requirement is low
• They are offering a large viewing angle
• Fully Compatible with Arduino
• The ultra-low power consumption of around 0.08w at full-screen lit.

Specifications Of 0.96 inch 128X64 OLED Display Module:

• High resolution: 128 * 64
• Viewing angle: > 160 °
• Supports many control chip: Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
• Ultra-low power consumption: Full screen lit 0.08W
• Voltage: 3V ~ 5V DC
• Working Temperature: -30 ? ~ 70 ?
• Module Size: 27.0MM * 27.0MM * 4.1MM
• Interface: I2C/IIC Interface, need 2 IO only.
• Driver IC: SSD1306
• Colour: White

Package Includes:

• 1 x Arduino 0.96 inch IIC OLED Display 128X64 I2C SSD1306 LCD Screen
