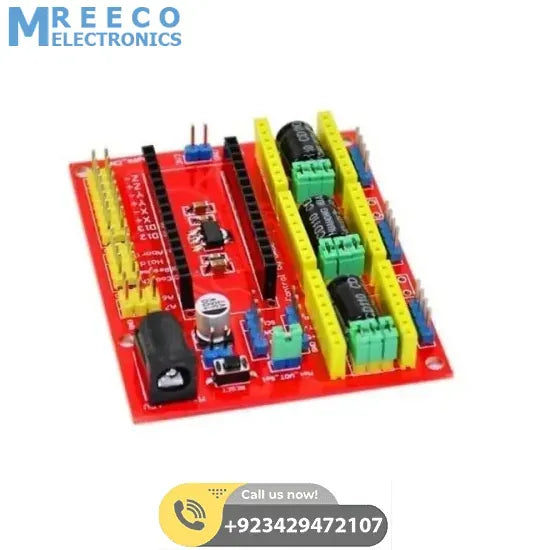

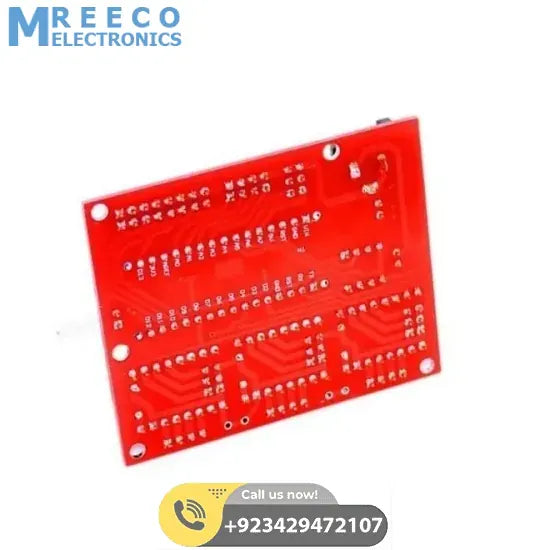

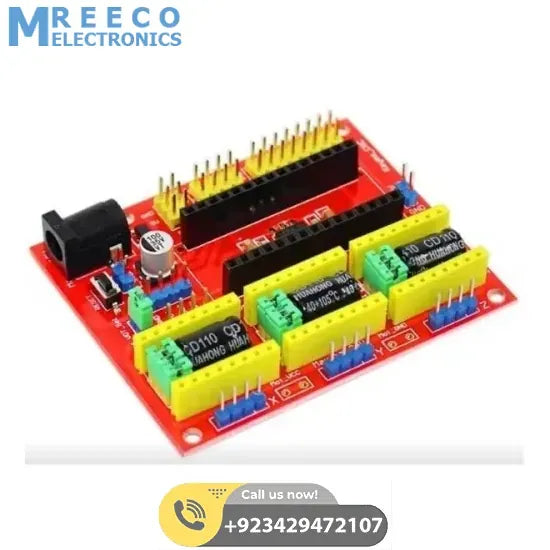

Arduino Nano CNC Shield V4 Expansion Board Stepper Motor Driver Board

CNC shield V4 needs to work with Arduino Nano. It can be used as Driver Expansion Board for engraving machines and 3D printers. It has in total 3 channel slots forA4988 Stepper Motor Driver modules (not included) for driving 3 channel of stepper motors. Each channel of stepper motor only needs 2 IO ports, which means 6 IO ports is sufficient to manage 3 stepper motors. This Breakout shield can make quick work for managing stepper motors in your project.

Features And Specifications Of CNC shield v4 engraving machine comparable with Nano 3.0 /3D Printer/A4988 driver GRBL :

• 3 axis stepper motor driver
• Compatible with micro-drive laser engraving machine, three-axis CNC engraving machine
• Can control the two-phase four-wire stepper motor up to 2A
• Digital IO interface enables easy connections to other modules, such as ENDSTOPs
• I2C interface enables connection to the LCD I2C or other I2C module
• DC5v interface, 7.5-12V voltage input
• GRBL compatible
• This model is designed to do full steps only
• Dimensions: 71.5 x 58 x 12.5mm

Package Includes :

• 1 x 3D Printer CNC Shield V4 Expansion Board
