Arduino Nano V3

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). Arduino Nano has more or less the same functionality of the Arduino UNO but in a different package. Arduino Nano lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

Specifications of Nano 3.0 Controller Compatible For Arduino Nano CH340 USB Driver:

1. Microcontroller : ATmega328 (arduino nano).
2. Operating Voltage (logic level) : l5 V.
3. Input Voltage (recommended) : 7-12 V.
4. Input Voltage (limits) : 6-20 V.
5. Digital I/O Pins: 14 (of which 6 provide PWM output).
6. Analog Input Pins: 8.
7. DC Current per I/O Pin: 40 mA.
8. Flash Memory: 16 KB (ATmega168) or 32 KB (ATmega328) of which 2 KB used by the boot loader.
9. SRAM : 1 KB (ATmega168) or 2 KB (ATmega328).
10. EEPROM: 512 bytes (ATmega168) or 1 KB (ATmega328).
11. Clock Speed: 16 MHz.
12. Dimensions : 0.73" x 1.70".
13. Length: 45 mm.
14. Width : 18 mm.
15. Weight: 5 g.

Features of Arduino Nano:

1. Automatic reset during program download
2. Power OK blue LED
3. Green (TX), red (RX) and orange (L) LED
4. Auto-sensing/switching power input
5. Small mini-B USB for programming and serial monitor
6. ICSP header for direct program download
7. Standard 0.1” spacing DIP (breadboard friendly)
8. Manual reset switch

Related documents:

1. IC CH340G Datasheet here
2. IC Atmel ATmega 328 Datasheet here

Package includes:

• 1 x Arduino Nano V3 Arduino Nano

Online Shopping website for Arduino Nano V3. Here you get Arduino Nano V3 at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, and all over Pakistan. Best Quality nano v3 and v5.

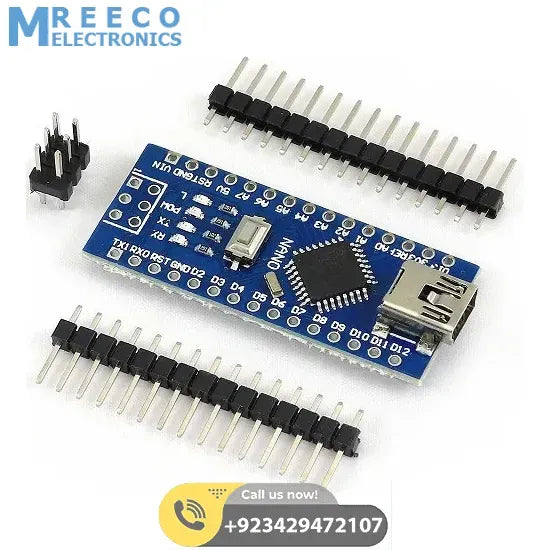

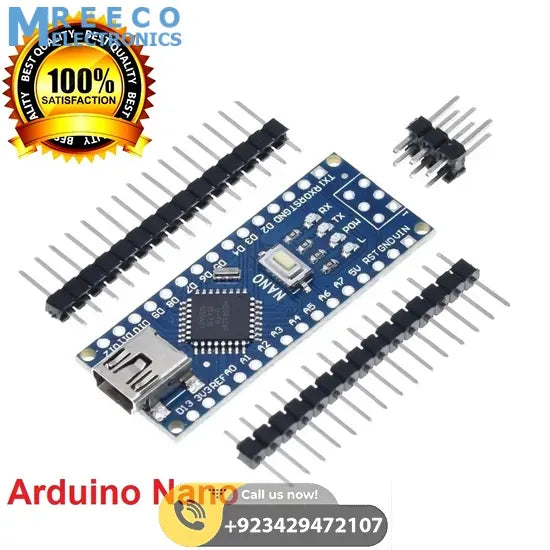

After Soldering You will get this board like these images.
