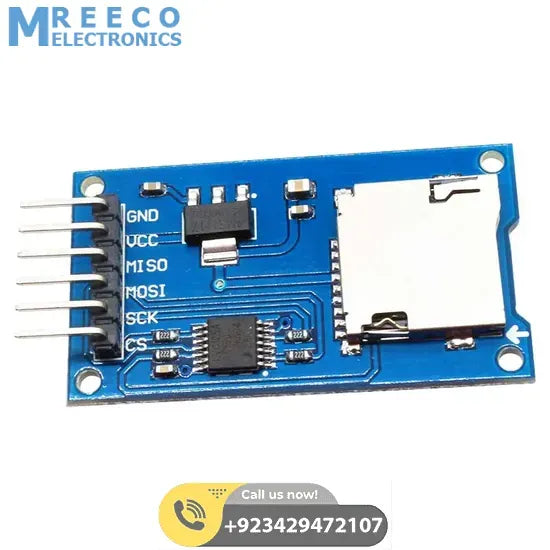

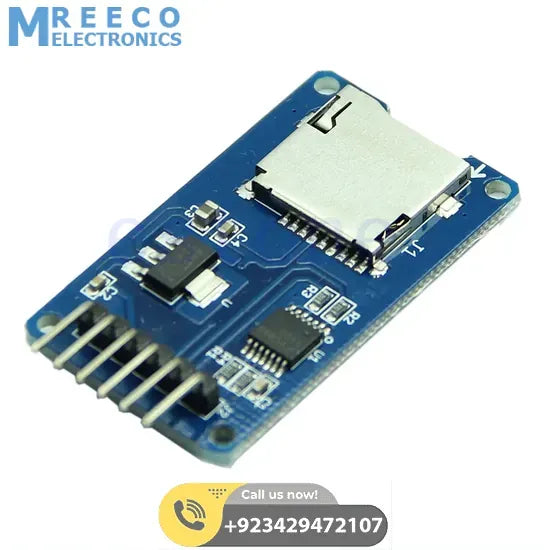

Arduino SD Card Reader Module

Micro SD Card Module Supports Micro SD Card, Micro SDHC card (high-speed card). The level conversion circuit board that can interface level is 5V or 3.3V. The communication interface is a standard SPI interface

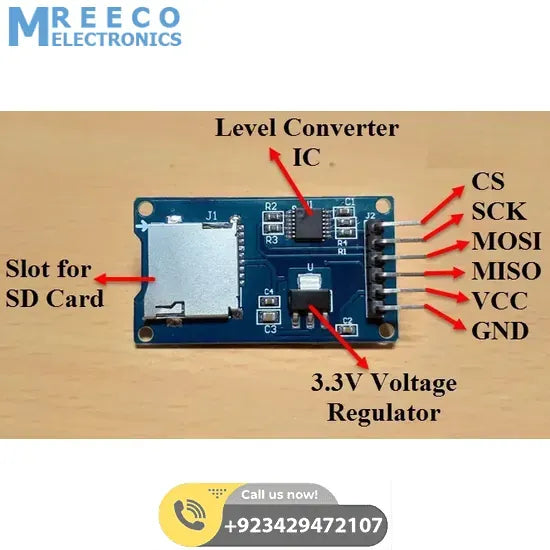

Control Interface: A total of six pins (GND, VCC, MISO, MOSI, SCK, CS), GND to ground, VCC is the power supply, MISO, MOSI, SCK is the SPI bus, CS is the chip select signal pin; 3.3V regulator circuit: LDO regulator output 3.3V as level converter chip, Micro SD card supply.

MicroSD card toward the direction of the control interface MISO signal is also converted to 3.3V, general AVR microcontroller system can read the signal;

Specifications:

1. Power supply: 4.5V – 5.5V, 3.3V voltage regulator circuit board
2. Positioning holes: 4 M2 screws positioning hole diameter of 2.2mm
3. Control Interface: GND, VCC, MISO, MOSI, SCK, CS
4. Size: 45 x 28mm
5. Net weight: 6g

Package Includes:

• 1 x Micro SD Card Module
