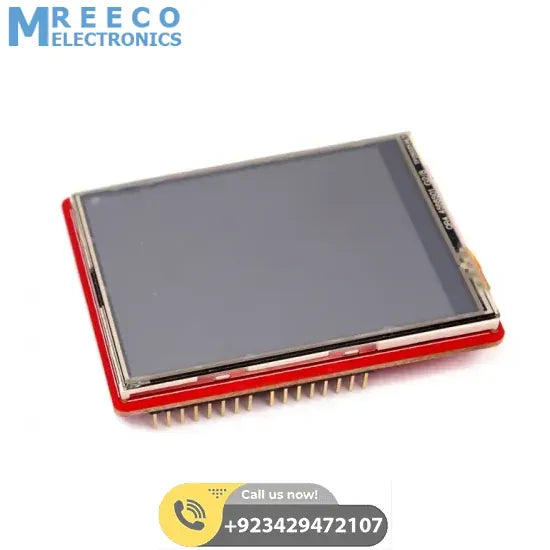

Arduino Uno TFT Shield 2.8" TFT Shield For 2.8inch TFT LCD

The 2.8 inch TFT Touch Screen LCD Module For Arduino is a beautiful large touchscreen display shield with built in microSD card connection. The LCD has excellent vivid color contrast. This TFT display is big (2.8″ diagonal) bright (4 white-LED backlights) and colorful (18-bit 262,000 different shades). 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.

Features:

1. 2.8 inch LCD TFT display
2. Bright, 4 white-LED backlights, on by default but you can connect the transistor to a digital pin for backlight control
3. Colorful, 18-bit 262,000 different shades
4. 4-wire resistive touchscreen
5. Spfd5408 controller with built-in video RAM buffer
6. 8-bit digital interface, plus 4 control lines
7. Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD
8. 5V compatible, use with 3.3V or 5V logic
9. Resolution : 240 x 320 pixels
10. Size : 2.8" (50.0 x 69.2 x 2.5 mm)
11. Colors: 262K

How To Use: As with all Arduino Shields, connecting to the Arduino is simply a matter of plugging the shield in. Take care to align the pins correctly, and ensure the bottom of the shield does not make contact with the Arduino USB port. Package included:

• 1x 2.8" TFT LCD Shield
