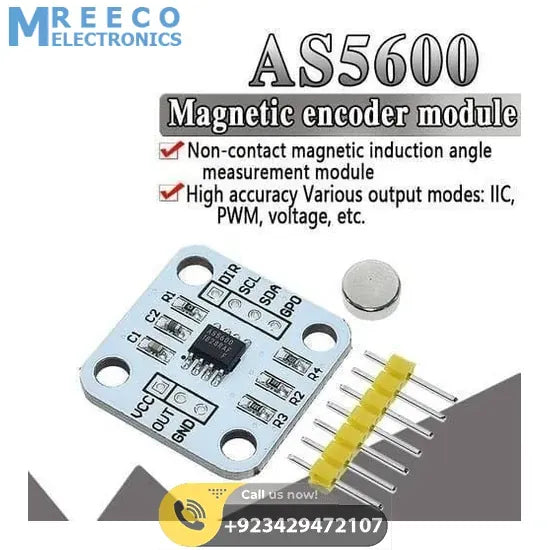

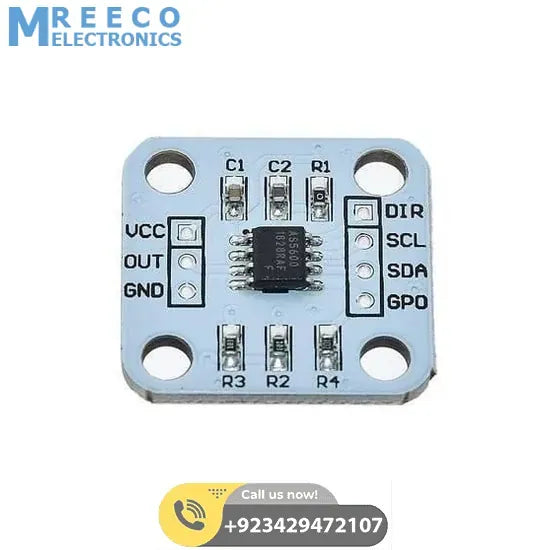

As5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12bit High Precision For Arduino

AS5600 is a programmable 12-bit high-resolution contactless magnetic rotary position sensor. AS5600 can work as a magnetic potentiometer or a magnetic encoder with excellent reliability and durability.

Compared with the traditional potentiometer/encoder, AS5600 has significant advantages: high precision, non-contact, and no limits on the rotation angle. All those advantages make it suitable for non-contact angle measurement applications, such as the robot arm, tripod head, motor closed-loop control, and machine tool axis positioning.

Features And Specifications Of Magnetic Encoder – Rotary Position Sensor (AS5600):

• Non-contact, no rotation angle limitation
• Working Voltage: 3.3v
• 12-bit high-resolution, 4096 positions per round
• I2C (digital) or PWM (Analog) Output

Working Principle

AS5600 is based on the Hall Effect (the chip contain 4 hall effect sensor arranged in a circle). The built-in Hall sensor can detect changes in the direction of the magnetic field. The magnetic field direction information is amplified by the amplifier, with the help of the build-in 12-bit A/D, the AS5600 module can output 4096 positions per round.

Package Include:

• 1 x AS5600 magnetic encoder Arduino
• 1 x Magnet
