EGS002 EG8010 IR2113 DC To AC Spwm Pure Sine Wave Inverter Module

DC-AC 5V Pure Sine Wave Inverter SPWM Driver Board EGS002 Driver Module 12Mhz Crystal Oscillator CMOS RS232 Over-Voltage Under-Voltage Over-Current Over-Heating Protection - Arduino Co
Description: EG8010 is a digital, function very well bring their own dead-time control of pure sine wave inverter generator chip, used in two-stage DC-DC-AC power conversion structure or single-stage DC-AC power frequency transformer architecture, an external 12MHz crystal oscillator, to achieve high precision, and harmonic distortion is very small, 50Hz or 60Hz pure sine wave inverter ASIC. The chip uses CMOS technology, the internal integration of SPWM sine generator, dead-time control circuit, the multiplier factor range, soft start circuit, protection circuit, RS232 serial communication interface and a serial driver module 1602 functions.

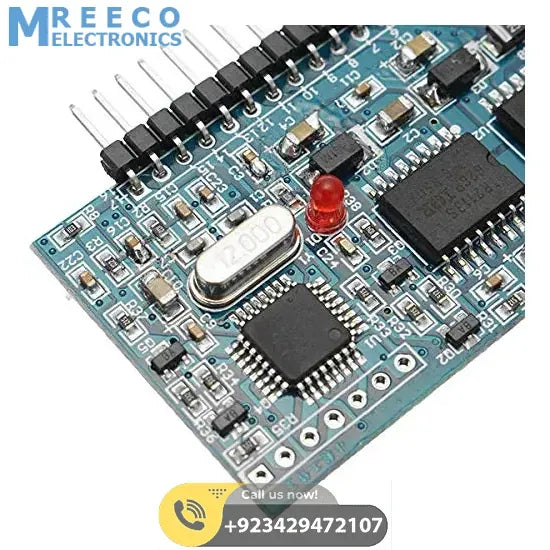

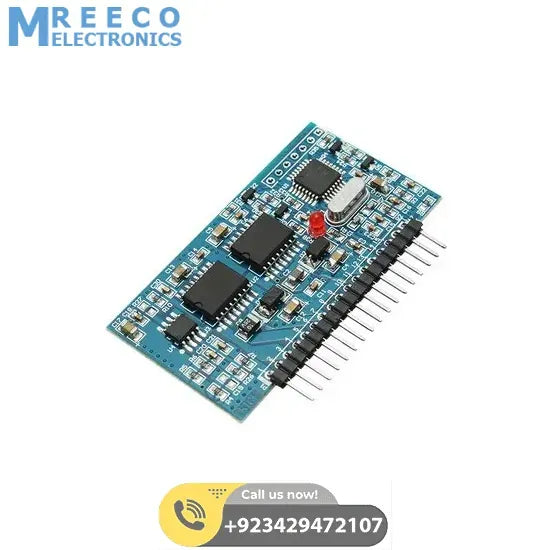

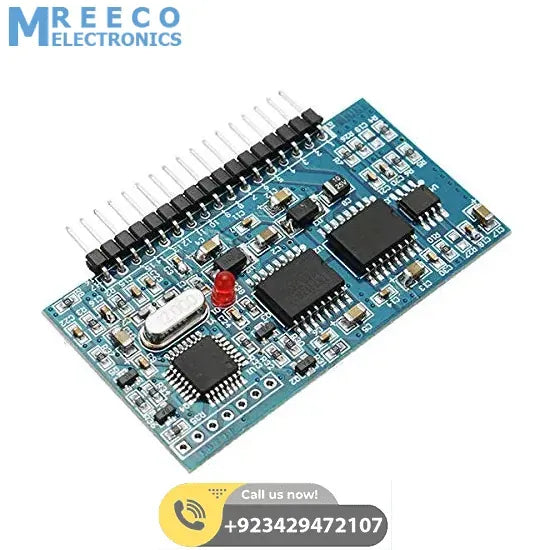

DC AC 5V Pure Sine Wave Inverter SPWM Driver Board EGS002 in Pakistan:

• 5V single power supply
• 4 pin of pure sine wave output frequency: 50Hz pure sine wave of the fixed frequency of 60Hz pure sine wave of fixed frequency 0-100Hz; pure sine wave frequency adjustable 0-400Hz pure sine wave frequency adjustable
• Unipolar and bipolar modulation
• Comes with deadband control, pin 4 dead times: 300nS dead time 500nS dead time 1.0uS dead time 1.5uS dead time
• External 12MHz crystal oscillator
• PWM carrier frequency 23.4KHz
• Voltage, current, real-time temperature feedback
• Overvoltage, under voltage, overcurrent, and overheating protection
• Soft-start mode pin setting the response time of 1S
• Serial communication to the output voltage, frequency, and other parameters
• External Serial Module 1602 displays the inverter
• voltage, frequency, temperature and current information

Application:

• Single-phase pure sine wave
• inverter PV
• inverter The power inverter Digital
• uninterruptible power supply UPS
• system Generator system
• If the power
• Single-phase motor speed controller - Phase
• inverter
• Sine wave dimmer Sine
• wave regulator Sine
• wave generator

Package Include:

• 1 x DC-AC 5V Pure Sine Wave Inverter SPWM Driver Board EGS00
