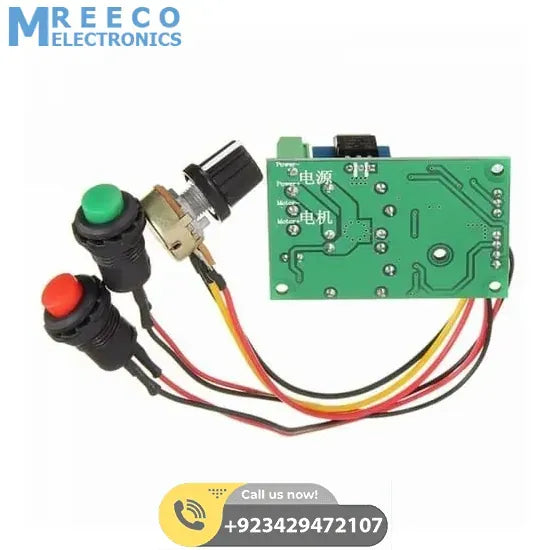

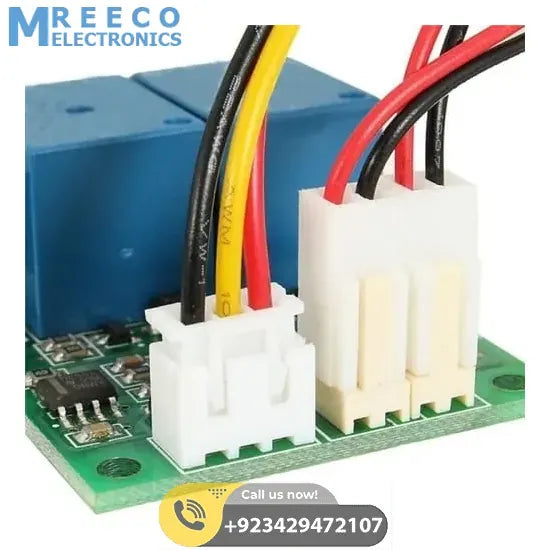

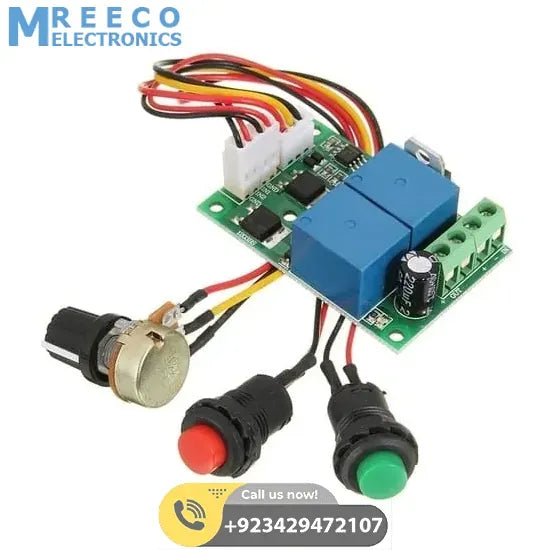

DC Motor Speed And Direction Controller Board

Features Of Variable Speed Dc Motor Controller Board:

• Brand New and high quality.
• Enable to provide a continuous current of 3A to your DC motor or other DC load.
• Control the forward or reverse direction and the stop of DC motor by button switch.
• Press the red button, the motor reverses rotates; and release the button, the motor stops.
• Press the green button, the motor clockwise rotates; and release the button, the motor stops.

Specifications Of PWM Dc Motor Speed And Direction Controller Module:

1. Input supply voltage: 6V-24VDC
2. The maximum continuous output current: 3A
3. Duty Cycle adjustable: 0%-100%
4. Wire Length: 20cm/7.87"(appr.)
5. Size: (L)X(W)X(H) 57X37X21mm/2.24"X1.46"X0.83"(appr.)

Operating instruction:

Before you attempt to wire the controller, make sure power is off.

• Connect wires refer to the "wiring diagram".
• Turn on the power, and adjust the potentiometer.
• The LED indicates the power-up and the speed of the motor.
• Control the forward or reverse the direction of DC motor by button switches.

WARNING: Do not reverse positive and negative power loads. This will damage the controller.

Package Include:

• 1x DC Motor Speed And Direction Controller Board
