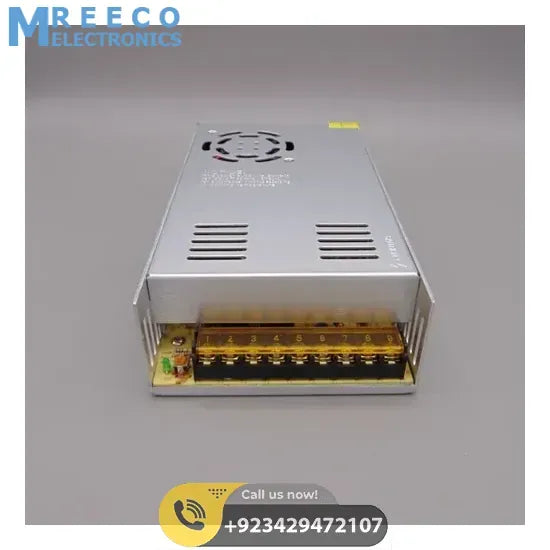

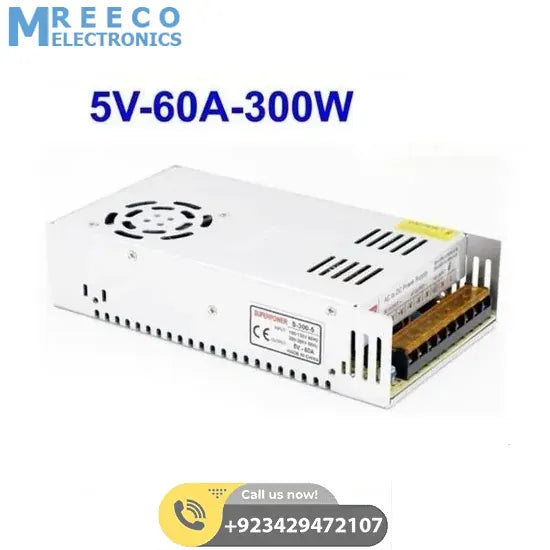

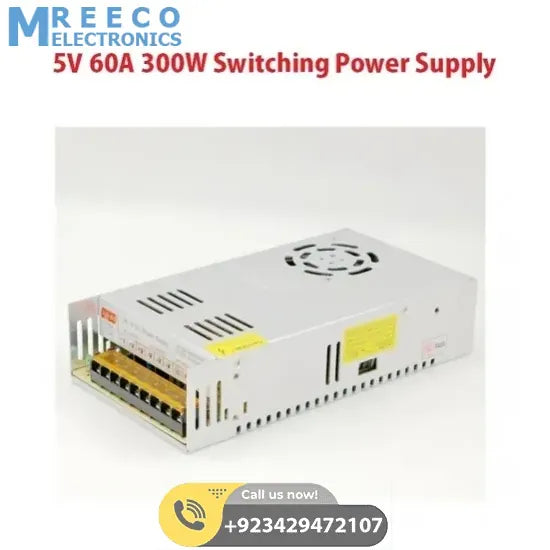

DC Switching Power Supply 5V 60A S-300-5 in Pakistan

This DC Switching Power Supply 5V 60A S-300-5 is smart power transformer protection for shortage protection, overload protection, overvoltage protection. This best S3005 power supply makes your device more stable and safety. This switching power module is slim and flat body size, to save your valuable space, special install hole design. This universal regulated switching power supply can be level install or vertical side install, to save your energy and valuable time. This switched-mode power supply has a thick aluminium case makes heat dissipation easier and keeps switching power supply more durable

Features Of 5V 60A Screen Lighting Monitor Power Supply S3005:

• With short circuit protection, overload protection, overvoltage protection
• High efficiency, long life, high reliability
• Built-in EMI filter, good anti-interference performance
• 100% full load burn-in test
• Universal AC input: 220VAC± 20%
• Fixed switching frequency at 47-63Hz

Specifications Of S-300-5 DC 5V 60A 300W Regulated Switching Power Supply:

1. DC output: 5V 60A
2. Wave and noise: 100mVp-p
3. Inlet stability: ± 0.5%
4. Load stability: ±1%
5. Efficiency: 76%
6. Adjustable range for DC voltage: ±10%
7. AC input voltage range: 170-264VAC 47-63Hz
8. AC Inrush current: Cold-start current 35A/230
9. Overload protection: 105%-150% hiccup mode,auto-recovery
10. Setup, rise, hold up time: 200ms,50ms,20ms at full load and 230VAC
11. Withstand voltage: I/P-O/P:3Kv I/P-FG:1.5KV O/P-FG:0.5KV 1minute
12. Isolation resistance: I/P-O/P IP/FG OP-FG:500VDC/100M
13. Working temperature: -10ºC_+50ºC
14. Safety Standards: Design refer to GB4943,UL60950,EN60950
15. EMC Standards: Design refer to GB9254, EN55022 Class B
16. Weight: 1.2Kg

Package Includes:

• 1 x DC Switching Power Supply 5V 60A S-300-5
