DC3V 6V DC Gear Motors In Pakistan

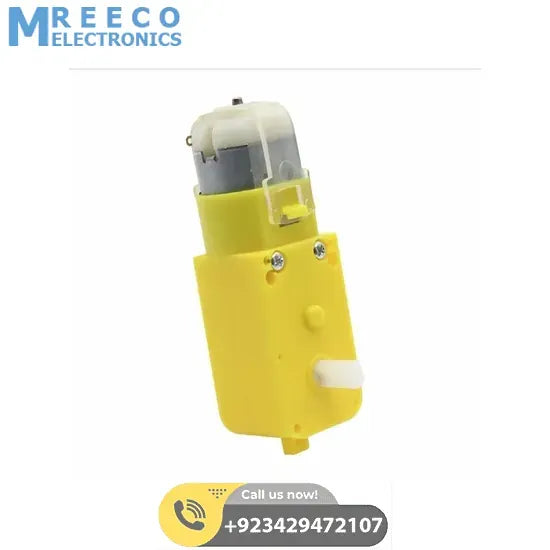

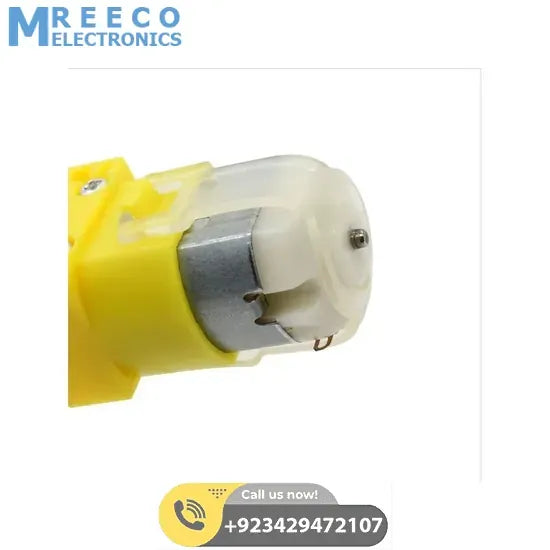

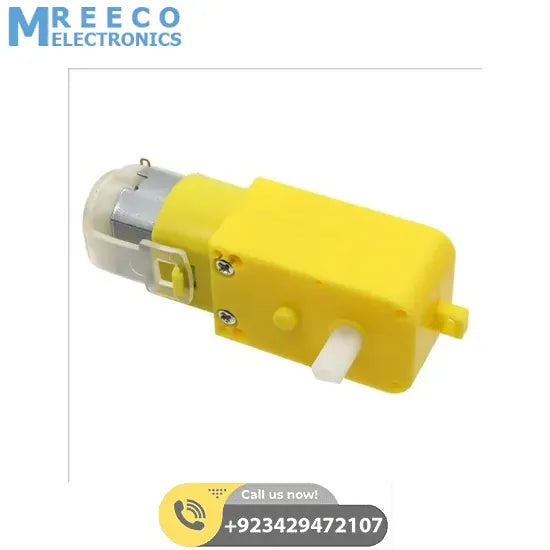

This gear motor is perfect for your next robotics project. This gear motor is ideal for robotic car or line-tracing robot. With plastic construction and colored in bright yellow, the DC gear motor measures approx. 2.5 inch long, 0.85 inch wide and 0.7 inch thick. The wheel can be mounted on either side and the Gearmotor works well between 4V to 7V (recommended 6 Volts). At a ratio of 1:48 you can get some really good torque at 5 Volts.

SPECIFICATIONS OF DC Gear Motor:

1. Voltage (Range): 3Volt
2. Current (Stall): 100mA
3. Speed: 125RPM
4. Torque: 0.8kg.cm
5. Gearmotor Style: Hobby
6. Gear Material: Plastic
7. Gearbox Ratio: 48:1
8. Encoder: No

EXTRA SPECIFICATIONS

1. Voltage: 3V
2. RPM: 125r / minute
3. Current: 80 - 100mA
4. Reduction: 48:1
Output
5. Torque: 0.8kg.cm
6. Brush-type: Brush

FEATURES

1. DIY Projects
2. Battery-operated toys
3. Disk drives Steel rolling mills Paper
4. Machines Medical equipment
5. Radio-controlled aircraft
6. Automobiles Drive systems Positioning
7. Industrial and consumer actuators Winches Robotics Mixers
8. Robotic projects

Dimensions

1. 70x22x18mm
2. Shaft Size: 8mm x 5.4mm diameter
3. Weight: 17gr

Package Includes:

1x dc motor as shown in the picture.
