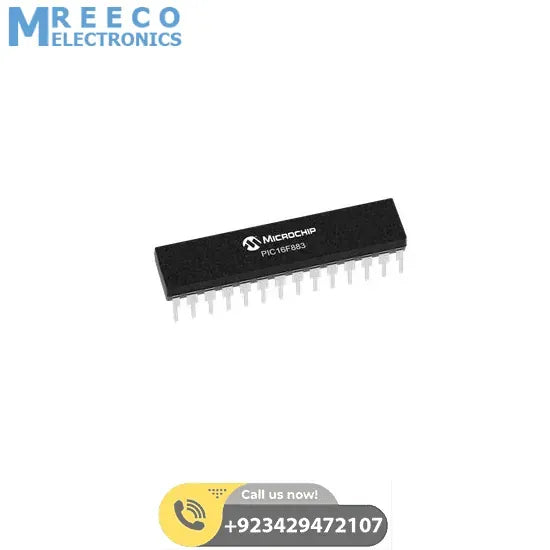

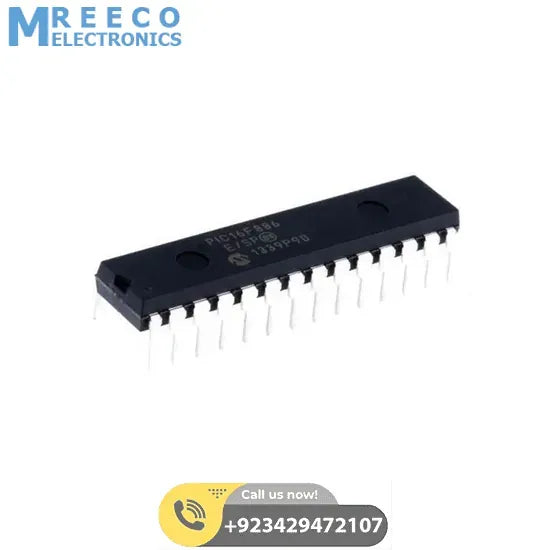

Dell Microcontroller PIC16F883 DIP 28

PIC microcontrollers ( Programmable Interface Controllers), are electronic circuits that can be programmed to carry out a vast range of tasks. ... They are found in most electronic devices such as alarm systems, computer control systems, phones, in fact almost any electronic device. PIC16F883 powerful yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into a 28 pin package.

Parametrics

1. Program Memory Type: Flash
2. Program Memory Size (KB): 7
3. CPU Speed (MIPS/DMIPS): 5
4. SRAM (B): 256
5. Data EEPROM/HEF (bytes): 256
6. Digital Communication Peripherals: 1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2)
7. Capture/Compare/PWM Peripherals: 2 Input Capture, 1 CCP, 1 ECCP
9. Timers:
2 x 8-bit, 1 x 16-bit
10. ADC Input: 11 ch, 10-bit
11. Number of Comparators: 2
12. Temperature Range (°C): -40 to 125
13. Operating Voltage Range (V): 2 to 5.5
14. Pin Count: 28

Special Microcontroller Features:

1. Precision Internal Oscillator:
• Factory calibrated to ±1%
• Software selectable frequency range of 8 MHz to 32 kHz
• Software tunable
• Two-Speed Start-Up mode
• Fail-safe clock monitoring for critical applications
• Clock mode switching during operation for low-power operation
2. Power-Saving Sleep mode
3. Power-on Reset (POR)
4. Selectable Brown-out Reset (BOR) voltage
5. Extended Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
6. In-Circuit Serial Programming™ (ICSP™) via two pins
7. In-Circuit Debug (ICD) via two pins
8. High-endurance Flash/EEPROM cell:
• 100,000 erase/write cycle enhanced Flash program memory, typical
• 1,000,000 erase/write cycle data EEPROM memory, typical
• Data EEPROM retention > 40 years
9. Self-reprogrammable under software control
10. Programmable code protection
11. Peripheral Features:
• Device Features:
• • 1 input only pin
• 25 I/O
• High sink/source current 25 mA
• Interrupt-on-pin change option
12. Timers:
• TMR0: 8-bit timer/counter with 8-bit Prescaler
• TMR1 enhanced: 16-bit timer/counter with Prescaler, External Gate Input mode and dedicated low-power 32 kHz oscillator
• TMR2: 8-bit timer/counter with 8-bit period register, Prescaler and postscaler
13. Capture/Compare/PWM (CCP) module
14. Enhanced Capture/Compare/PWM (ECCP) module with auto-shutdown and PWM steering
15. Master Synchronous Serial Port (MSSP) module SPI™ mode, I2C™ mode with address mask capability
16. Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module:
• Supports RS-485, RS-232 and LIN compatibility
• Auto-Baud Detect
• Auto-wake-up on Start bit
17. Ultra-Low-Power Wake-up (ULPWU)

Analog Features:

1. 10-bit 11 channel Analog-to-Digital (A/D) Converter
2. 2 Analog Comparator modules with:
• Programmable on-chip Voltage Reference (CVREF) module (% of VDD)
• Fixed 0.6 Vref
• Comparator inputs and outputs externally accessible
• SR Latch mode

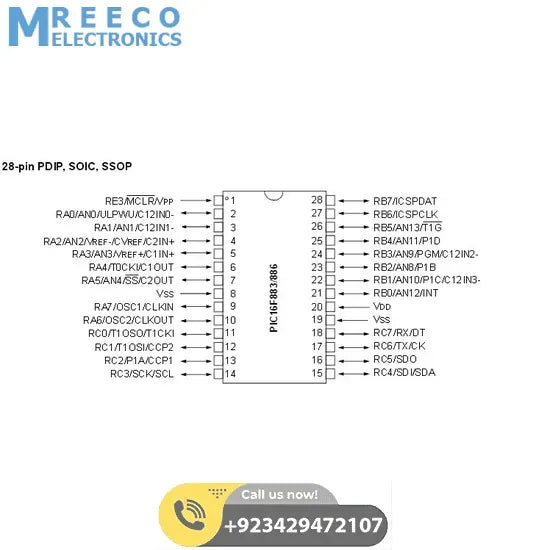

Pin configuration:

Datasheet:

pic16f883 datasheet

Buy Microcontroller PIC16F883 DIP 28 at Pakistan's Best Online Shopping Store in cheap price. Here you get a wide range of pic Microchips. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.

Package Include:

1x Microcontroller PIC16F883 DIP 28
