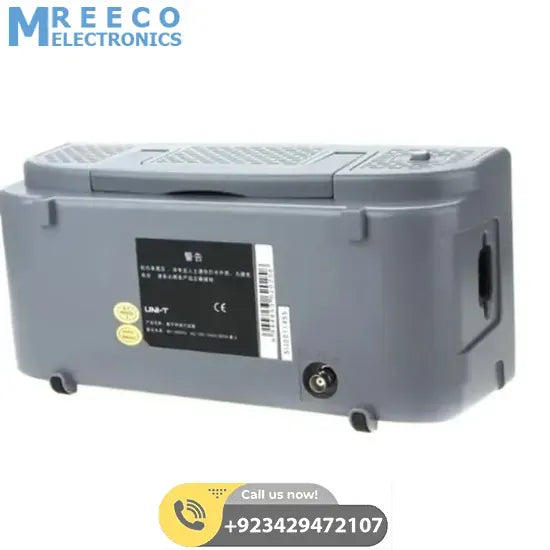

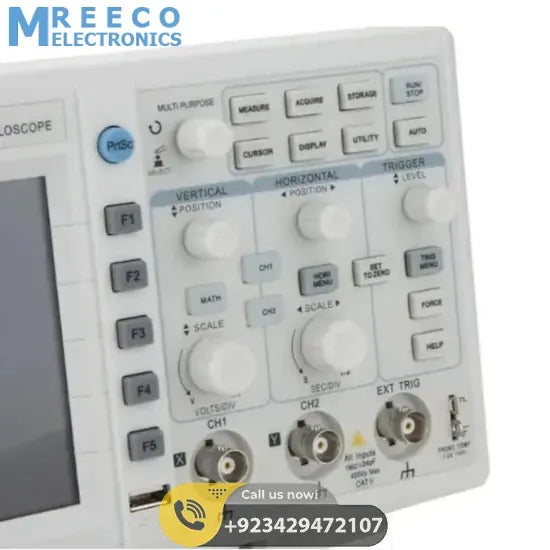

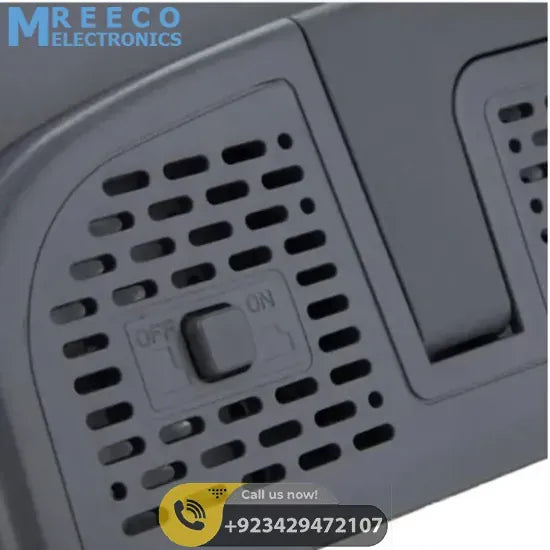

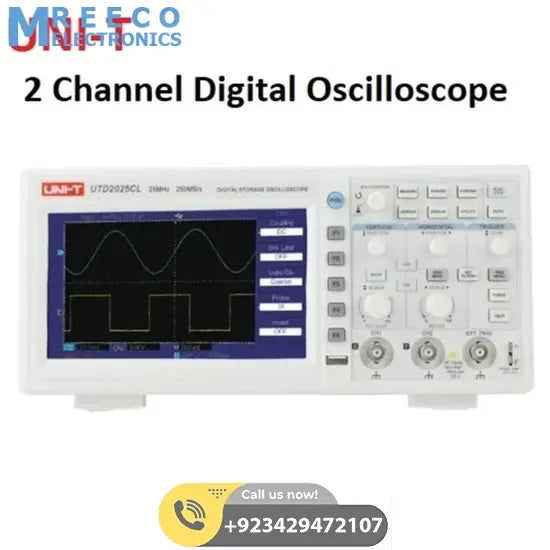

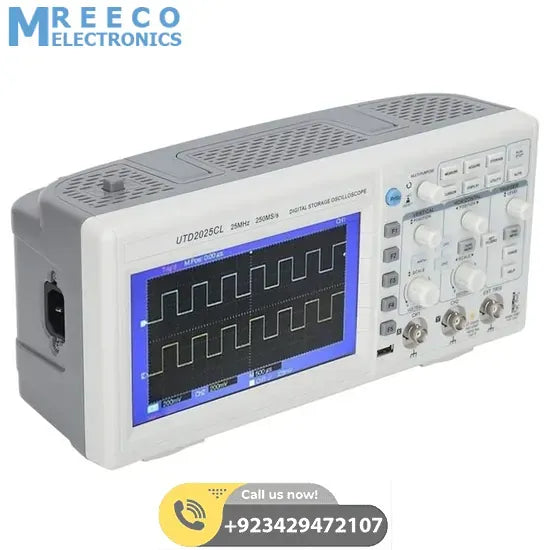

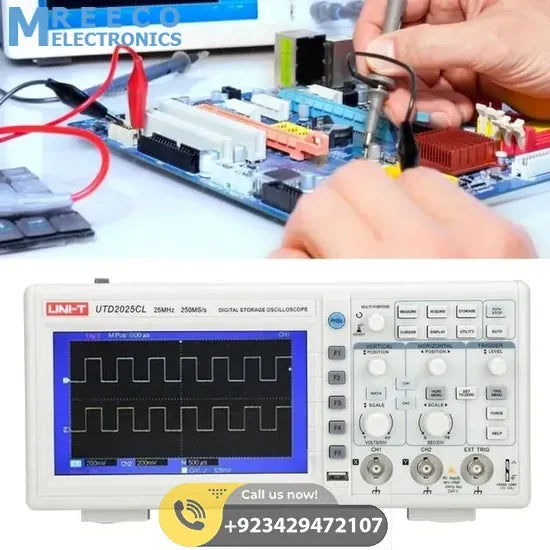

UNI T UTD2025CL Digital Storage Oscilloscope 2 Channel DSO

An oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time.UTD2025C Oscilloscope is a two-channel portable device with 25MHz bandwidth and 200MS/s sampling rate. Digital Storage CRO is ergonomic, lightweight, universal instruments designed for engineers. Sampling Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment

Features Of UNI-T UTD2025CL Best Sampling Oscilloscope:

• The dual analog channels width range of 1mV/div~20V/div.
• 7 inches widescreen LCD displays.
• Special Print Screen Feature.
• Supports plug-and-play USB storage devices. Communication with and remote control of the computer through the USB device.
• USB drive system software upgrade.
• Storage of waveforms setups and interfaces waveforms and setups reproduction.
• Automatic measurement of 28 waveform parameters.
• Unique waveform recording and replay function.
• Multilingual menu displays.

Specifications Of 2 Channel Oscilloscope DSO Scopemeter:

1. Channels: 2
2. Bandwidth: 25MHZ
3. Sample Rate: 250MS/s
4. Rise Time: ≤14ns
5. Memory Depth: 25 kpts
6. Waveform Acquisition Rate: ≥2000wfms/s
7. Vertical Sensitivity: 1mV/div~20V/div
8. Time-base Range: 10ns/div~50s/div
9. Storage: Setup, Wave, Bitmap
10. Trigger Modes: Edge, Pulse, Video, Alternate
11. Interface: USB OTG,Pass/Fail

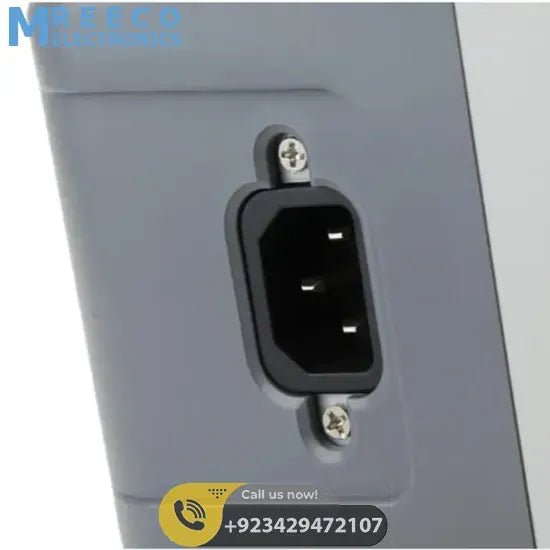

12. Power: 100-240VAC, 40-440Hz
13. LCD Size: 7 Inches 64K Color TFT LCD, 400×240
14. Color: White and Grey
15. Dimension: 306mm ×147mm × 122mm

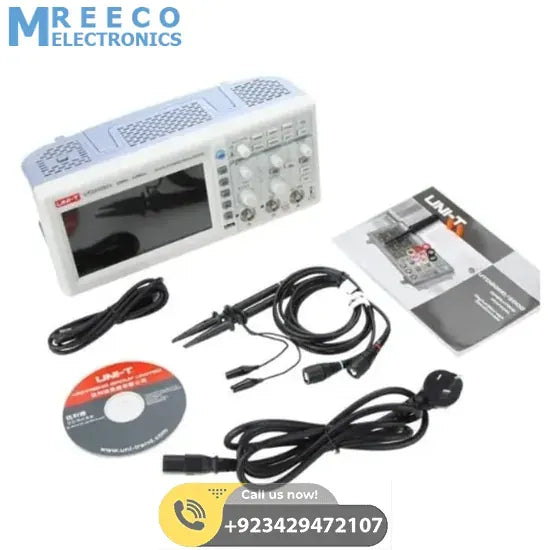

Package Include:

• 1x Oscilloscope
• 2x Probe (1×,10× switchable)
• 1x power cord
• 1x USB cable
