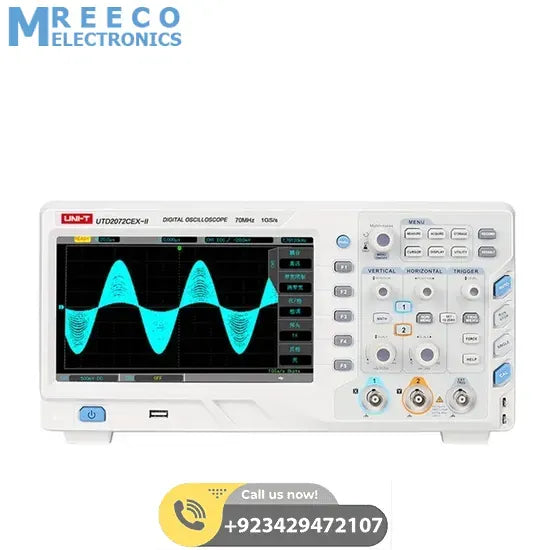

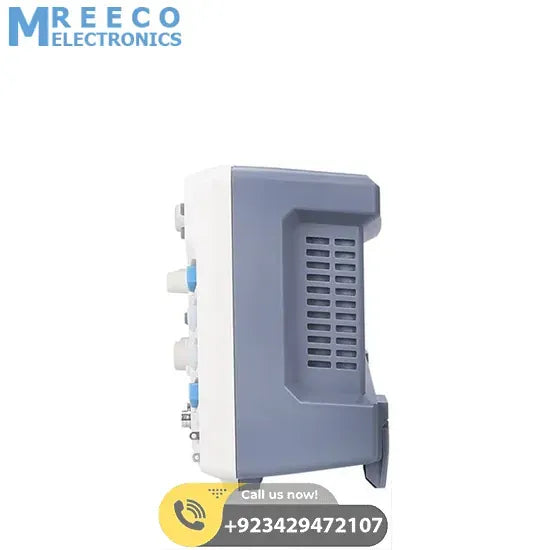

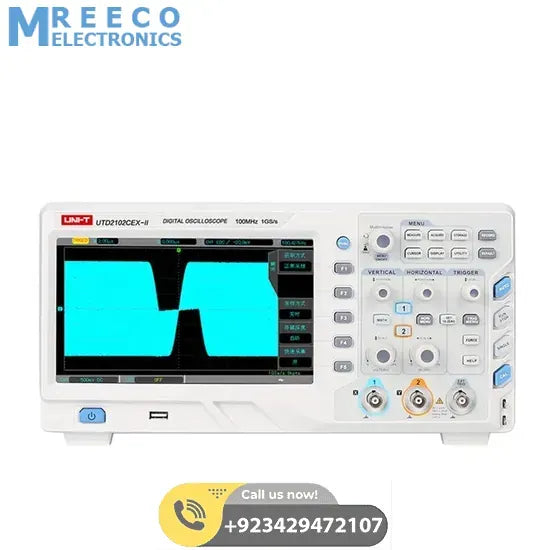

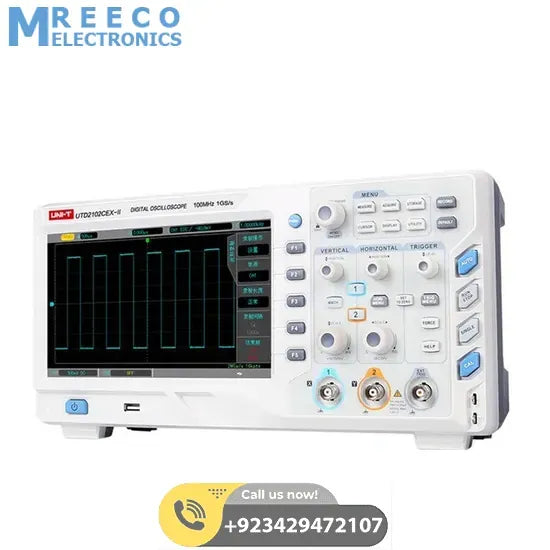

UNI T UTD2072CEX II Digital Storage Oscilloscope 2 Channel DSO in Pakistan

An oscilloscope is a laboratory instrument commonly used to display and analyze the waveform of electronic signals. In effect, the device draws a graph of the instantaneous signal voltage as a function of time. UNI-T UTD2072CEX-II digital oscilloscope is a 2 channel 70MHz bandwidth high-performance device. It has a sampling rate of 1GS/s. Digital Storage CRO is ergonomic, lightweight, universal instruments designed for engineers. Sampling Oscilloscope is suitable for field testing and analyzing time-based voltage signals in a mobile environment

Features Of UNI-T UTD 2072CEX-II Oscilloscope DSO Scopemeter:

• 70MHz bandwidth, 1GSa/s real-time sampling rate
• 2 channels
• 25kpts memory depth
• 20,000wfms/s waveform acquisition rate
• 2ns/div~50s/div time-base
• Trigger modes: Edge, Pulse Width, Runt, Over-amplitude, Slope and Video
• Calibration Signal Output: 10Hz, 100Hz, 1kHz (default), 10kHz and 100kHz
• Input calibration signal only by pressing a button
• 10Mpts waveform recording
• 8-inch TFT LCD, WVGA (800×480)
• USB OTG and Pass/Fail interfaces

Specifications Of 2 Channel Digital Storage Oscilloscope:

1. Channels: 2
2. Bandwidth: 70MHZ
3. Sample Rate: 1GS/s
4. Rise Time: ≤5ns
5. Memory Depth: 25 kpts
6. Waveform Acquisition Rate: ≥2000wfms/s
7. Vertical Sensitivity: 1mV/div-20V/div (1MΩ)
8. Time-base Range: 2ns/div~50s/div
9. Storage: Setup, Wave, Bitmap
10. Trigger Modes: Edge, Pulse, Video, Slope, Alternate
11. Interface: USB OTG,Pass/Fail
12. Power: 100-240VAC, 40-440Hz
13. LCD Size: 7 Inches 64K Color TFT LCD, 800×480
14. Color: White and Grey
15. Dimension: 306mm ×147mm × 122mm

Package Include:

• 1x Oscilloscope
• 2x Probe (1×,10× switchable)
• 1x power cord
• 1x USB cable
