Description

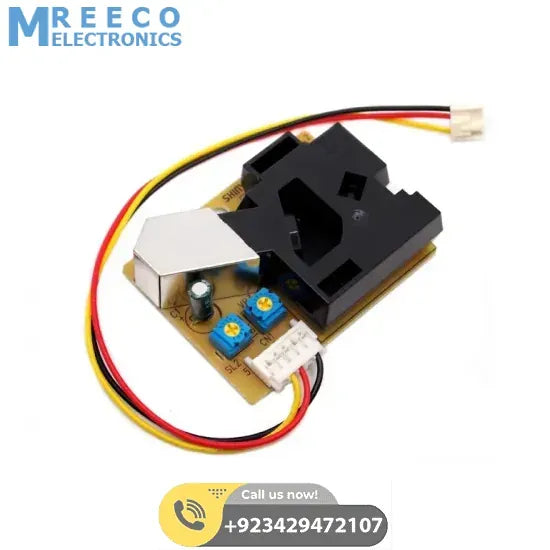

Dust Smoke Particle Sensor An infrared emitting diode (IRED) and a phototransistor are diagonally arranged into this device. It detects the reflected light of dust in the air. Especially, it is effective to detect very fine particle like the cigarette smoke. In addition, it can distinguish smoke from house dust by the pulse pattern of the output voltage.
Main features:
1, PWM output mode ; 2 , compact, light weight ; 3 , easy to install ; 4 , a single power supply ; 5, low prices. Main applications: 1 , air purifiers and air cleaners ; 2 , air-conditioning ; 3, the air quality monitoring instrument ; 4 , air conditioning and other related products. The main parameters: 1 , optical principle , be able to detect more than 1 micron dust particles ; 2, the two output modes , solve different sensitivity requirements, high output signal Vout clean environment (4V); 3,5VDC power supply ;4 , detecting particles range : up to 8000pcs / 283ml (1um particles above )
