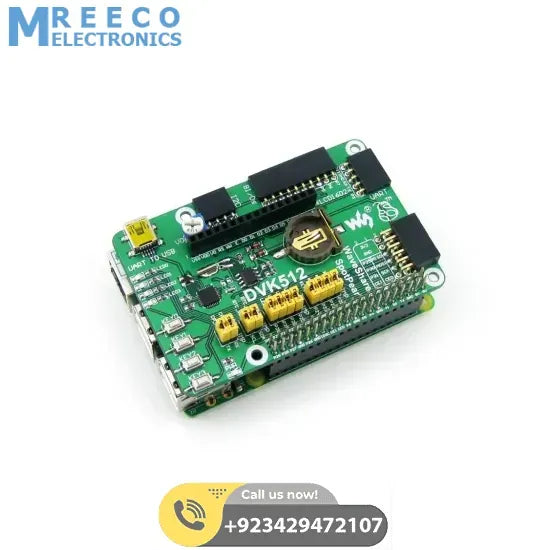

DVK512 Raspberry Pi Expansion Board

DVK512 Raspberry Pi Expansion Board in Pakistan is an expansion board designed for Raspberry Pi, integrates various components and interfaces for connecting external accessory boards. It's ideal for Raspberry Pi evaluation and development.

FEATURES:

• Designed for the Raspberry Pi.
• It comes with a
• Power indicator
,
• User LEDs
, and
• User Keys
.
• UART interface: easily connects to UART modules such as RS232, RS485, USB TO UART, etc.
• 8 I/Os interface: easily connects to modules controlled by I/Os, such as 8 Push Buttons, Logic Level Converter, Mix Board, etc.
• SPI interface: easily connects to SPI modules such as AT45DBXX Data flash, L3G4200D Board, etc.
• I2C interface: easily connects to I2C modules such as PCF8574 Expansion Board, PCF8563 RTC Board, LSM303DLHC Board, etc.
• Character LCD interface: for connecting character LCDs like LCD1602
.
• USB connector: USB TO UART, supported by onboard converter CP2102
.
• Potentiometer: for LCD1602 contrast adjustment
.
• PCF8563: Onboard RTC chip with battery holder and crystal.

• Dimension: 85 x 57 x 23 mm (Approx)
• Weight: 12 Gm (Approx.)
• EAN: 5055652905659

• 1 x DVK512
• 1 x USB type A plug to mini-B plug cable
• 1 x 4-pin 2-pin wires pack
• 1 x RPi screws pack (2pcs)
• 1 x User guide CD

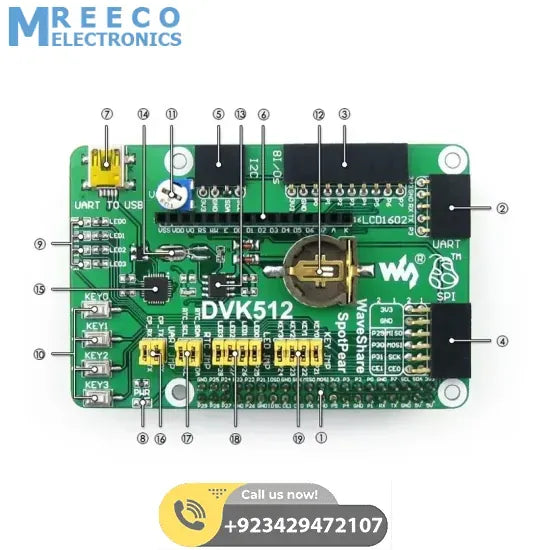

1. Pinheaders for connecting with the RPi
3. UART interface: easily connects to UART modules such as RS232, RS485, USB TO UART, etc.
4. 8I/Os interface: easily connects to modules controlled by I/Os, such as 8 Push Buttons, Logic Level Converter, Mix Board, etc.
5. SPI interface: easily connects to SPI modules such as AT45DBXX Dataflash, L3G4200D Board, etc.
7. I2C interface: easily connects to I2C modules such as PCF8574 Expansion Board, PCF8563 RTC Board, LSM303DLHC Board, etc.
8. Character LCD interface: for connecting character LCDs like LCD1602
9. USB connector: USB TO UART, supported by onboard converter CP2102
10. Power indicator
11. User LEDs
12. User Keys
13. Potentiometer: for LCD1602 contrast adjustment
14. RTC battery holder
15. PCF8563: onboard RTC chip
16. 32.768K crystal: RTC crystal
17. CP2102: onboard USB TO UART chip, for debugging
18. CP2102 jumper
19. RTC jumper
20. User LEDs
jumper
21. User Keys
jumper

For jumpers above:

• short the jumper to connect to I/Os used in example code
• open the jumper to connect to other custom pins via jumper wires
