- Em-18 EM18 RFID Reader Module

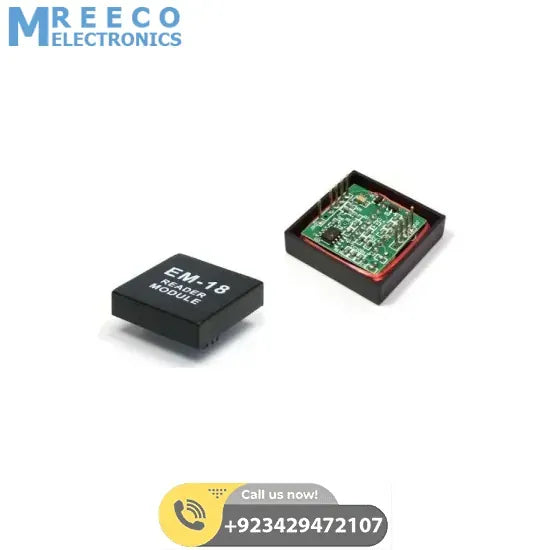

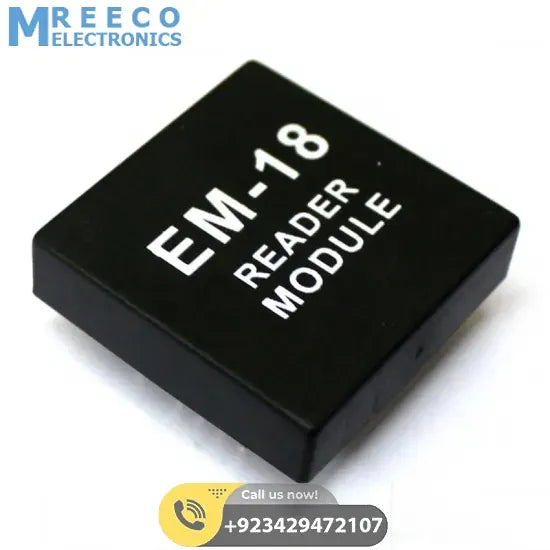

Em-18 EM18 RFID Reader Module
In stock
This is a great little RFID Reader Module from Innovations, simillar to the ID models (the difference being no silicone protection on the back). If you need an inexpensive way to get started with RFID, this is a great...
Ask about this product on WhatsApp- Fast deliveryFree shipping on prepaid orders above Rs. 10,000
- Secure payment100% secure payments by Meezan Bank
- SupportMonday to Saturday, 11:00 AM to 8:00 PM
- ReturnsSee our return and refund policy
Description
This is a great little RFID Reader Module from Innovations, simillar to the ID models (the difference being no silicone protection on the back). If you need an inexpensive way to get started with RFID, this is a great little module. Just power the module, and it will read any RFID card within range.
It will output the cards ID in a serial string, which can easily be read by any micro-controller. The spacing on the pins is 2.54 mm, which means the module will directly fit on a breadboard.
Here is a great little tutorial we did, to help you get started with this module!
Note:?This Module will not work with the Atmega32u2 Developement Board.
Features:
- 5V supply
- 125kHz read frequency
- EM4001 64-bit RFID tag compatible
- 9600bps TTL and RS232 output
- Magnetic stripe emulation output
- 100mm read range

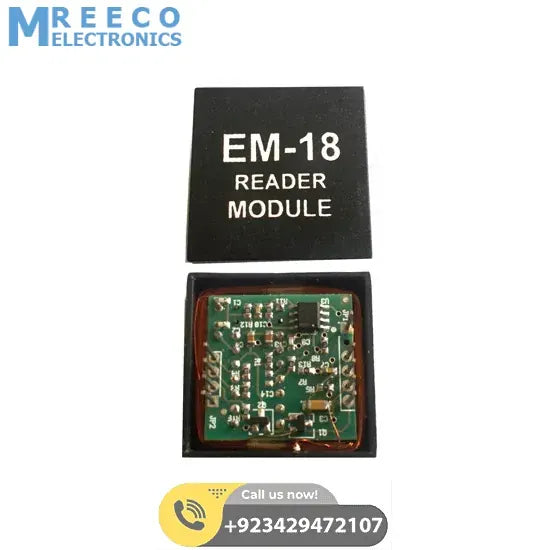

EM-18 RFID Reader Module Bottom View
Pin No. Name Function 1 VCC 5V 2 GND Ground 3 BEEP BEEP and LED 4 ANT No Use 5 ANT No Use 6 SEL HIGH selects RS232, LOW selects WEIGAND 7 TX UART TX, When RS232 is Selected 8 D1 WIEGAND Data 1 9 D0 WIEGAND Data 0Package includes:
1xEM-18 EM18 RFID Reader Module
Specifications
| Brand | Mreeco |
|---|---|
| Category | Sensors & Modules |
| SKU | 637720624164386087 |
| Availability | In stock |
