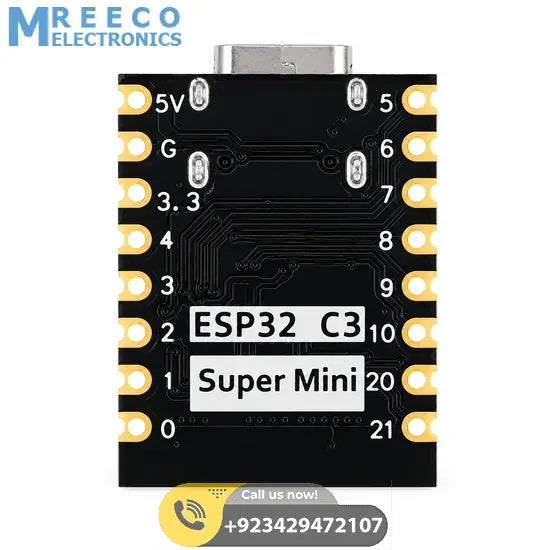

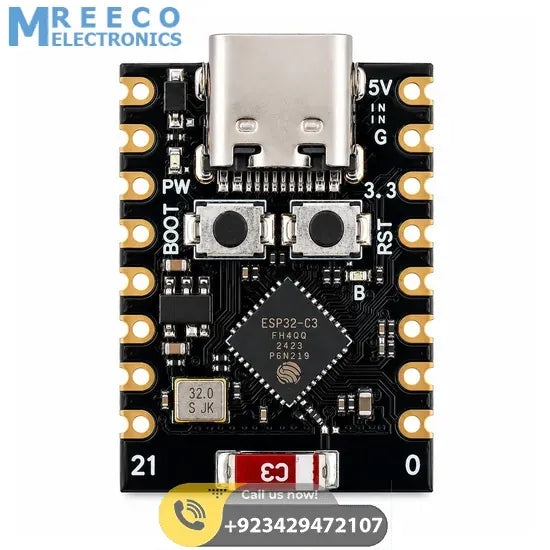

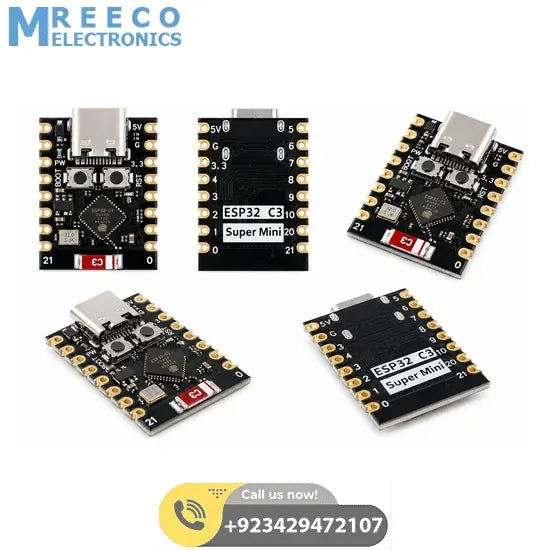

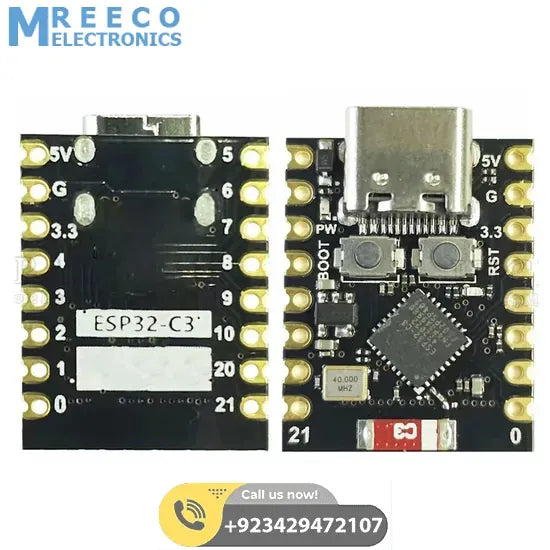

HW-466AB ESP32 C3 Super Mini Development Board ESP32-C3FH4

The ESP32-C3 is a cost-effective, low-power Wi-Fi and Bluetooth dual-mode chip, ideal for IoT and wearable applications. Featuring a RISC-V single-core processor at 150MHz, it integrates Wi-Fi 4 and Bluetooth 5.0.

Key Features:

• Dual-Mode Connectivity: 2.4GHz Wi-Fi and Bluetooth LE 5.0.
• Processor: RISC-V 32-bit single-core, 150MHz (up to 160MHz).
• Memory: 400KB SRAM, 384KB ROM.
• Low Power Consumption: Designed for efficient IoT applications.
• Development Support: ESP-IDF, MicroPython, Arduino, C/C++, VSCODE.

Applications:

• IoT Devices
• Smart Home
• Sensor Networks
• Wearable Technology
• Monitoring, Video, and Photography Applications
• Wireless Communication Solutions

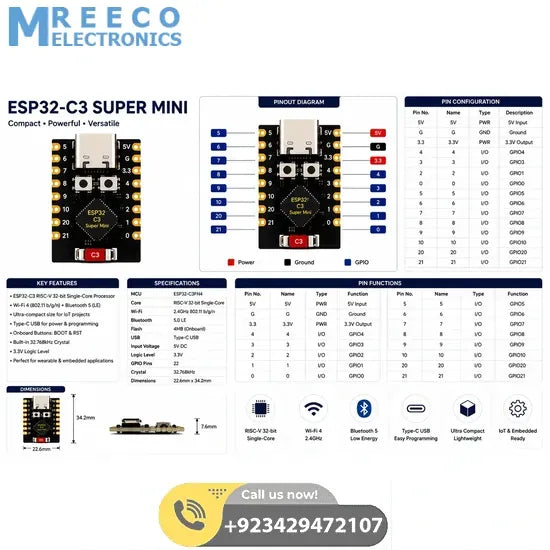

Specifications:

• Processor: RISC-V 32-bit Single-Core
• Main Frequency: 150MHz (up to 160MHz)
• Wireless: Wi-Fi 4, Bluetooth 5.0
• Memory: 400KB SRAM, 384KB ROM
• Power Supply: 3.3V - 6V (via 5V pin or USB)
• Dimensions: 27.178 x 38.227 x 1.524mm

Power Supply Notes:

For external power, connect the positive (+) to the 5V pin and ground (-) to GND. Do not connect USB and external power simultaneously.

Package Includes:

• 1 x ESP32-C3 Development Board ESP32 SuperMini WiFi Bluetooth
