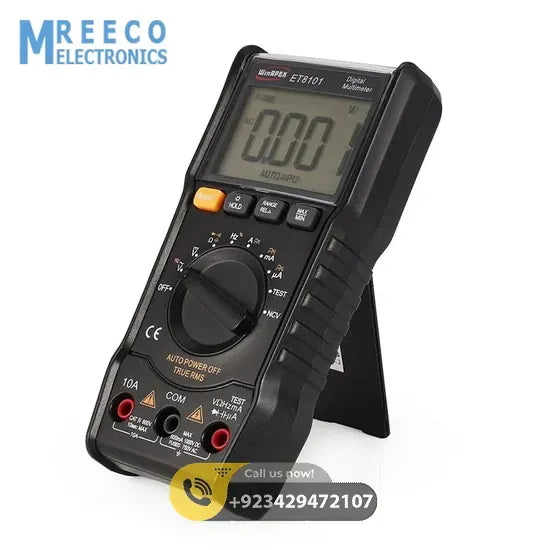

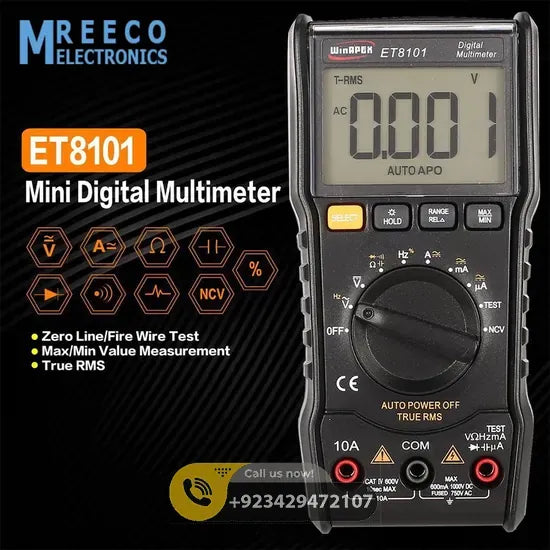

ET8101 True-RMS Digital Multimeter AC/DC Voltage Current Tester with Resistance Capacitance Diode NCV Measurement

ET8101 True-RMS Digital Multimeter AC/DC Voltage Current Tester with Resistance Capacitance Diode NCV Measurement

1. Portable design: Shockproof, anti-drop, anti-skid, anti-static design, suitable for single hand operating with a comfortable feeling.
2. Precise measure: A digital multimeter with backlight, 5999 counts(5 5/6), achieve more accurate measurements.
3. Clear read: With large LCD backlight display and data hold function, convenient to read data.
4. Function: DC/AC voltage current, resistance, capacitance, data hold, maximum and minimum value test, backlight, automatic power off, NCV test, continuity buzzer test with LCD, over load protection, short-circuit protection, live fire wire identification, frequency test, duty cycle measurement, diode test.

Application:

• Widely reserved in schools, automotive maintenance, factories, etc.
• This ET8101 is a portable digital multimeter, high reliability and portability.
• A perfect tool for the laboratory, factory and home.
• The product is battery powered, ideal for home users, maintenance enthusiasts, electricians and technician.

ET8101 True-RMS Digital Multimeter AC/DC Voltage Current Tester Specifications:

• Model: ET8101
• Material: ABS Plastic
• Display: LCD Display with Backlight, 5999 counts(5 5/6)
• Range Control: Automatic Range and Manual Range
• Operating Environment: IEC61010-1, CAT III 600V
• DC Voltage Range: 6V/60V/600V/1000V
• DC Voltage Resolution: 0.001V/0.01V/0.1V/1V
• AC Voltage Range: 6V/60V/600V/750V
• AC Voltage Resolution: 0.001V/0.01V/0.1V/1V
• DC Current Range: 600μA/6000μA/60mA/600mA/6A/10A
• DC Current Resolution: 0.1μA/1μA/10μA/100μA/0.01A
• AC Current Range: 600μA/6000μA/60mA/600mA/6A/10A
• AC Current Resolution: 0.1μA/1μA/10μA/100μA/0.01A
• Frequency Range: 10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/10MHz
• Frequency Resolution: 0.01Hz/0.1Hz/1Hz/10Hz/100Hz/1kHz/10kHz
• Resistance Range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ
• Resistance Resolution: 0.1Ω/1Ω/10Ω/100Ω/1kΩ/10kΩ
• Capacitance Range: 60nF/600nF/6μF/60μF/600μF/6mF/30mF
• Capacitance Resolution: 10pF/100pF/1nF/10nF/100nF/11μF/10μF
• Duty Cycle: 0.1%~99%
• Duty Cycle Resolution: 0.1%
• Sampling Time: About 3 times/second
• Working Temperature/Humidity: 0~40℃, <80%
• Storage Temperature/Humidity: -10~50℃, <70%
• Data Hold: Yes
• Maximum And Minimum Value Test: Yes
• Backlight: Yes
• Automatic Power off: Yes
• NCV Test: Yes
• Continuity Buzzer Test: Yes
• Over Load Protection: Yes
• Short-circuit Protection: Yes
• Live Fire Wire Identification: Yes
• Frequency Test: Yes
• Duty Cycle Measurement: Yes
• Diode Test: Yes
• Power Supply: 2 * 1.5V AAA Batteries (Not Included)
• Screen Size: 48*30mm/ 1.9*1.2in

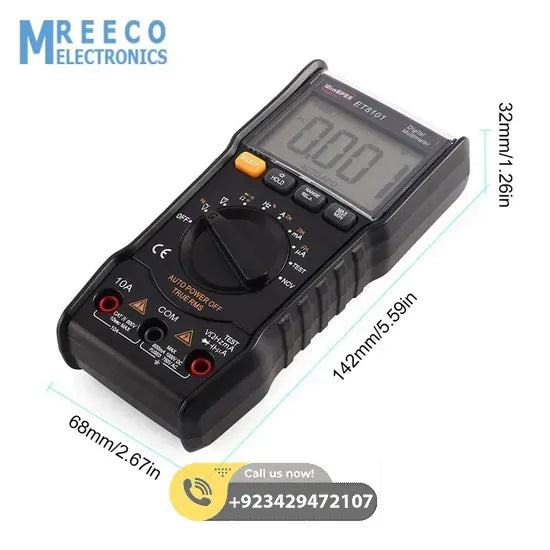

• Item Size: 145*70*32mm/ 5.7*2.8*1.3in
• Item Weight: 166g/ 5.9oz
• Color: Black

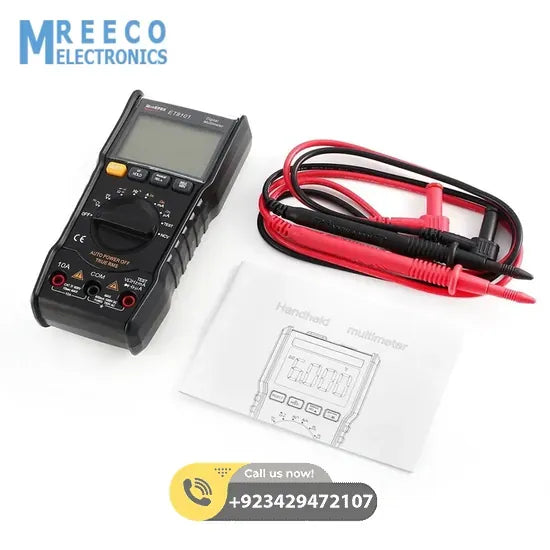

Package Includes:

• 1 * Digital Multimeter
• 1 * Pair Leads Pens

Notes:

1. Due to the difference between different monitors,the picture may not reflect the actual color of the item.
2. Due to different personal measuring techniques,there might be 1-3cm error of the physical.Thank you!

• ET8101 Digital Multimeter 5999 Counts True RMS AC/DC Volt Amp Ohm Capacitance Frequency NCV Diode Continuity Tester
