Description

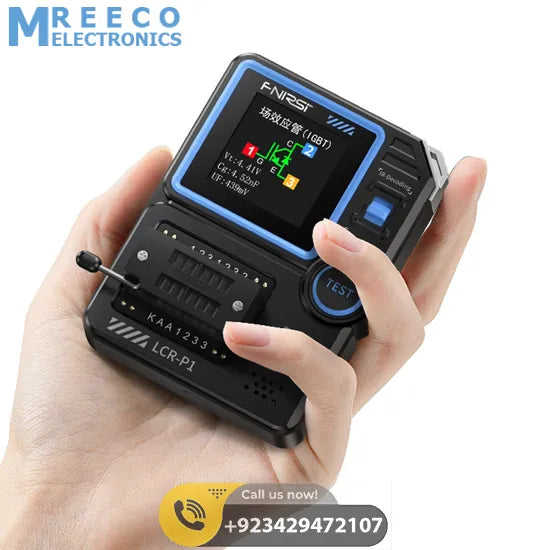

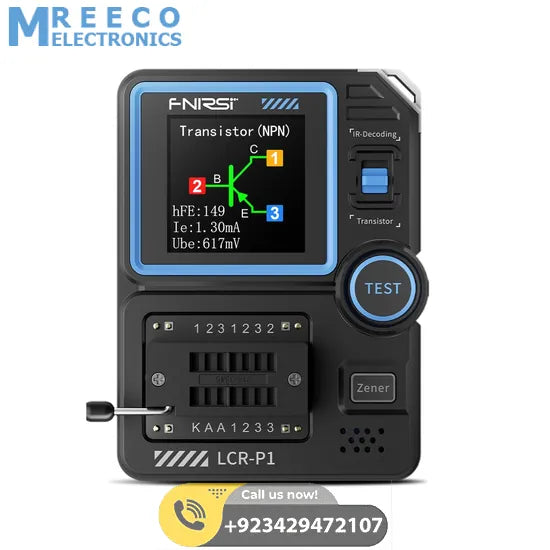

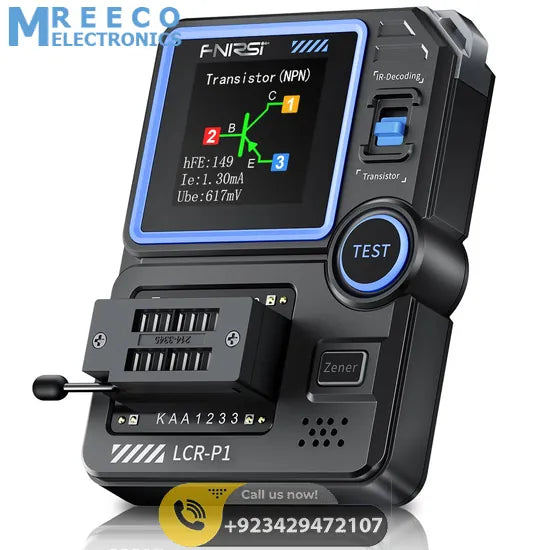

The LCR-P1 Transistor Tester is a high-precision, multifunctional electronic testing device designed specifically for electronic engineers, technicians, and enthusiasts.This device is intended for detecting and analyzing the performance and characteristics of semiconductor components such as transistors, diodes, triodes, and field-effect transistors (FETs).Equipped with a color screen, it allows for multi-parameter measurement of various components, automatically identifies the type and pin arrangement of the tested component, simplifying the operation process and enhancing testing efficiency.
Key Features

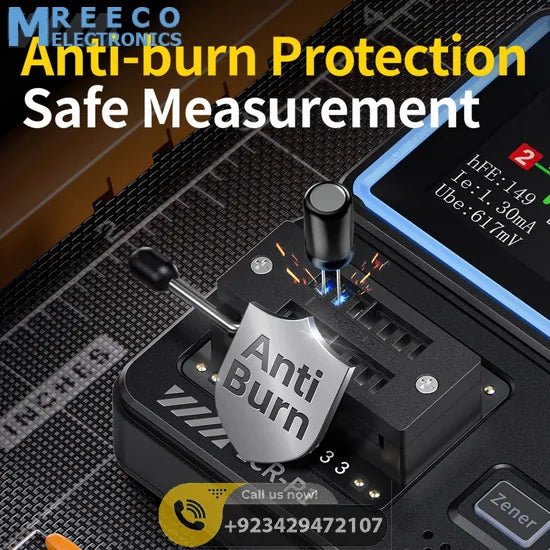

- Intelligent anti-burning design: Uncharged capacitors automatically discharge upon insertion, with a user-friendly protection mechanism to prevent damage.

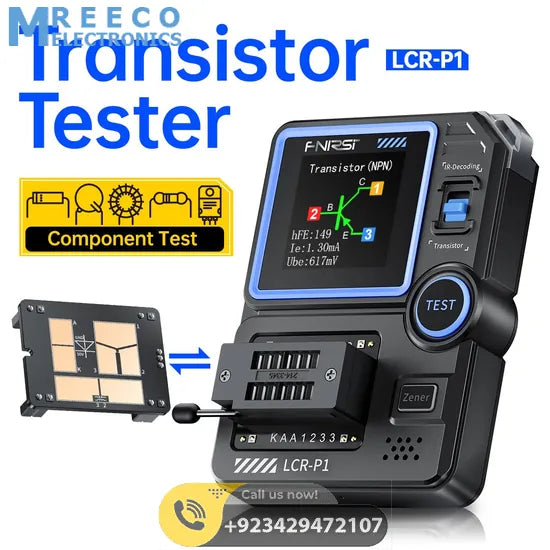

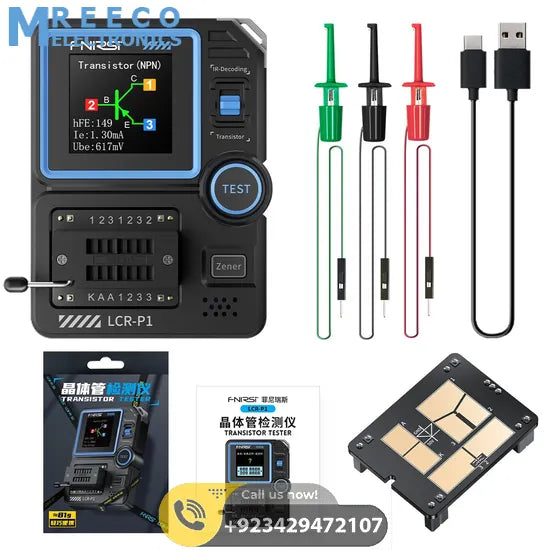

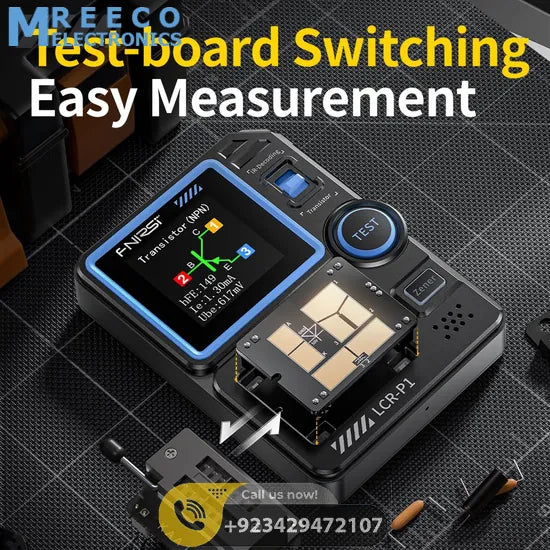

- Alternate Measuring Modes: Innovatively incorporates replaceable test boards, easily tackling diverse test needs for unprecedented convenience and efficiency.

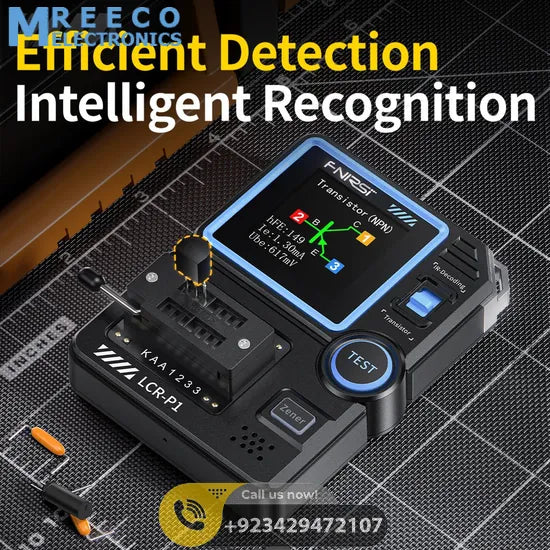

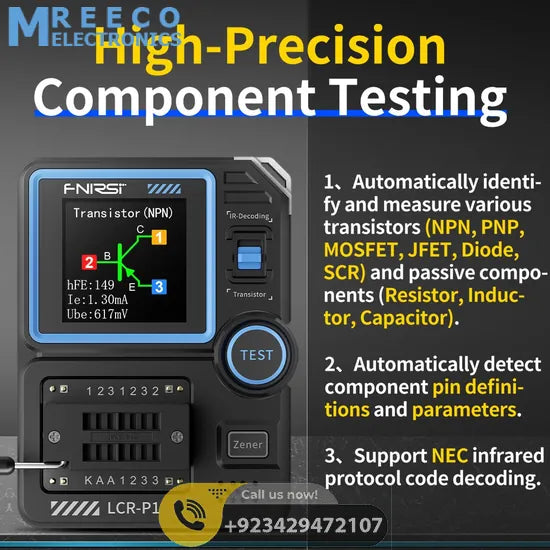

- Intelligent Recognition Components：Simply Plug & Clamp, One-Button Quick Identification of Component Parameters, Saving Time and Effort.
- Zener diode independent measurement: Independent measurement channel for measure diodes, measuring 0.01-32V with pre-measurement power supply for precise results.
Specifications
Brand
FNIRSI
Model
LCR-P1
Product Size

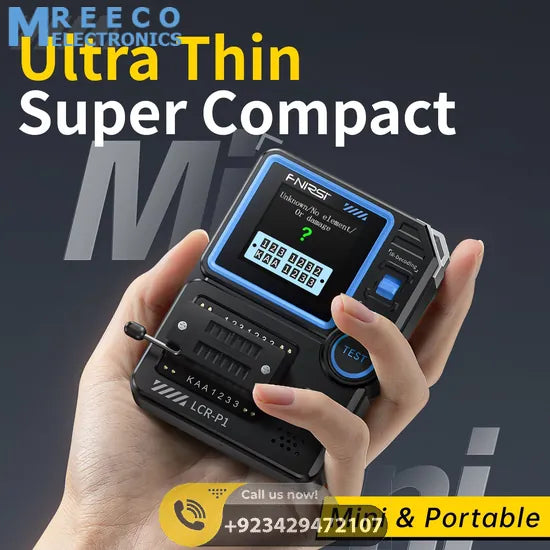

71x87x28mm
Power Supply
Battery
Display Type
Digital Only
Transistor range
10 < B < 600
Capacitance Range
25pF-100mF
Inductance range
10μh-1000μh
Resistance Range
0.01Ω-50MΩ
Diode
Forward voltage < 4.5V
Voltage Regulator Diode
0.01-4.5V / 0.01-32V
Field-Effect Transistor
JFET / IGBT / MOSFET
Bidirectional Thyristor
Turn-on voltage < 5V, Gate trigger current < 6mA

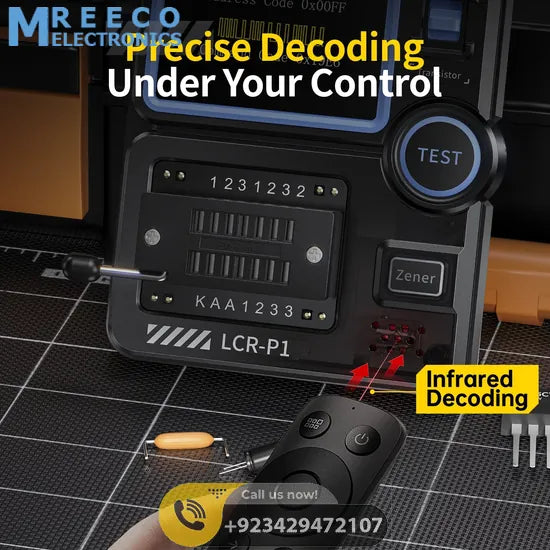

IR Decoding
NEC protocol IR code
Display
1.44'' Color Screen
Power Supply
300mAh lithium battery
Operating Temperature
0~40℃
Charging
USB Type-C, 5V/1A
Anti-burn protection
supported
Firmware upgrade
supported
Product Details
