Description
**Advanced Signal Analysis and Generation**

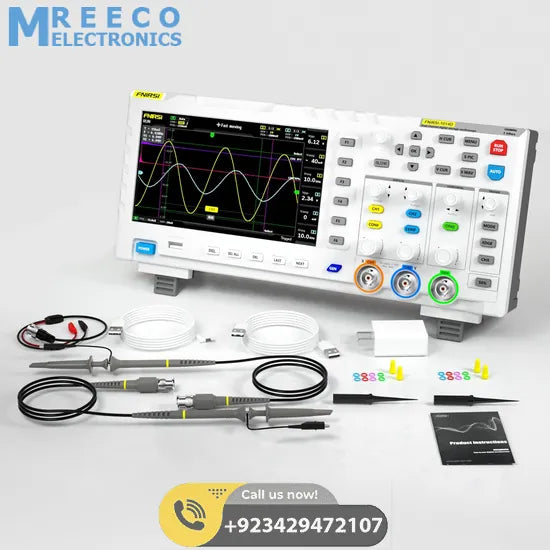

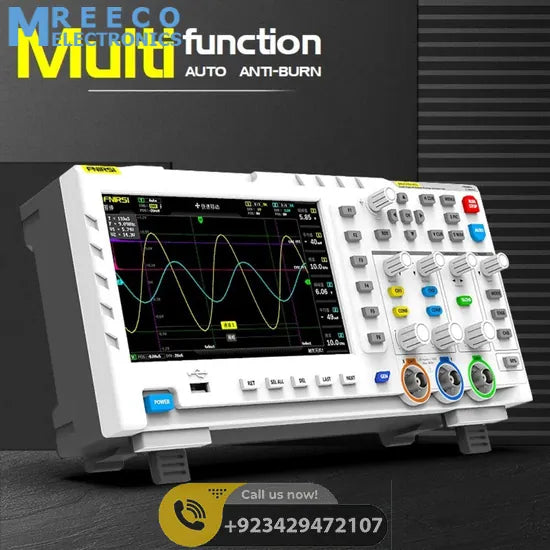

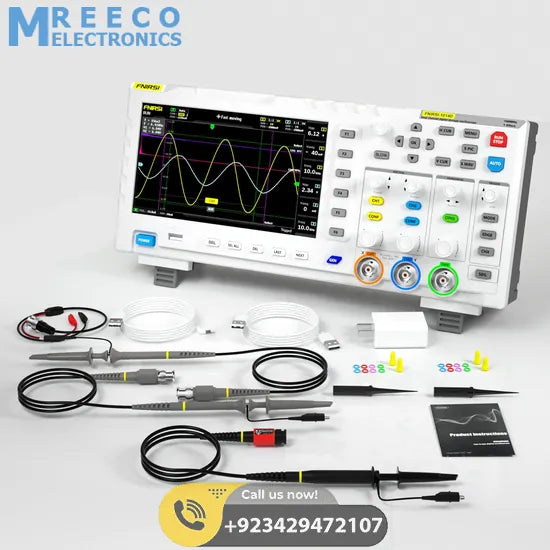

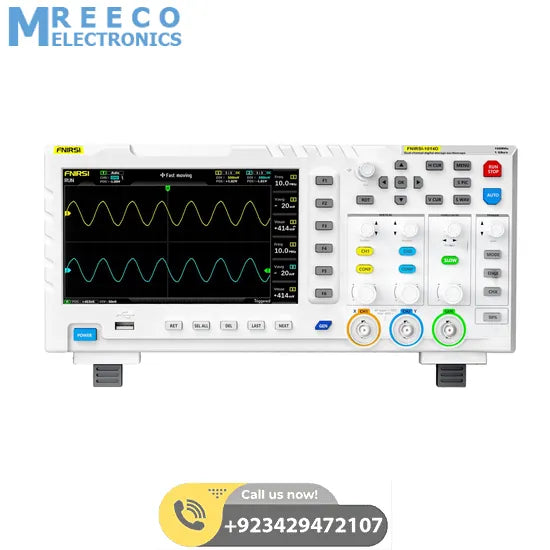

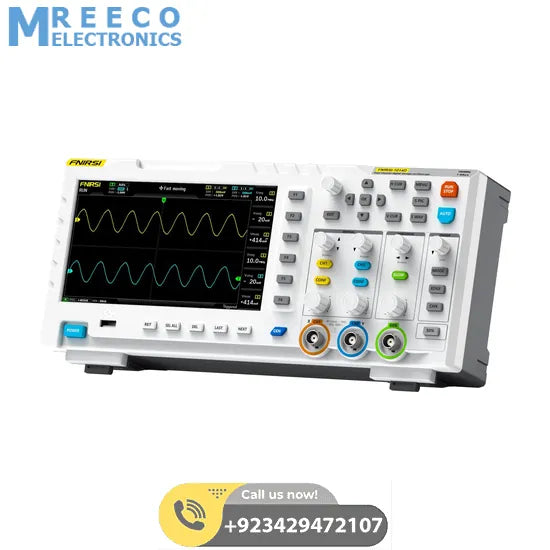

The FNIRSI-1014D Digital Oscilloscope is a versatile tool designed for both hobbyists and professionals in the electrical field. With a dual channel input and a 100MHz*2 analog bandwidth, this oscilloscope is capable of capturing signals with precision and clarity. The 1GSa/s real-time sampling rate ensures that even the fastest signals are captured without any loss of detail. The oscilloscope's trigger modes, including single, normal, and auto, allow for flexible triggering options, making it suitable for both periodic and aperiodic signals.
**Comprehensive Signal Generation and Storage**
The FNIRSI-1014D oscilloscope is not just a signal analyzer; it doubles as a signal generator. With its built-in DDS function, it can produce 12 standard function signals and a customizable chopping signal. The chopping output feature, with a 2.5vpp amplitude, is particularly useful for generating irregular shaped signals. The oscilloscope's storage depth of 240Kbit and 1GB storage space allow for the storage of up to 1000 screenshots and 1000 sets of waveform data, making it an ideal tool for capturing and analyzing complex signals.
**User-Friendly Interface and Convenience**
The oscilloscope's user-friendly interface is designed to enhance the user experience. The 7-inch 800 * 480 resolution color TFT LCD display provides bright and clear visuals, while the cursor measurement function simplifies manual reading of amplitude and frequency parameters. The one-button auto feature automatically adjusts the oscilloscope for optimal viewing, and the one-button waveform storage and screenshot function make it easy to capture and save important waveforms. The powerful waveform image manager allows for efficient browsing, viewing, and analysis of captured signals, making it a valuable tool for both hobbyists and professionals.
Features:

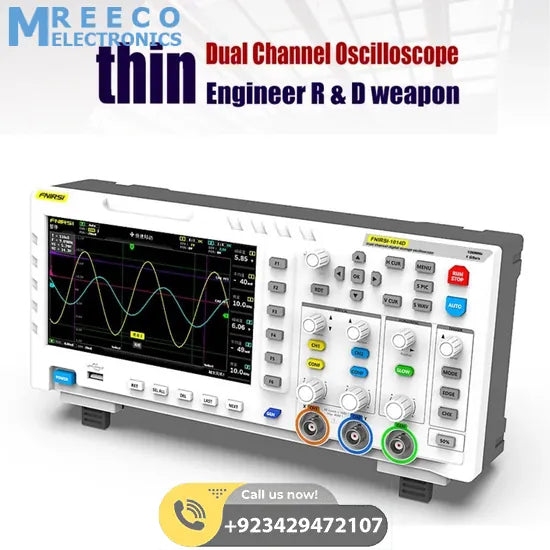

- Dual Channel

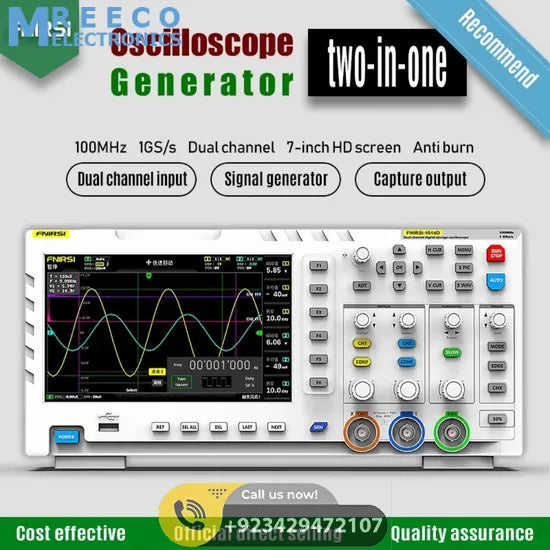

- 2 in 1: Digital Oscilloscope + DDS Function Signal Generator
- 1GSA/S sampling rate, 100MHz * 2 analog bandwidth.
- Complete trigger function (single/normal/automatic).
- Capable of storing up to 1000 customized chopping signals.
- high-voltage protection module.
- One-button AUTO and adaptive trigger (25%, 50%, 75%).
- 7-inch 800*480 resolution high-definition LCD screen.
- Powerful Waveform Picture Manager.

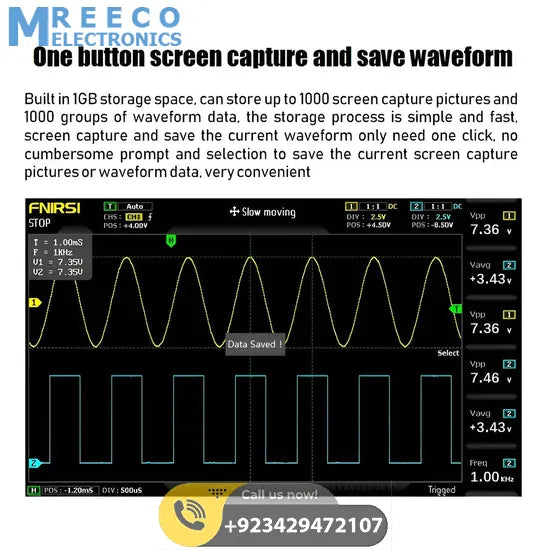

- One-key Screenshot and Saving.

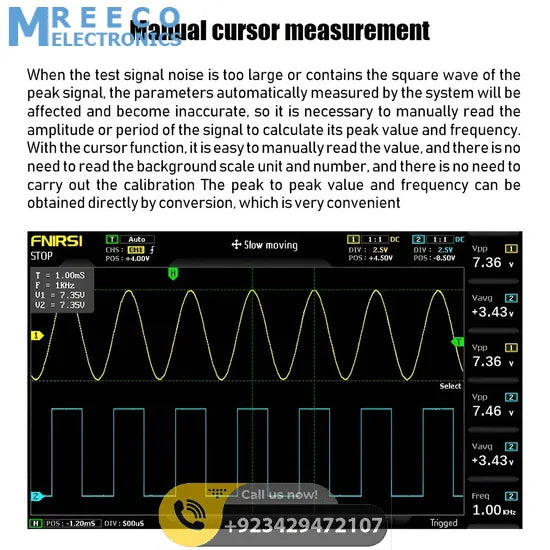

- Cursor measurement function.
- USB Picture Export

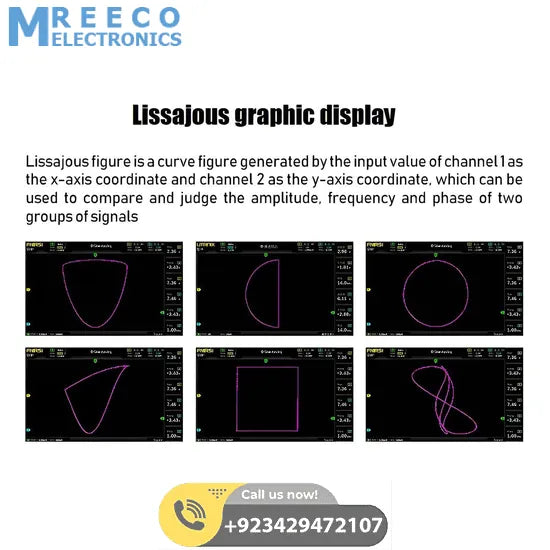

- Lissajous Graphic Display & FFT Viewing.
- Ideal for both periodic analog and aperiodic digital signals.

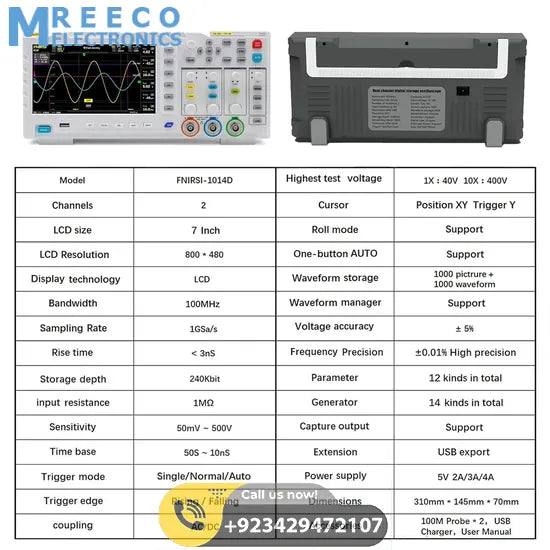

Digital Oscilloscope Specification:
Signal Generator Specification:
