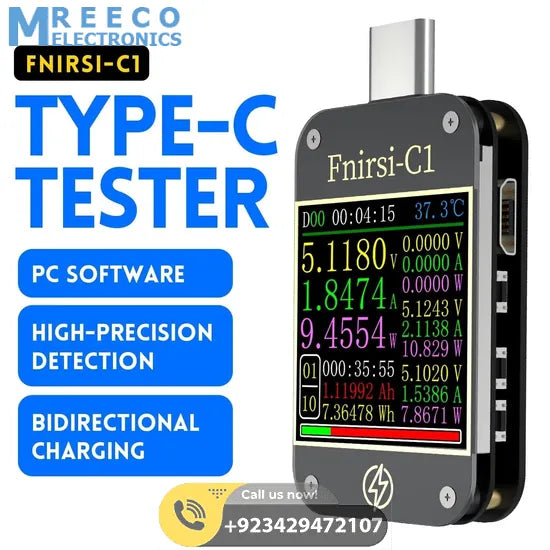

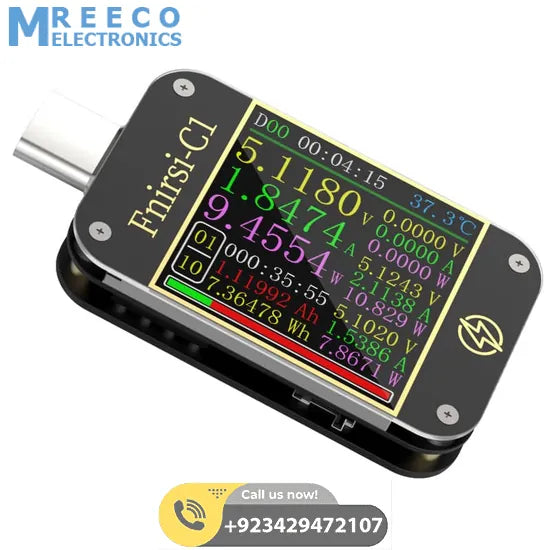

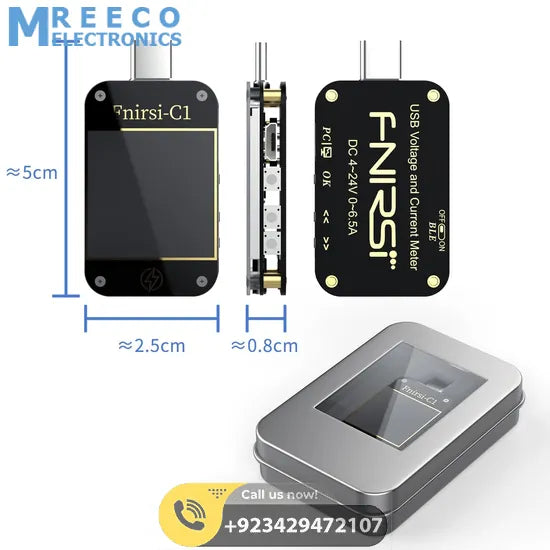

Description
Brand
FNIRSI
Model
C1
Dimensions
50*25*8cm
Weight
47g / 1.66oz
Display Type
Digital Only
Power Supply
DC
Operating Temperature
-10℃ ~ +80℃
Accuracy Class
0.1%
Monitor Voltage
Range: 4~24V
Resolution: 0.00001V
Accuracy: ±(0.2‰+2)
Resolution: 0.00001V
Accuracy: ±(0.2‰+2)
Monitor Current
Range: 0~6.5A
Resolution: 0.00001A
Accuracy: ±(0.5‰+2)
Resolution: 0.00001A
Accuracy: ±(0.5‰+2)
Monitor Power
Range: 0~130W
Resolution: 0.00001W
Accuracy: ±(0.5‰+2)
Resolution: 0.00001W
Accuracy: ±(0.5‰+2)
Load Equivalent Internal Resistance
Range: 0~9999.9Ω
Resolution: 0.0001Ω
Accuracy: ±(0.5‰+2)
Resolution: 0.0001Ω
Accuracy: ±(0.5‰+2)
D+/D- Voltage
Range: 0~3.3V
Resolution: 0.001V
Accuracy: ±(1.0‰+2)
Resolution: 0.001V
Accuracy: ±(1.0‰+2)
Capacity
Range: 0~9999.99Ah
Resolution: 0.00001Ah
Resolution: 0.00001Ah
Energy Used
Range: 0~9999.99Wh
Resolution: 0.00001Wh
Resolution: 0.00001Wh
Internal Resistance of The Cable
Range: 0~9999.9Ω
Resolution: 0.0001Ω
Resolution: 0.0001Ω
Equipment Running Time
Range: 99d 23h 59m 59s
Resolution: 1 second
Resolution: 1 second
Record Time
Range: 999h 59m 59s
Resolution: 1 second
Resolution: 1 second
Compatibility Issues：
①There may be incompatibilities problems of the PC software with some Windows systems, if you really need it, please install and test the software before buying the product.

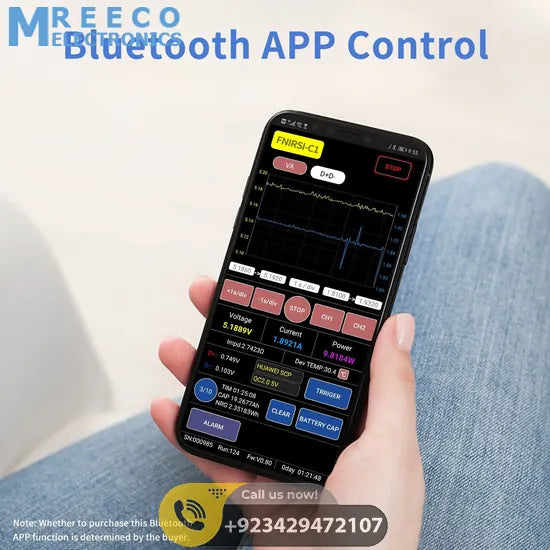

②There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need APP, please install and test the APP before buying the product.
③If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.
④Please do install and test the APP if you use Samsung mobile phone.
