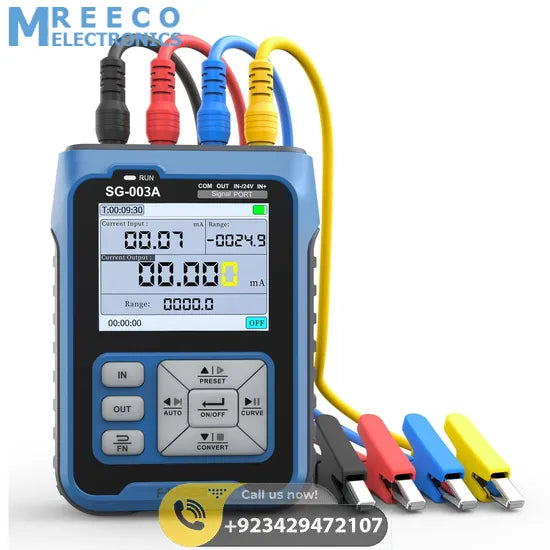

Description
FNIRSI SG-003A signal generator is mainly used for debugging of industrial field PLC, process instrumentation, electric valve and so forth. Friendly operation interface is easy to use.
The FNIRSI SG-003A signal generator is small and light but has a long standby time and high precision.Easy to carry when you go out to work.

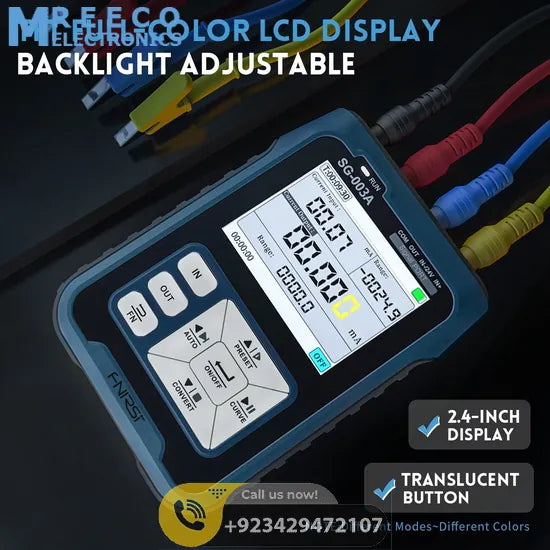

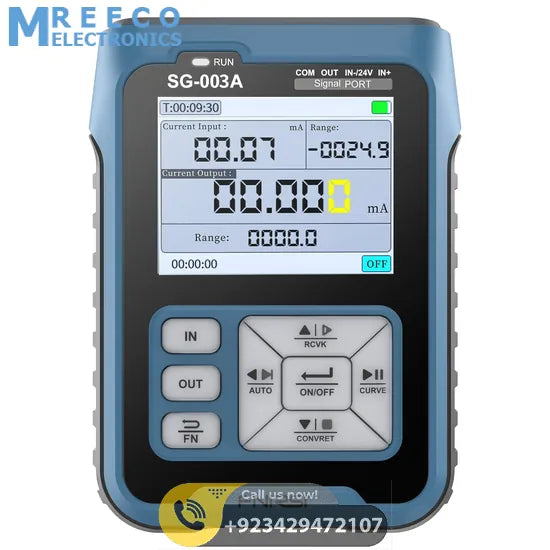

Adjustable button backlight and high-definition TFT color LCD screen make it more convenient for users to operate at night and during the day.
The FNIRSI SG-003A signal generator is small and light but has a long standby time and high precision.Easy to carry when you go out to work.
Adjustable button backlight and high-definition TFT color LCD screen make it more convenient for users to operate at night and during the day.

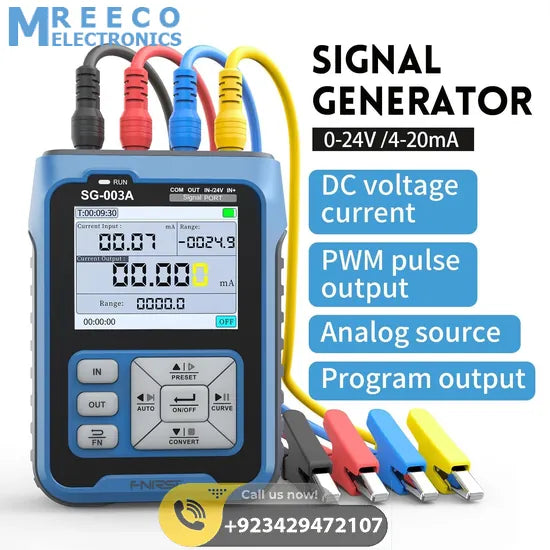

Features
- Expect with the conventional signal input and output functions.
- Signals displayed as physical or engineering values, corresponding linearly.
- Voltage and current have automatic output function,it can choose a single rise,three modes of single drop and cycle.
- Four preset groups for quick output adjustment.
- With input to output conversion,voltage conversion active current mode,passive mode and current conversion voltage mode.
- The output has a custom function,the upper and lower output limits can be set arbitrarily.
- Displays input and output signal trends with adjustable sampling.
- Automatically adjusts curve within specified range over time.
- Voltage input diagram,current input diagram,the frame rate is 10 frames.
- PWM output can set frequency and duty cycle respectively.

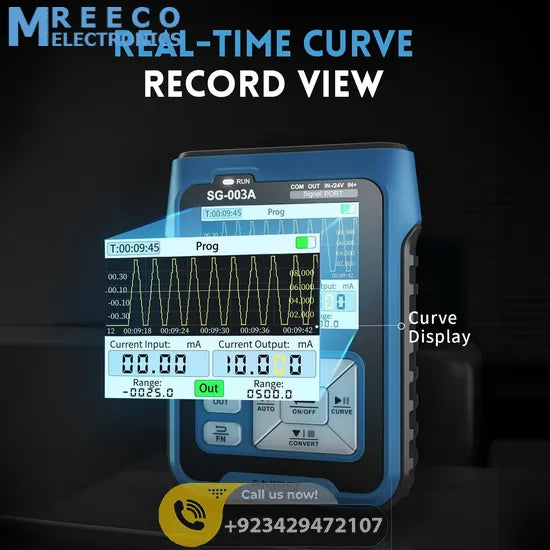

- Real-time curve:Real-time observation of changes in voltage and current
- It is powered by a large-capacity lithium battery and is charged with a Type-c interface (5V).The capacity of the lithium battery is 3000mHA, fully charged in 4-6 hours, standby time is 26 hours, the using time varies, based on the usage(It can be 8-10 hours with 20mA continuous output)
- The high-definition TFT color LCD screen makes the reading more eye-catching.The resolution is 240*320.Low power consumption,Maximum power consumption: 0.32W
- FNIRSI SG-003A communicates via RS485 with configuration software or PLC.
- Firmware upgrade via USB emulated U disk.

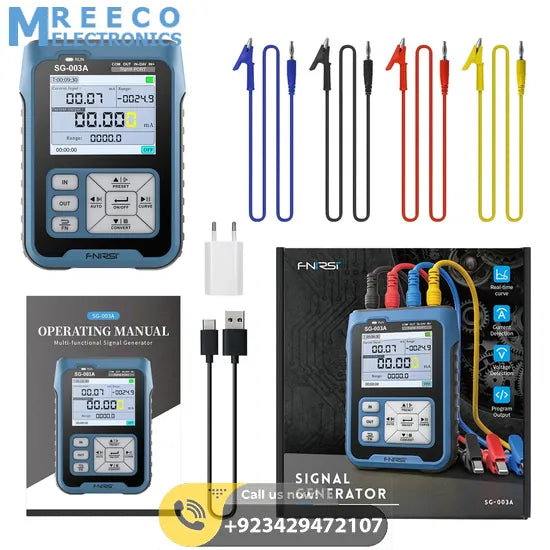

Specifications
Brand
FNIRSI
Model
SG-003A
Activce Current Output
Range: 0~24mA
Resolution: 0.01mA
Precision: ±(0.1%+0.005)
Max Load: 750Ω
Resolution: 0.01mA
Precision: ±(0.1%+0.005)
Max Load: 750Ω
Passive Current Output
Range: 0~24mA
Resolution: 0.01mA
Precision: ±(0.1%+0.005)
External Power Supply: 0~30V
Resolution: 0.01mA
Precision: ±(0.1%+0.005)
External Power Supply: 0~30V
Voltage output
Range: 0~24V
Resolution: 0.01V
Precision: ±(0.1%+0.005)
Resolution: 0.01V
Precision: ±(0.1%+0.005)
24V Loop
Range: 0~24mA
Resolution: 0.01mA
Precision: ±(0.1%+0.005)
Resolution: 0.01mA
Precision: ±(0.1%+0.005)
Frequency/PWM Output
Range: 0~9999Hz
Resolution: 5 digits
Precision: ±2%
Resolution: 5 digits
Precision: ±2%
Current Input
Range: 0~24mA
Resolution: 0.01mA
Precision: ±(0.1%+0.005)
Resolution: 0.01mA
Precision: ±(0.1%+0.005)
Voltage Input
Range: 0~30V
Resolution: 0.01V
Precision: ±(0.1%+0.005)
Resolution: 0.01V
Precision: ±(0.1%+0.005)
Battery
A single 3.7V 3000mAh lithium battery power supply
Display Size
2.4 Inch TFT Full Color LCD Screen
Size
L82*W27*H112mm
Weight
165g
Program Automatic Lift Output
Support
Preset Output
Support
Signal Linear Conversion Output
Support
Output Timing
Support
Modbus Slave
Support
USB Firmware Upgrade
Support
Real-time Curve
Support
