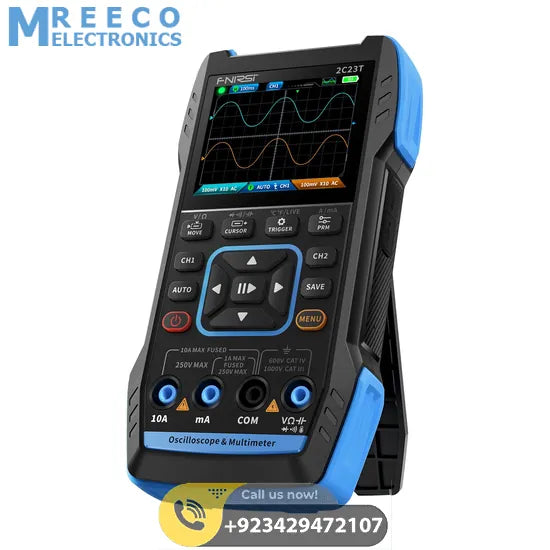

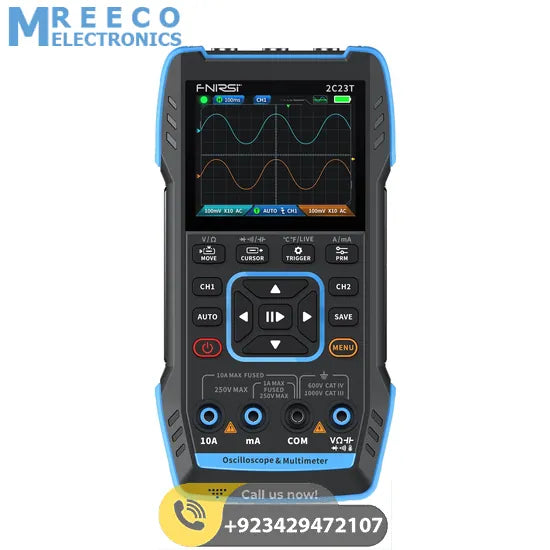

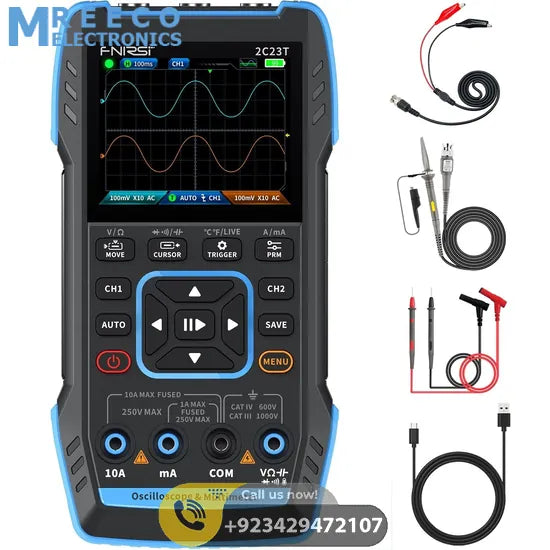

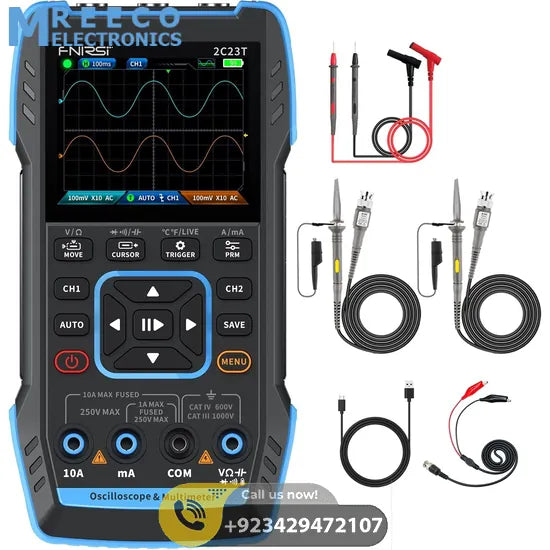

FNIRSI® 2C23T Handheld Dual Channel 3-in-1 10MHz 50MS/s Oscilloscope Multimeter DDS Function Generator
FNIRSI

FNIRSI® 2C23T Handheld Dual Channel 3-in-1 10MHz 50MS/s Oscilloscope Multimeter DDS Function Generator in Pakistan

SKU: 2C23TCategory: Lab Tools
Rs 18,200

Only 5 left in stock

The FNIRSI-2C23T is a versatile 3-in-1 dual-channel digital oscilloscope designed for maintenance and development work. It combines an oscilloscope, multimeter, and signal generator in one device. The oscilloscope fea...

Ask about this product on WhatsApp
  • Fast deliveryFree shipping on prepaid orders above Rs. 10,000
  • Secure payment100% secure payments by Meezan Bank
  • SupportMonday to Saturday, 11:00 AM to 8:00 PM
  • ReturnsSee our return and refund policy

Description

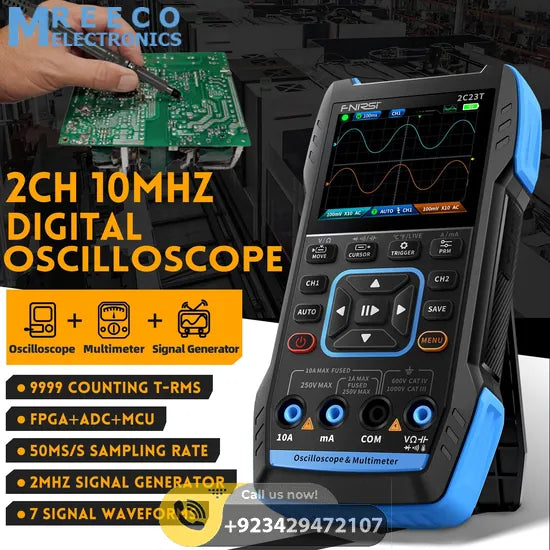

The FNIRSI-2C23T is a versatile 3-in-1 dual-channel digital oscilloscope designed for maintenance and development work. It combines an oscilloscope, multimeter, and signal generator in one device. The oscilloscope features FPGA+MCU+ADC architecture, 50 MS/s sampling rate, 10 MHz bandwidth, and high-voltage protection, supporting peak voltage measurements up to ±400V. It allows saving and analyzing waveform screenshots.

The multimeter offers 4-digit, 10,000-point true RMS measurements for AC/DC voltage, current, resistance, capacitance, diode, and continuity. The built-in DDS signal generator outputs 7 signal types, with adjustable frequency (up to 2 MHz), amplitude, and duty cycle.

The device has a 2.8" high-definition LCD (320x240 resolution) and a 3000mAh rechargeable battery with up to 6 hours of standby time, offering compact size and portability for a wide range of users including professionals, students, and hobbyists.



Device Parameters

Brand
FNIRSI
Model
2C23T

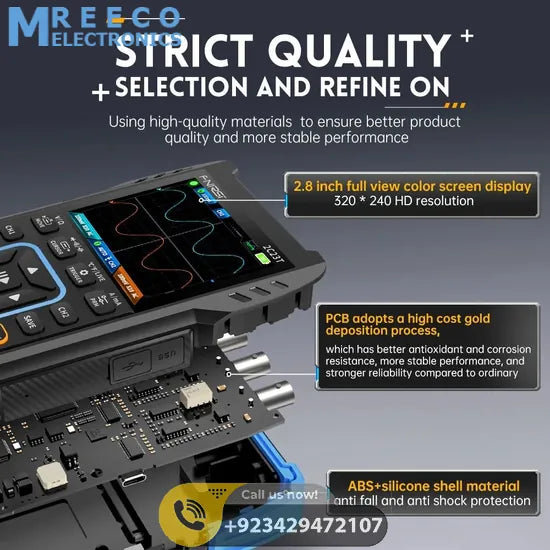

Display Screen
2.8 inch HD color screen
Resolution Ratio
320*240

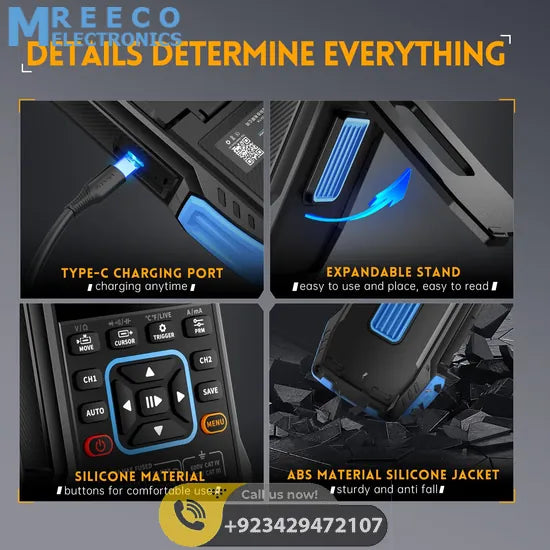

Charging Specifications
TYPE-C (5V/1A)

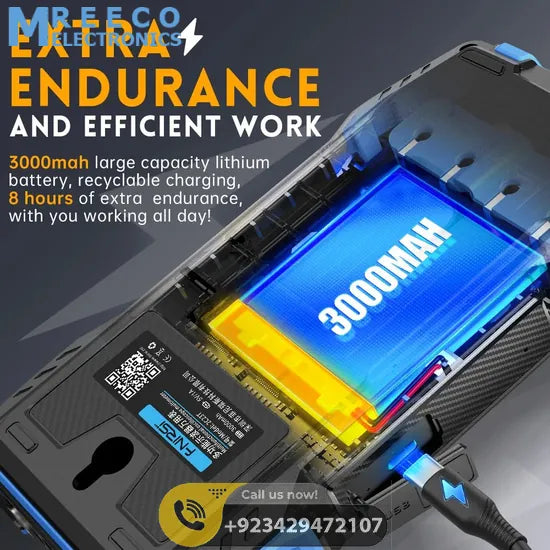

Battery
3000mAh lithium battery
Support Functions
Oscilloscope, Signal generator, Multimeter
Language
English
Standby Time
6h (laboratory theoretical maximum)
Product Volume
167*89*35mm
Weight
300g


Oscilloscope Parameter

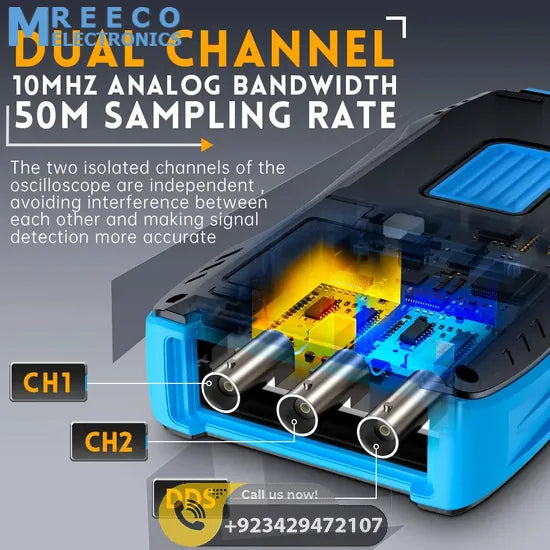

Channel
Dual channel
Sample Rate
50M
Analog Bandwidth
10M(dual channel independent 10M)
Storage Depth
32kb
Impedance
1MΩ
Time Base Range
50ns-10s
Vertical Sensitivity
20mV/div - 10V/div (X1)
Maximum Measured Voltage
±400V
Trigger Mode
AUTO / Normal / Single
Trigger Type
Rising edge, Falling edge
Display Mode
YT/Scroll
Coupling Method
AC/DC
Save Waveform Screenshot
Yes
Export Waveform Images
Yes


Multimeter Parameter

DC Voltage
Range: 9.999V / 99.99V / 999.9V
Accuracy: ±(0.5%+3)
AC Voltage
Range: 9.999V / 99.99V / 750.0V
Accuracy: ±(1%+3)
DC Current
Range: 9999μA / 99.99mA / 999.9mA / 9.999A
Accuracy: ±(1.2%+3)
AC Current
Range: 9999μA / 99.99mA / 999.9mA / 9.999A
Accuracy: ±(1.5%+3)
Resistance

① Range: 9.999MΩ / 999.9KΩ / 99.99KΩ / 9.999KΩ / 999.9Ω
Accuracy: ±(0.5%+3)

② Range: 99.99MΩ
Accuracy: ±(1.5%+3)

Capacitance

① Range: 999.9μF / 99.99μF / 9.999μF / 999.9nF / 99.99nF / 9.999nF
Accuracy: ±(2.0%+5)

② Range: 9.99mF / 99.99mF
Accuracy: ±(5.0%+20)

Temperature
Range: (-55~1300°C) / (-67~2372°F)
Accuracy: ±(2.5%+5)
Diode
Yes
Continuity Test
Yes
Live Line Detection
Yes


Signal Generator Parameter

Channel
Single channe!
Frequency
1Hz-2MHz
Amplitude
0.1-3.3V
Output Waveform
Sine wave, square wave, triangular wave, full wave, half wave, noise wave, DC Output
Duty Cycle
0-100%


More Product Detail

Specifications

BrandFNIRSI
CategoryLab Tools
SKU2C23T
AvailabilityIn stock

Shipping & Returns

Delivery across Pakistan. Free shipping on prepaid orders above Rs. 10,000.

Please read our return and refund policy before ordering.
