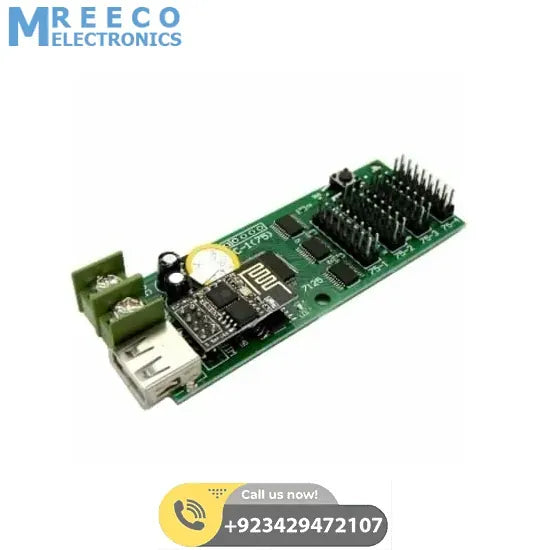

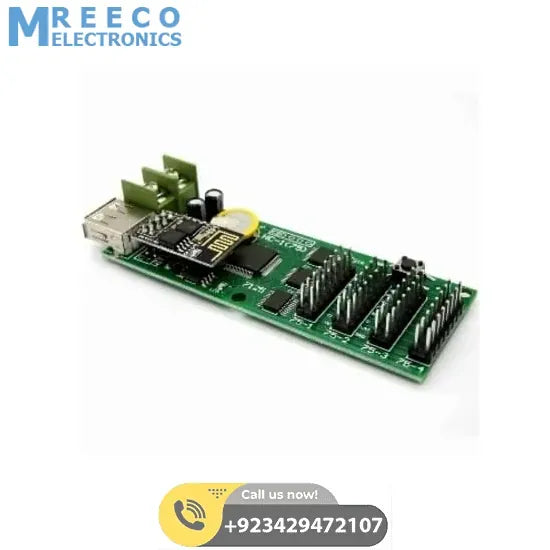

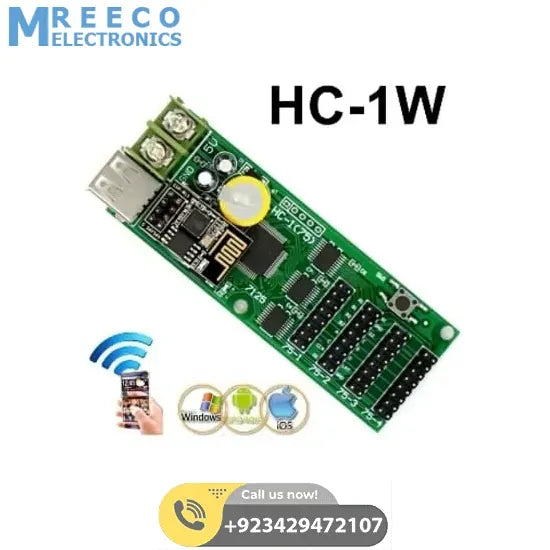

Full Color LED Display Control Card HC-1W Wifi And Android APP support display Controller With 4*hub75b

The HC-1W LED matrix controller cards are for use with LED panels using the HUB-75 signal/pin configuration. The content is loaded via a USB flash drive (referred to in the software and manual as U disk) or wirelessly and is programmed via some Windows software.U-Disk Controller card has a WIFI function and can support mobile phone APP [Android], support through the computer

• wireless card to send
• . WIFI LED Display Controller can support a variety of special effects in the background,
• magic frame/ordinary text effects/dynamic text effects
• , and
• support full time playing regularly
• . This Full-Color Window LED Display card is designed for small size display for RGB Text, Images.



  Features Of HC-1W LED Matrix Card with Wifi:

  • U disk update program, U disk set screen parameters, LED display asynchronous control card
  • Full color control pixels:max 832*32,416*64,544*48 pixel
  • WIFI function: support mobile phone APP [Android], support through the computer
  • wireless card to send
  • Interface: 4xhub75B, through transfer plate, can be transferred to 4*hub40A and 8*hub08 port
  • Grayscale:16 levels
  • Play mode: support taking turns to show an image, support 99 showing effect
  • Time: digital clock/analog clock/timer/lunar/solar terms
  • Test button: support (used to do the test card)
  • Content support: text/subtitle/picture/animation/time/dial/timing/ SWF and GIF animation
  • With text, images animation effects, choose to use, easy to operate
  • GIF animation smoothly play, dynamic effect, compelling
  • Brightness adjustment: multistage brightness is optional
  • Background effect: support for a variety of special effects in the background
  • magic frame/ordinary text effects/dynamic text effects
  • support full time playing regularly

  Specifications Of Full-Color Window LED Display Wifi LED Display Card HC-1W :

  1. Working voltage: DC4V~DC 6V
  2. Temperature Range: -20 degree~80 degree
  3. Power Consumption: <0.5W
  4. Display Function: Animation
  5. Model Number: HC-1W
  6. Pixels: max 832*32,416*64,544*48 pixel
  7. Scan type: Support 1/16,1/8,1/4,1/2,static
  8. Communication: USB-disk + WIFI
  9. WiFi connection password: 12345678
  10. software setup password: 168
  11. Application: can support P3,p4,p5,p6,p10,p13.33,p16,p20 etc. full color modules

  Package Include:

  • 1x Full color LED Display WIFI Controller HC-1W
