Description

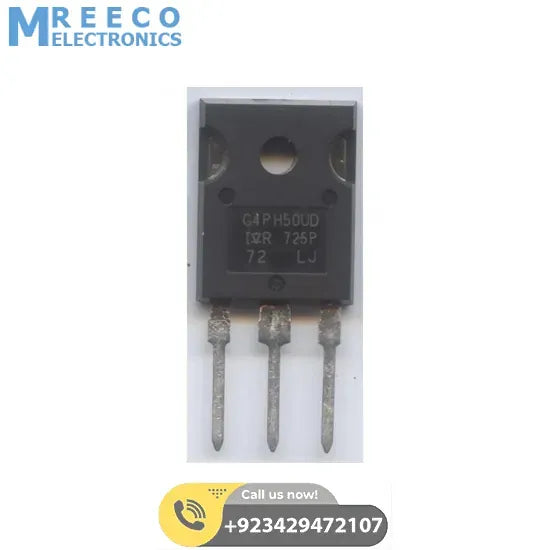

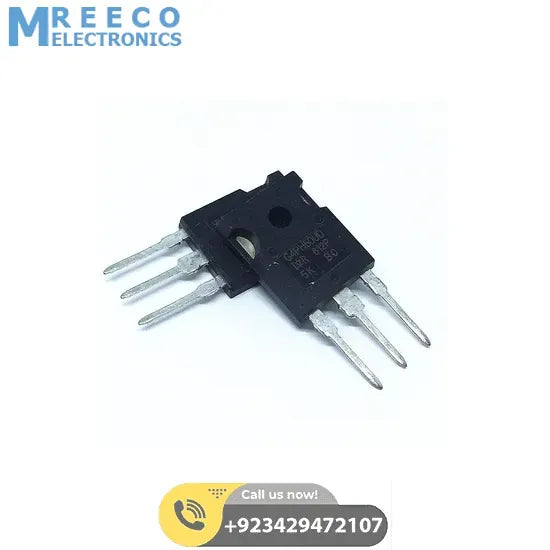

Features VCES = 1200V VCE(on) typ. = 2.78V @VGE = 15V, IC = 24A UltraFast CoPack IGBT • UltraFast: Optimized for high operating frequencies up to 40 kHz in hard switching, >200 kHz in resonant mode • New IGBT design provides tighter parameter distribution and higher efficiency than previous generations • IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations • Industry standard TO-247AC package Benefits • Higher switching frequency capability than competitive IGBTs • Highest efficiency available • HEXFRED diodes optimized for performance with IGBT's . Minimized recovery characteristics require less/no snubbing
