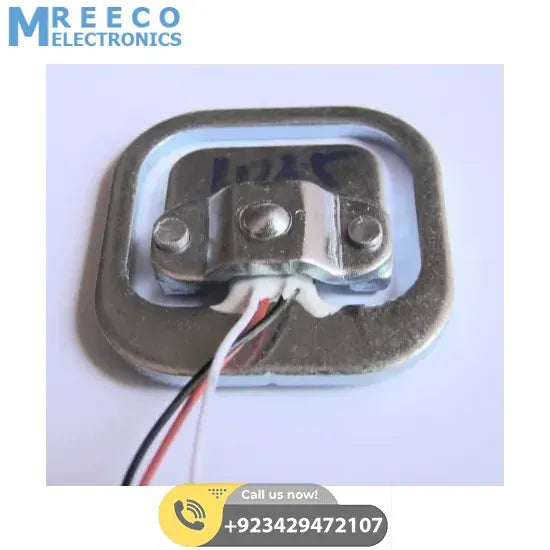

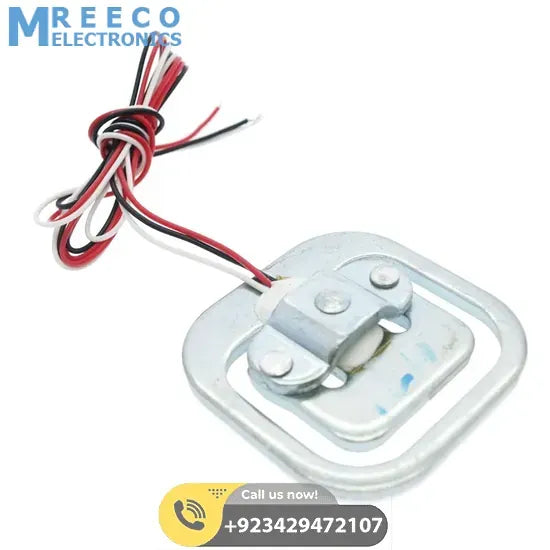

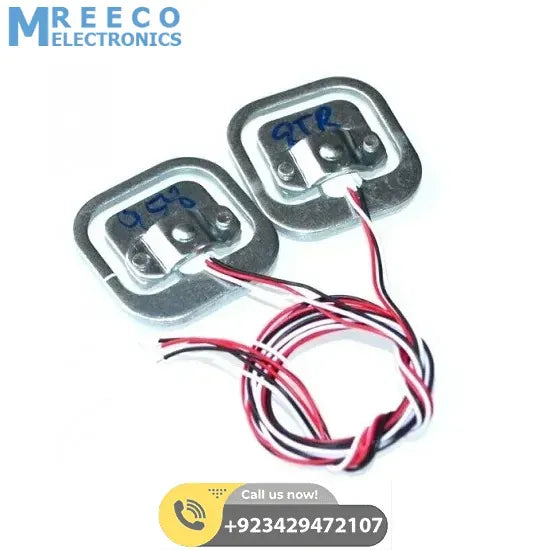

50kg Half Bridge Load Cell Sensor

This is a half-bridge load sensor, which is widely used in weight scales. When the half-bridge is being stretched, it sends signal via the red signal wire. You can use multiple load sensors simultaneously to increase the capacity range. Two sensors full-bridge measurements: 50kgx2=100kg Four sensor full-bridge measurements: 50kgx4=200kg Parallel use to add additional capacity

Specifications:

1. Capacity (kg): 50
2. Comprehensive error (%F.S): 0.10
3. Output sensitivity (mv/V): 1.0 0.15%
4. Nonlinearity (%F.S): 0.05
5. Repeatability (%F.S): 0.05
6. Hysteresis (%F.S): 0.05
7. Creep (%F.S/3min): 0.1
8. Zero Drift (%F.S/1min): 0.1
9. Temp. Effect on zero (%F.S/10C): 0.3
10. Temp. Effect on Output (%F.S/10 C): 0.1
11. Zero Output (mv/V): 0.3
12. Input Resistance (): 1000 10
13. Output Resistance (): 100010
14. Insulation Resistance (M): 2000 (100VDC)
15. Excitation Voltage (V): 10
16. Operation Temp. Range (C): -10~ 50
17. Overload Capacity (%F.S): 150
18. Method of connecting wire: Red= Sig ; White= Exc ; Black= Exc
19. Dimension (mm): 34*34*8

Package includes:

1xHalf bridge Load Cell Sensor
