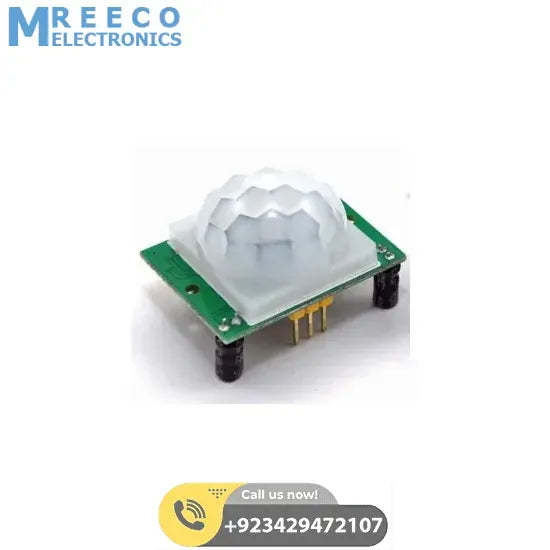

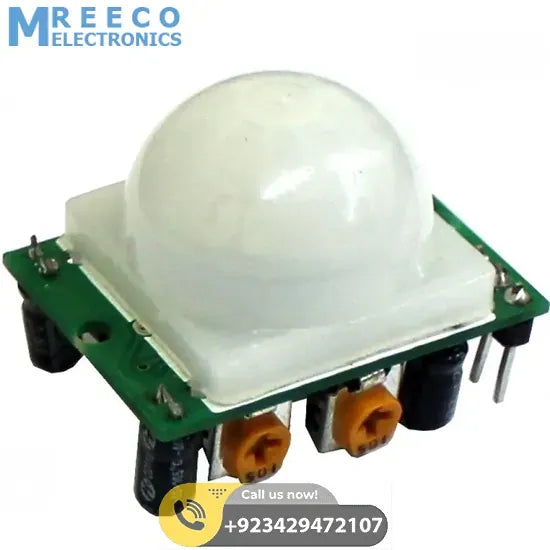

HC-SR501 PIR Motion Sensor Module Hw-416-b

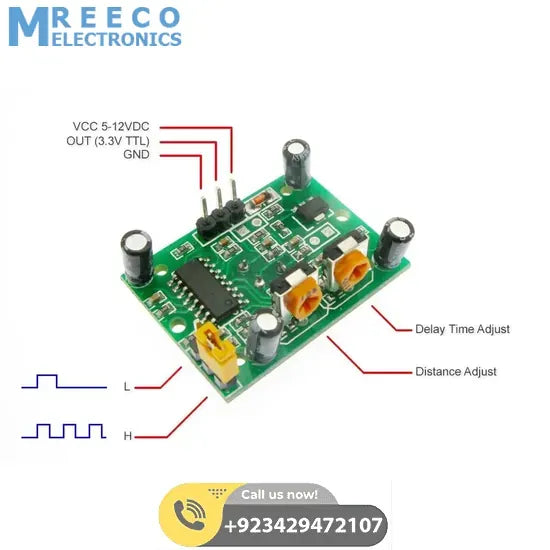

HC-SR501 PIR motion detector reacts to changes in infrared radiation(emitted by objects with increased temperature compared to its surroundings).Movement detection is based upon a really accurate temperature level measurement. Any type of change in temperature level to a greater temperature is considered activity. The primary elements of the PIR sensing unit are the pyroelement (infrared detector) and the Fresnel lens or mirror. The used sensor has a flexible level of level of sensitivity and delay. Object detection is signaled electronically - high condition at the output.

Perfect for designing warning systems, alarms,robotics,etc.

Features of the HC-SR501 PIR Motion Sensor:

• This type of sensor is used to detect objects and people in various types of rooms as part of lighting and alarm systems.
• The wide range of supply voltage 5-20V allows for increased usability of this sensor
• Detection of any object is signaled digitally through the high state.
• It is possible to connect the sensor to a set of any commissioning set,such as Raspberry Pi or the more popular Arduino.
• Conclusions: goldpin connectors 2.45mm

Technical data of HC-SR501 PIR Motion Detector:

• Power supply: 5 - 20V
• Approximate current consumption: 50 uA
• Sensitivity: up to 7m
• Viewing angle: up to 100 °
• working temperature -15 * C - 70 * C
• dimensions 33x25x25mm
  • Times diameter: 23 mm
  • The height of the canopy: 18 mm
  • Total height: 30 mm (with elements mounted at the bottom of the plate)
• Digital output:
  • High status - object detected
  • Low status - no object

Package Includes :

1 x PIR Motion Sensor Detector Module HC-SR501.
