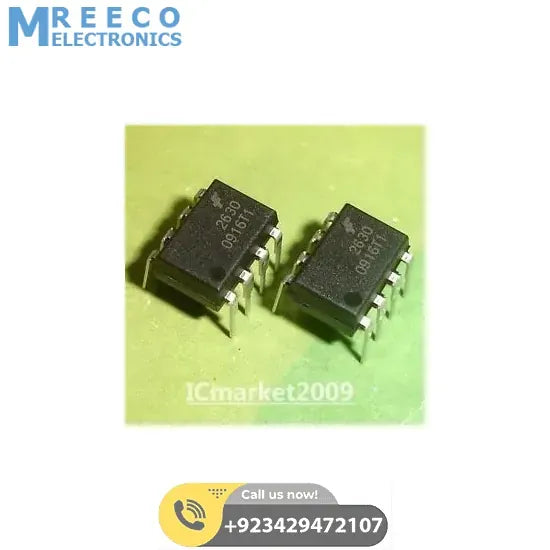

HCPL2630 2630 Optocoupler

Applications

• Isolated Line Receiver
• Computer-Peripheral Interfaces
• Microprocessor System Interfaces
• Digital Isolation for A/D, D/A Conversion
• Switching Power Supply
• Instrument Input/Output Isolation
• Ground Loop Elimination
• Pulse Transformer Replacement

Features

• High Speed: 10 MBd Typical
• LSTTL/TTL Compatible
• Low Input Current Capability: 5mA
• Guaranteed ac and dc Performance over Temperature: -40oC to 85oC
• Available in 8-Pin DIP, SOIC-8, Widebody Packages
• Strobable Output (Single Channel Products only)
• Safety Approval:

UL Recognized – 3750 V rms for 1 minute and 5000 V rms for 1 Minute (Option 020 only) per UL1577 CSA Approved?

• Options available are:

020 = 5000 V rms/1 minute UL Rating Option 300 = Gull Wing Surface Mount Option 500 = Tape and Reel Packaging Option XXXE = Lead Free Option
